Rosemount Oxymitter 5000 - Page 24

Hazardous Area Oxymitter 5000
1-10
Instruction Manual
IM-106-350C, Rev 2.2
July 2008

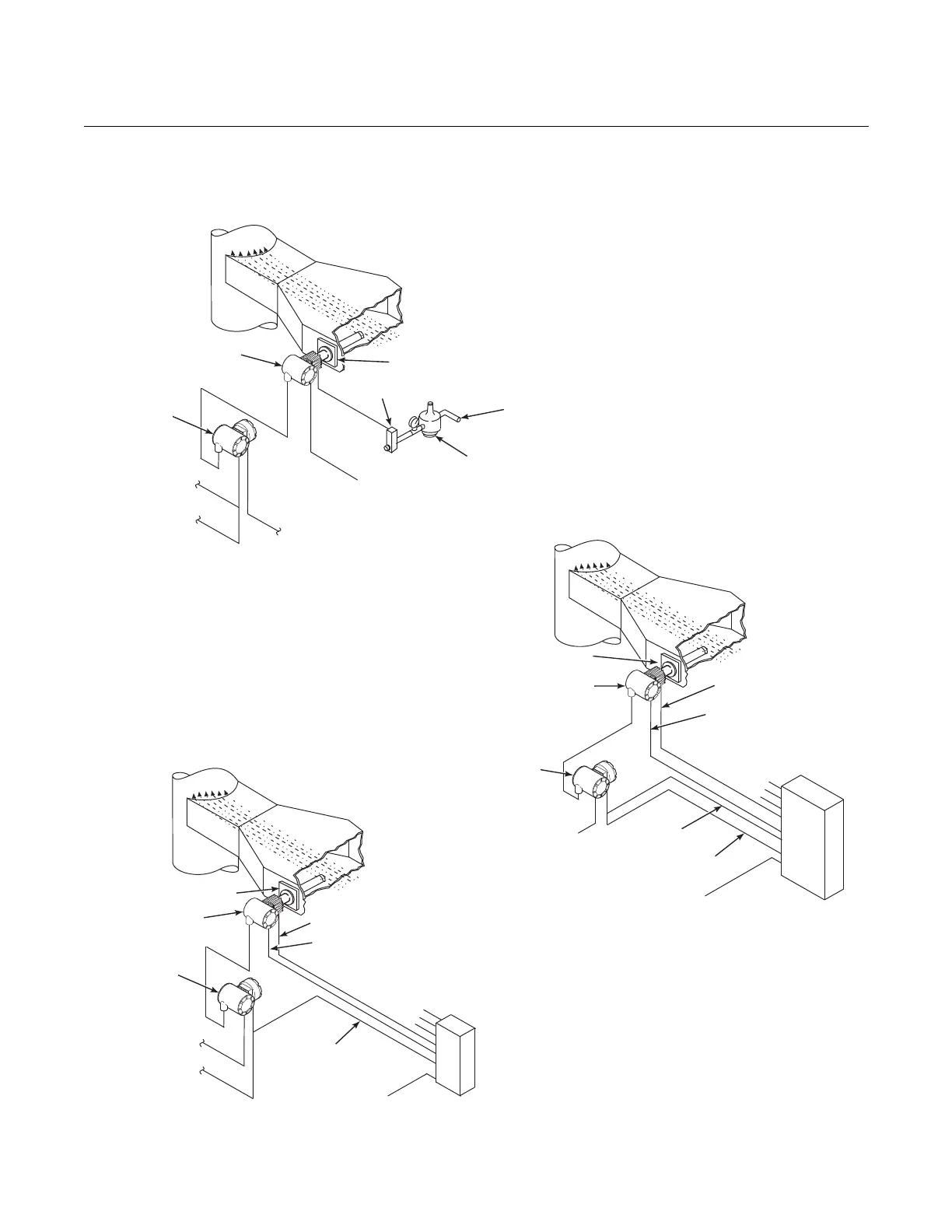

Figure 1-7. Typical System
Installation – Oxymitter 5000
with Remote Electronics
Duct
Stack
Gases
Calibration
Gas
Adapter Plate
Line
Voltage
Logic I/O
Instrument
Air Supply
(Reference Air)
Pressure
Regulator
Flowmeter
STANDARD
Oxymitter 5000
Oxymitter 5000
FieldbusDigital
Signal
IMPS 4000
Reference Air
Calibration Gas
Adapter Plate
Stack
Duct
Gases
Calibration Gas 1
Calibration Gas 2
Inst. Air Supply
Line Voltage
FieldbusDigitalSignal
Remote
Electronics
Remote
Electronics
Logic I/O
Line Voltage
*Note: TheIMPS4000orSPS4001Bmust
beinstalledinanon-hazardous,
explosive-freeenvironment.
SPS 4001B* SINGLE PROBE
AUTOCALIBRATION OPTION
(WITH REFERENCE AIR OPTION)
Oxymitter
5000
SPS 4001B
Logic I/O
Calibration Gas
Adapter Plate
Stack
Duct
Gases
Calibration Gas 1
Calibration Gas 2
Inst. Air Supply
Remote
Electronics
Line Voltage
Line Voltage
Reference Air
FieldbusDigital
Signal
38740070
IMPS 4000*
MULTIPROBE
AUTOCALIBRATION
OPTION
