Installation Guide GM Series

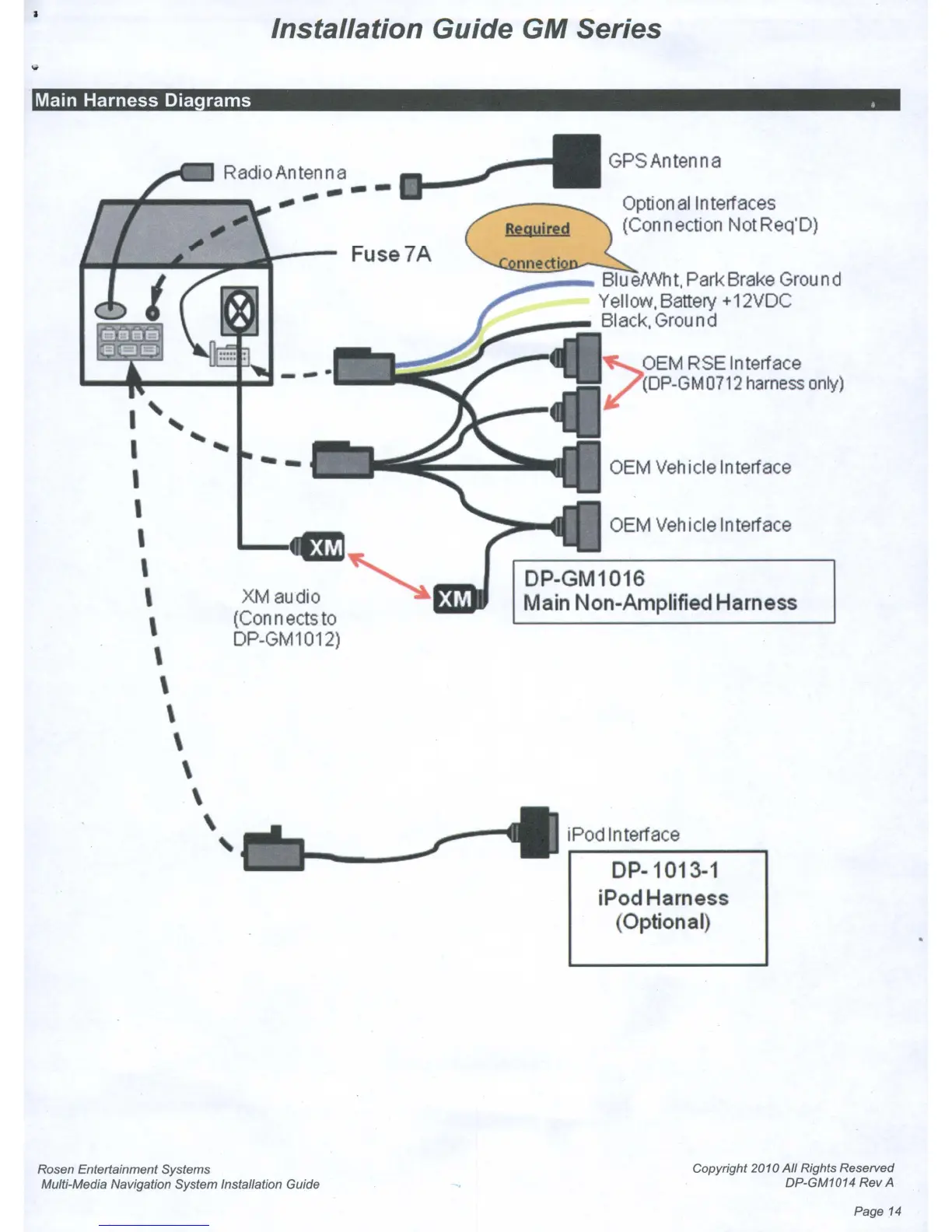

Main Harness Diagrams .
Optional Interfaces
(Connection NotReq'D)
GPSAntenna
OEM Veh icle Interface
OEM Vehicle Interface
~OEM RSE Interface
It' (DP-GM0712 harness only)
DP-GM1016
Main Non-Amplified Harness
~ BlueNVht, Park Brake Ground
Yellow, Battery +12VDC
____ -~ Black,Ground
Fuse7A
XM audio
(Con n ects to
DP-GM1012)
RadioAntenna
---
",.""
I',
I '--.
I
I
,
,
,
\
\
\
\
\
\
\
iPod Interface
DP-1013-1
iPod Harness
(Optional)
Rosen Entertainment Systems
Multi-Media Navigation System Installation Guide
Copyright 2010
All Rights Reserved
DP-GM1014
Rev A
Page 14
