Platinum Plus
5
Introduction
The Platinum Plus is a full-featured Poultry House Control. The following
sections introduce the primary features and operator screens.

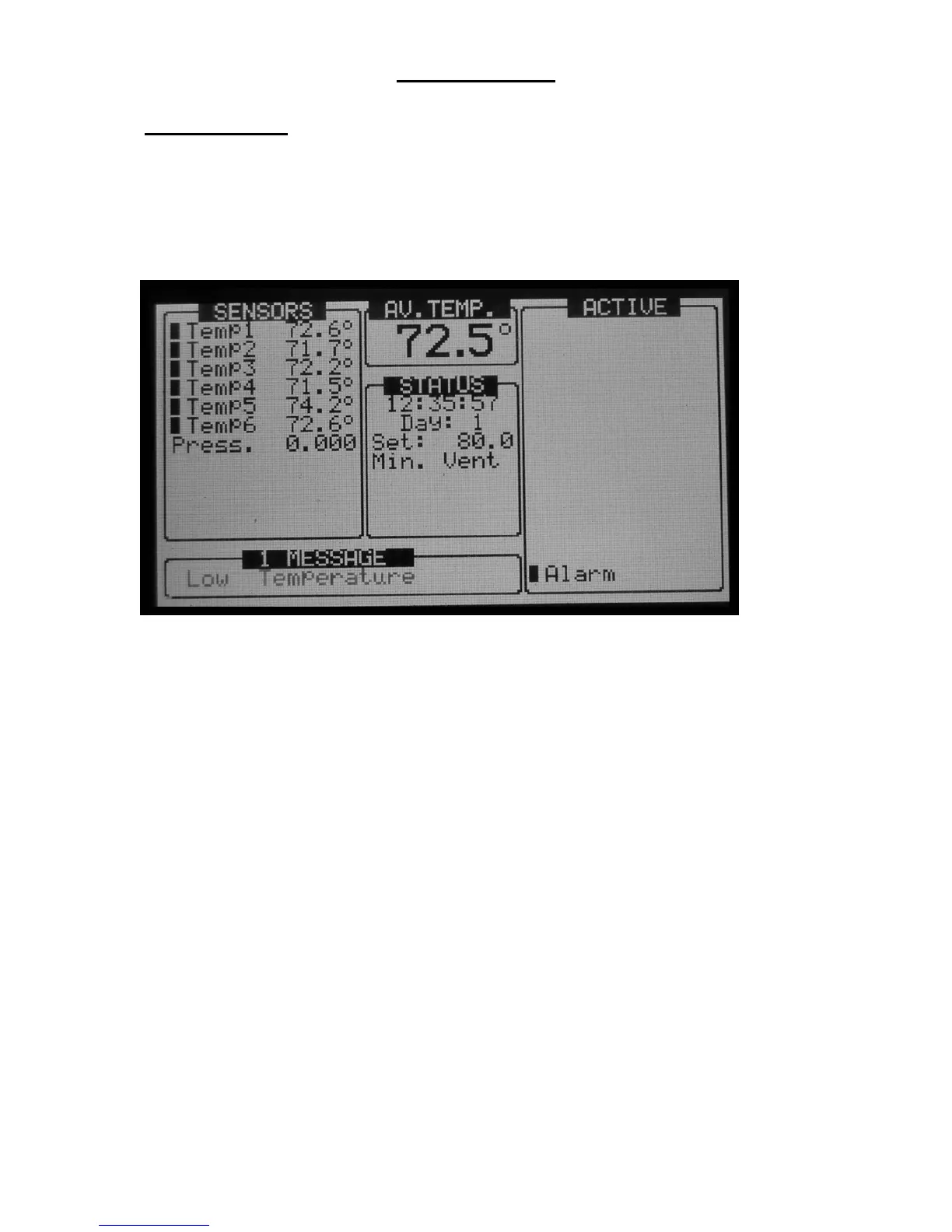

Main Screen
The main screen has five parts.
1. The upper left part, Sensors, shows the individual sensor readings.
Those marked with dark squares form the current average
temperature.
2. The bottom left section, Messages, shows important messages. The
title bar shows the number of important messages, and if there are
several messages they each appear in turn.
3. The right section, Active, shows the output list. The filled black
boxes indicate active outputs. The Platinum Plus also tells you the
position of inlets and curtains, as well as the number of heaters or
fans that are on.
4. The center section, Status, gives important general information
such as the time and ventilation mode.
5. The upper center section, Average Temperature, reports the current
average temperature.
