1. Administration
ROS® v3.11User Guide
35
RMC30
1.13.3. Radius Server Configuration

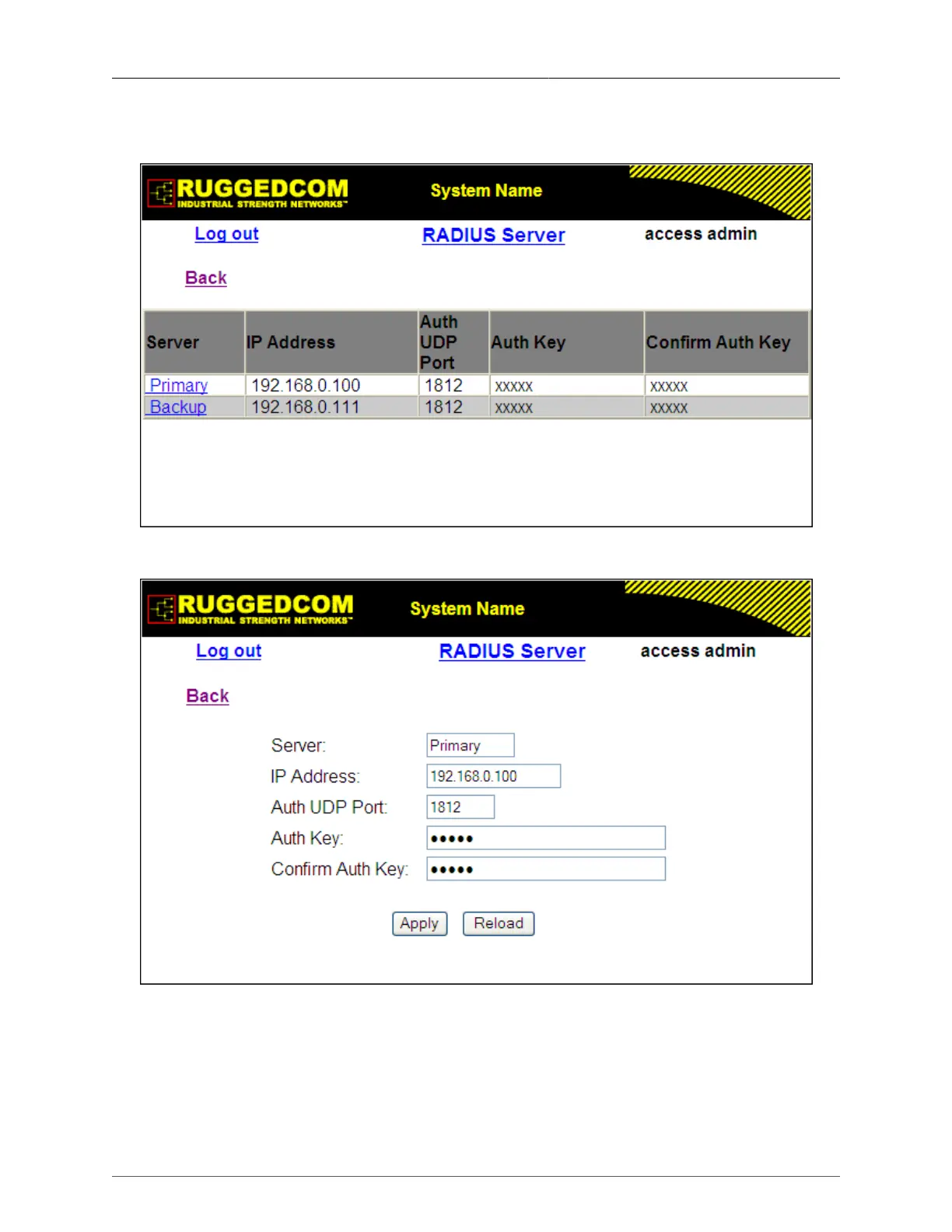

Figure 1.21. RADIUS Server Summary
Figure 1.22. RADIUS Server Form
Server
Synopsis: Any 8 characters
Default: Primary
This field tells whether this configuration is for a primary or a backup server
34
36
