4. Diagnostics
ROS® v3.11User Guide 92 RMC30

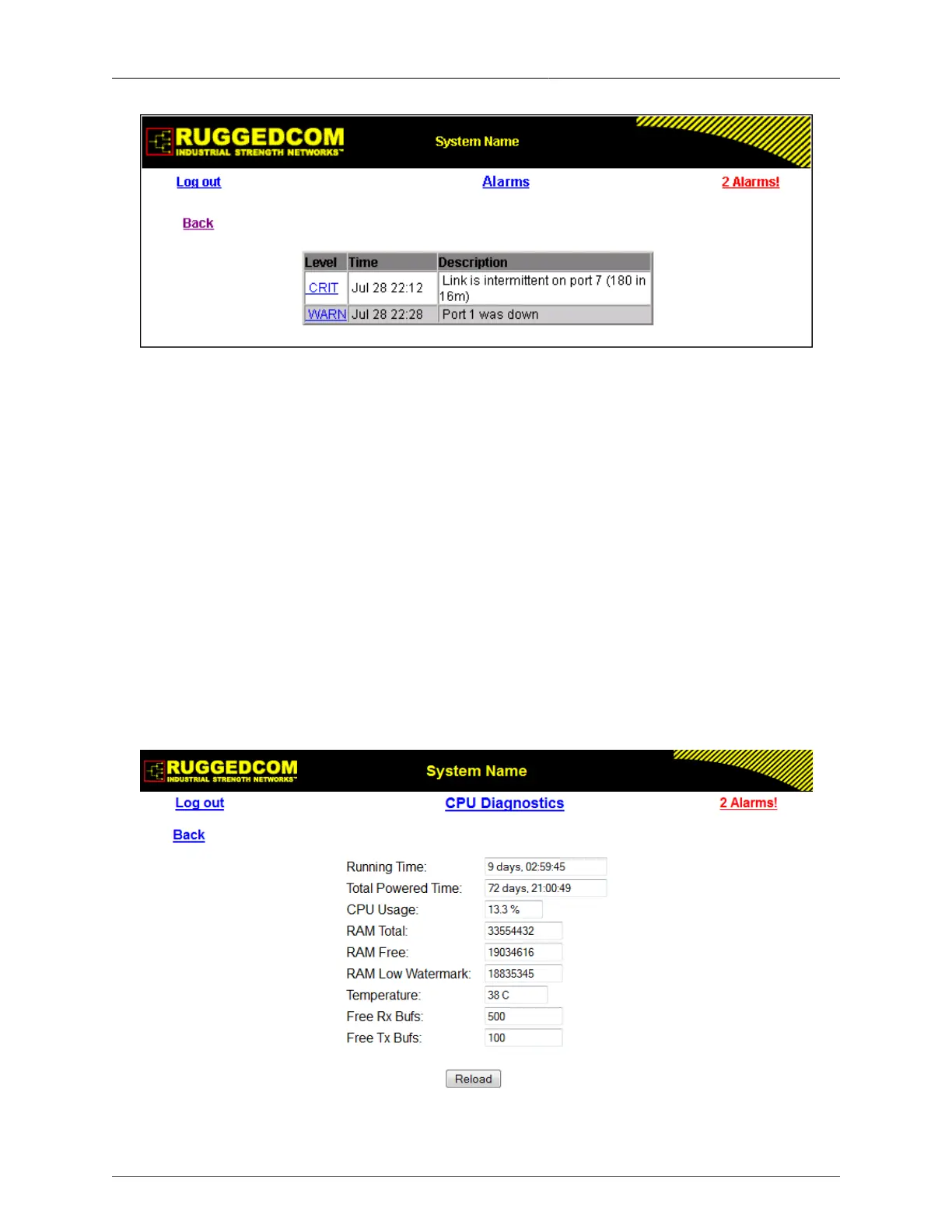

Figure 4.4. Alarm Table
Level
Synopsis: { EMRG, ALRT, CRIT, ERRO, WARN, NOTE, INFO, DEBG }
Severity level of alarm - refer to Level, above, for a detailed breakdown of the levels.
Time
Synopsis: MMM DD HH:MM
Time of first occurrence of the alarm.
Description
Synopsis: Any 127 characters
Description of the alarm; gives details about the frequency of the alarm if it has occurred
again since the last clear.
Alarms can be cleared from the Clear Alarms option.
4.2. Viewing CPU Diagnostics
Figure 4.5. CPU Diagnostics Form
