2. Serial Protocols
ROS® v3.11User Guide 60 RMC30

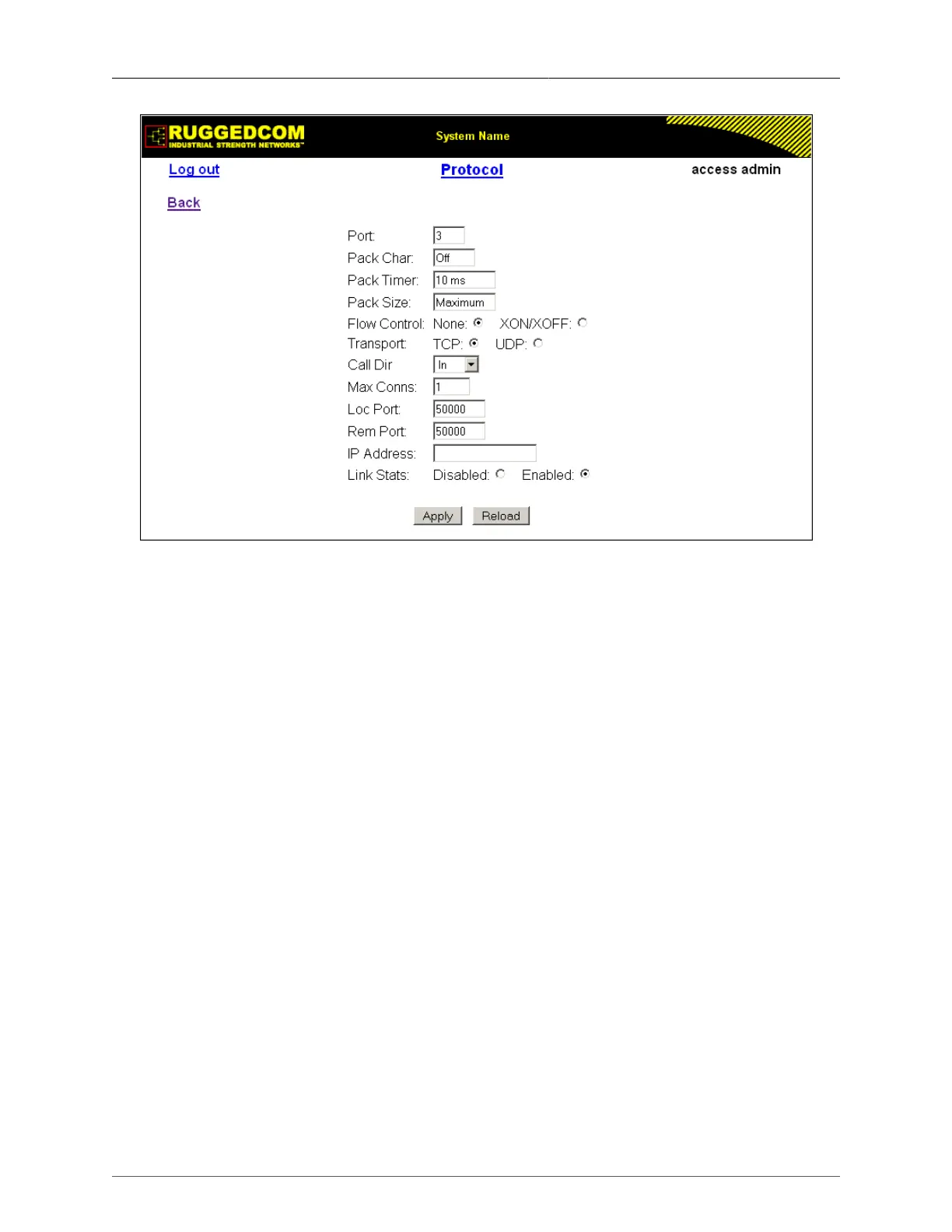

Figure 2.13. Raw Socket Form
Port
Synopsis: 1 to maximum port number
Default: 1
The port number as seen on the front plate silkscreen of the switch.
Pack Char
Synopsis: 0 to 255 or { Off }
Default: Off
The character that can be used to force forwarding of accumulated data to the network.
If a packetization character is not configured, accumulated data will be forwarded based
upon the packetization timeout (Pack Timer) parameter.
Pack Timer
Synopsis: 3 to 1000
Default: 10 ms
The delay from the last received character until when data is forwarded.
Pack Size
Synopsis: 64 to 1400 or { Maximum }
Default: Maximum
The maximum number of bytes received from the serial port to be forwarded.
Flow Control
Synopsis: { None, XON/XOFF }
Default: None
The Flowcontrol setting for serial port.
