2. Serial Protocols
ROS® v3.11User Guide 81 RMC30
Protocol
Synopsis: { None, RawSocket, ModbusServer, ModbusClient, DNP,
WIN, TIN, MicroLok }
The serial protocol supported by devices that create this link.
Local Address
Synopsis: Any 27 characters
The address of the device connected to the serial port on this device.
Remote Address
Synopsis: Any 35 characters
The address of the device connected to the remote host's serial port.
Rx Local
Synopsis: 0 to 4294967295
The number of packets received from the local address that were forwarded to the remote
side.
Rx Remote
Synopsis: 0 to 4294967295
The number of packets received from the local address that were forwarded to the local
serial port.
Erroneous
Synopsis: 0 to 4294967295
The number of erroneous packets received from the remote address.
2.4.2. Connection Statistics
This table presents statistics for all active TCP connections on serial protocols. The statistics
are updated once every second.

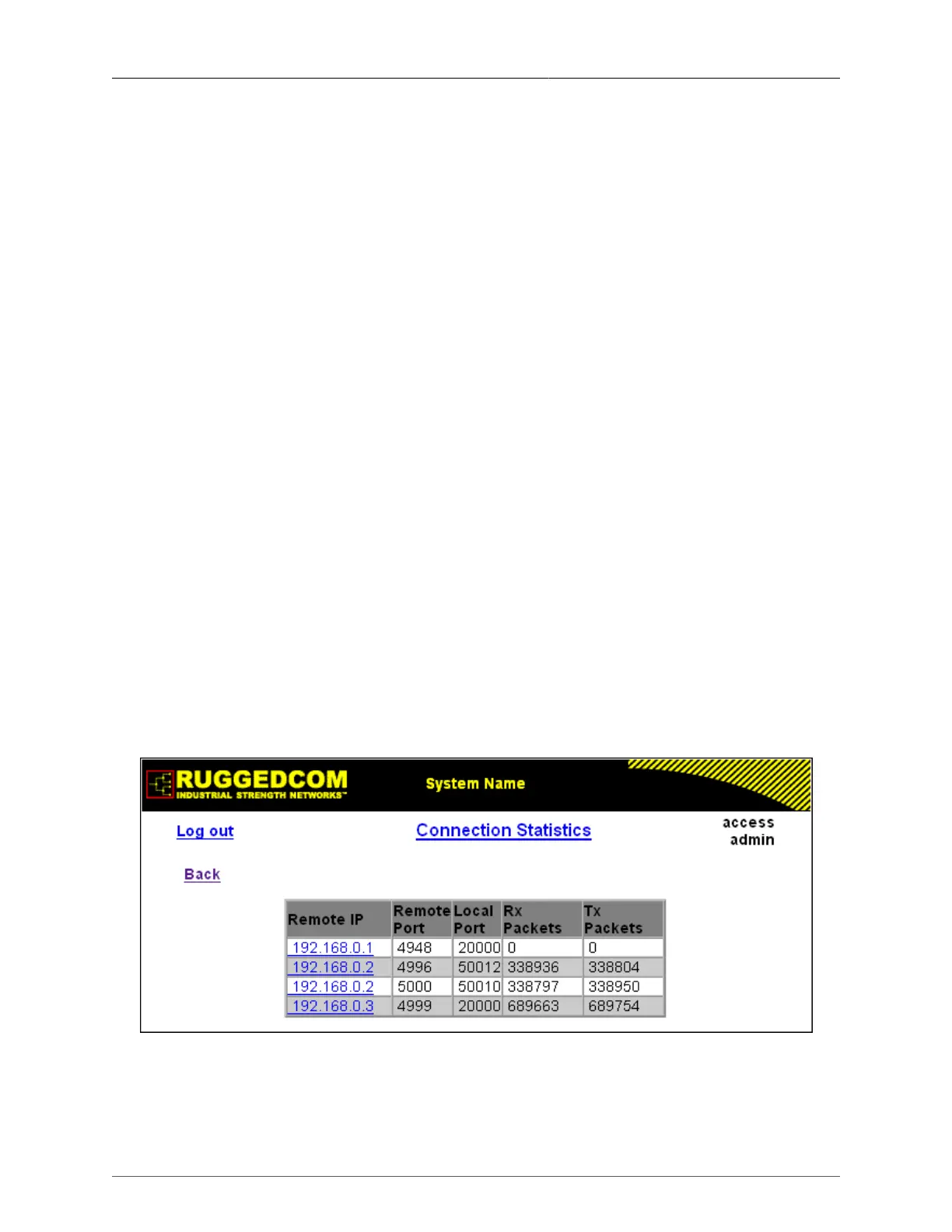

Figure 2.35. Connection Statistics Table
Remote IP
Synopsis: ###.###.###.### where ### ranges from 0 to 255
