2. Serial Protocols
ROS® v3.11User Guide 74 RMC30

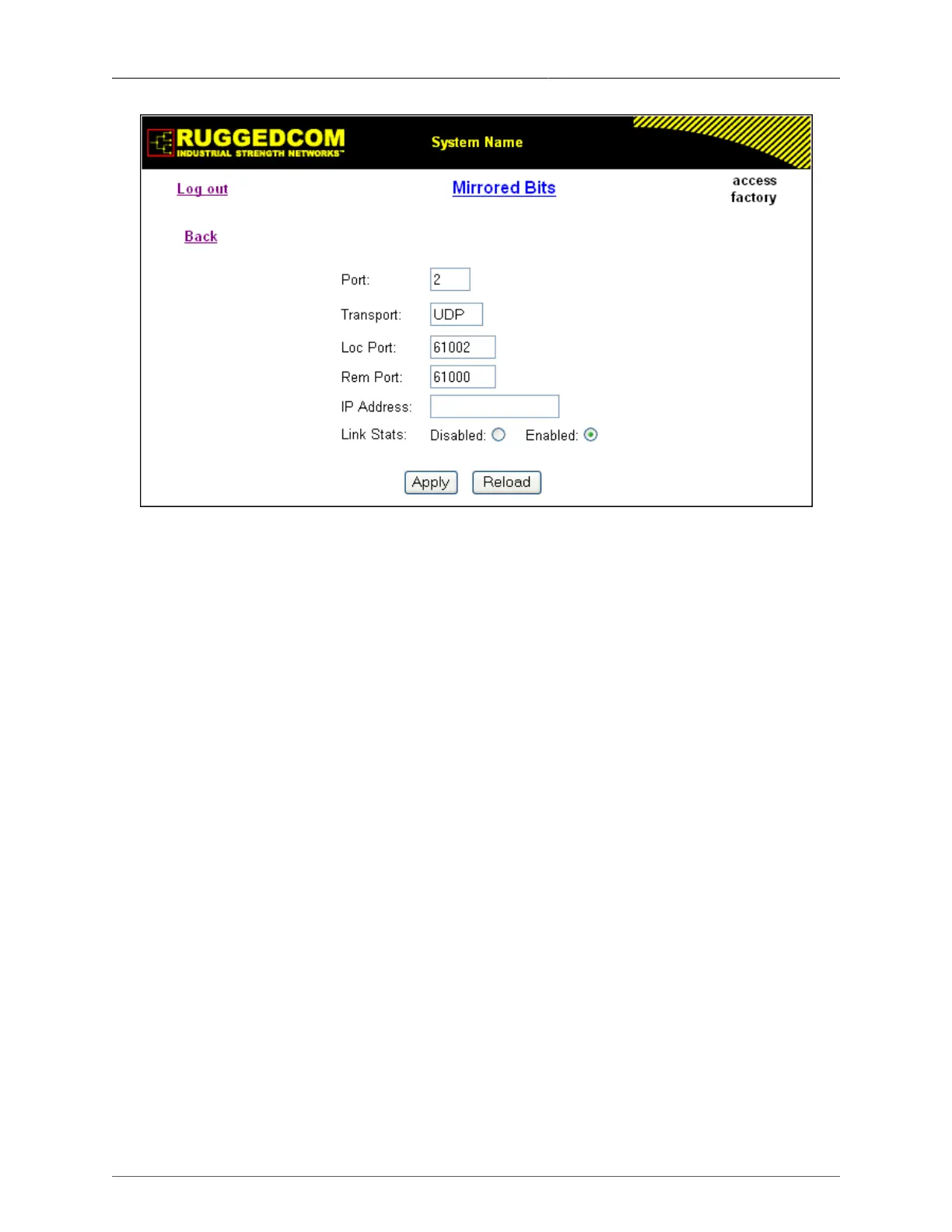

Figure 2.27. Mirrored Bits Form
Port
Synopsis: 1 to 4
Default: 1
The port number as seen on the front plate silkscreen of the switch.
Transport
Synopsis: { TCP, UDP }
Default: UDP
The network transport used to transport Mirrored Bits protocol data over an IP network.
Loc Port
Synopsis: 1024 to 65535
Default: 61001
The local IP port to use when listening for an incoming connection or UDP data.
Rem Port
Synopsis: 1 to 65535
Default: 61000
The remote TCP port to use when placing an outgoing connection.
IP Address
Synopsis: ###.###.###.### where ### ranges from 0 to 255 or
{ <EMPTY STRING> }
Default:
For an outgoing TCP connection (client) and UDP transport, this is the remote IP address
to communicate with.
For an incoming TCP connection (server), the local interface IP address on which to
listen for connection requests. An empty string implies the default: the IP address of the
management interface.
