RuggedRouter
®
User Guide
Select the Show Public Keys icon to display the server's public key.
Select the IPsec Status icon to display information about the server's capabilities and
any current connections.
After a VPN connection is created this menu will include a “Start Connection” button
that can start or restart VPN connections. This button is shown in the next view of the
VPN Configuration menu.
The “Apply Configuration” button restarts the server to activate any configuration
changes that have been made, restarting VPN connections.
Server Configuration
The Protocol Stack field configures whether route based or policy based VPNs are
used. Following the link will take the user to menu that requests a reconfirmation and
then changes the style of VPN.
The Network interfaces for IPsec table configures the association between ipsec
interfaces and the real interfaces upon which they become available.
If the Default field is selected, Openswan will use its current default (Default route
interface at the time of writing) to associate the named ipsec interface with.
144 RuggedCom

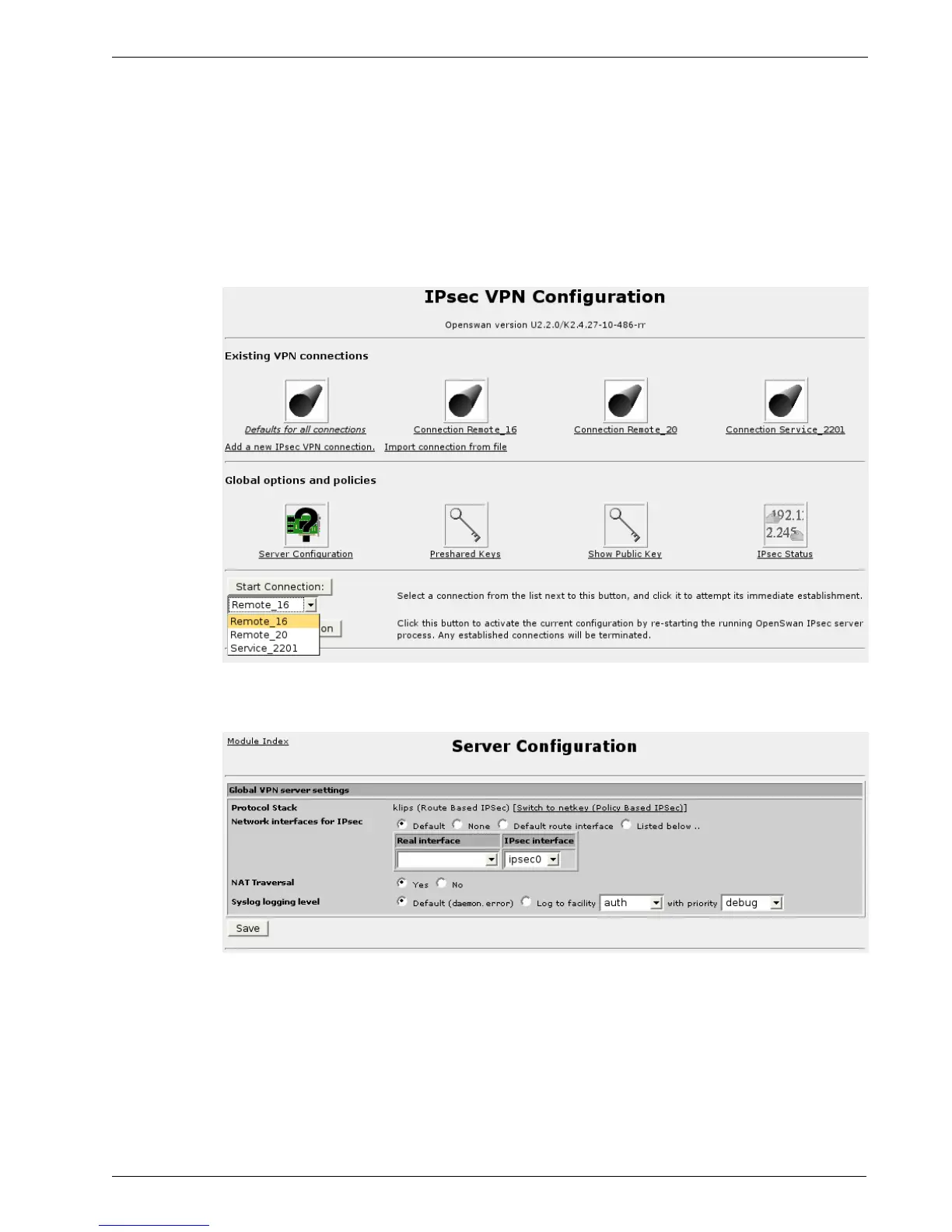

Figure 121: IPsec VPN Configuration After Connections Have Been Created
Figure 122: Server Configuration
