Chapter 9 - Configuring Frame Relay/PPP And DDS
Naming Of Logical Interfaces
Webmin names the logical interfaces for you (but allows you to provide a
description). All interfaces start with a “w” to identify them as wan interfaces,
followed by the interface number. The next part of the identifier is either “ppp” or “fr”
and the frame relay DLCI number.
Editing A Logical Interface (Frame Relay)

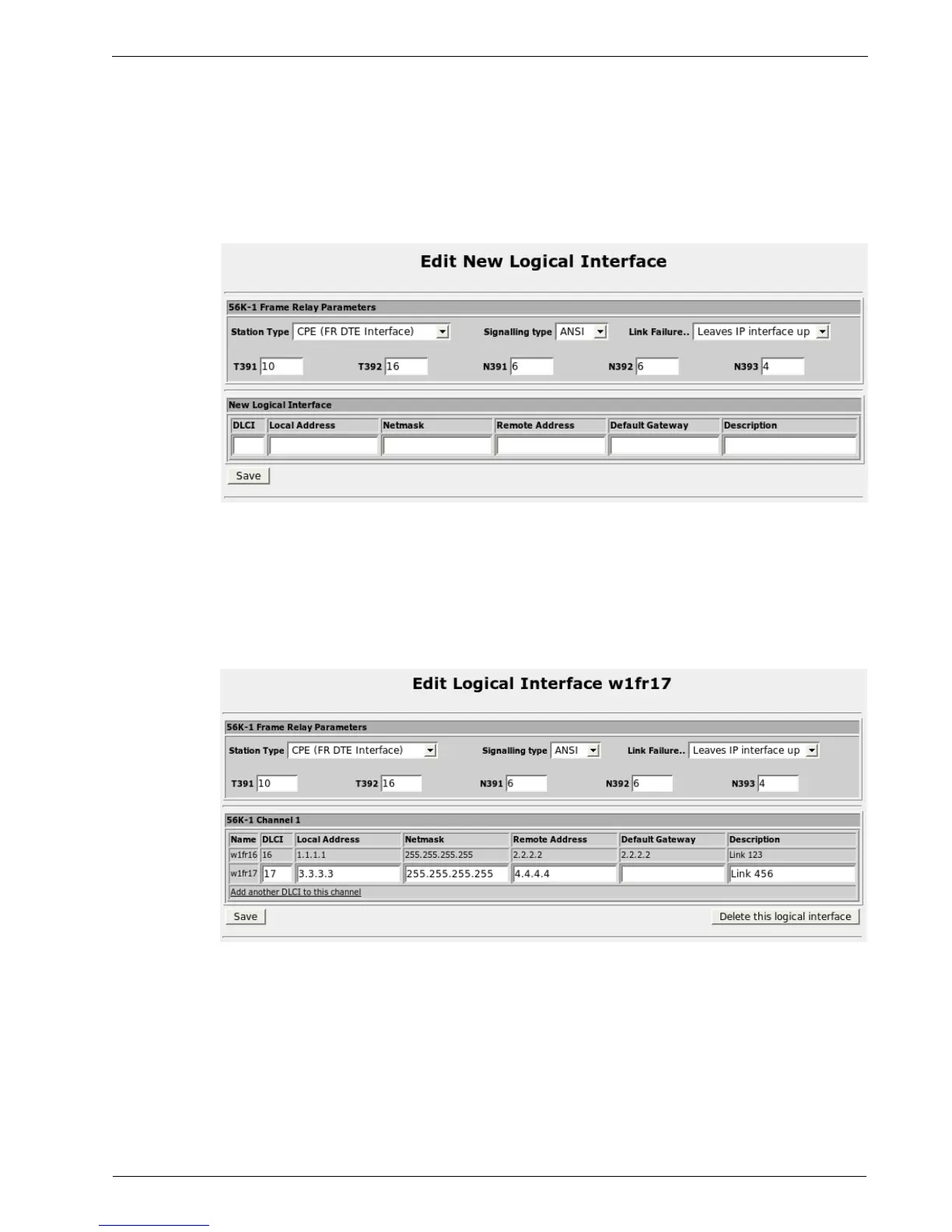

Figure 76: Edit Logical Interface (Frame Relay), single DLCI
This menu allows you to display and configure logical interface fields for Frame
Relay. The menu is composed of two tables. The first table provides link based
configuration, which affect all DLCIs. The second table provides configuration
parameters for individual DLCIs.
After the first DLCI has been configured, revisiting that DLCI will display a menu
that allows additional DLCIs to be configured.
Figure 77: Edit Logical Interface (Frame Relay), multiple DLCIs
The fields and buttons in this menu are the same as those described in the Editing A
Logical Interface (Frame Relay) section of the Configuring Frame Relay/PPP
And T1/E1 chapter.
RuggedCom 85
