RuggedRouter
®
User Guide
GRE Configuration
GRE Main Menu

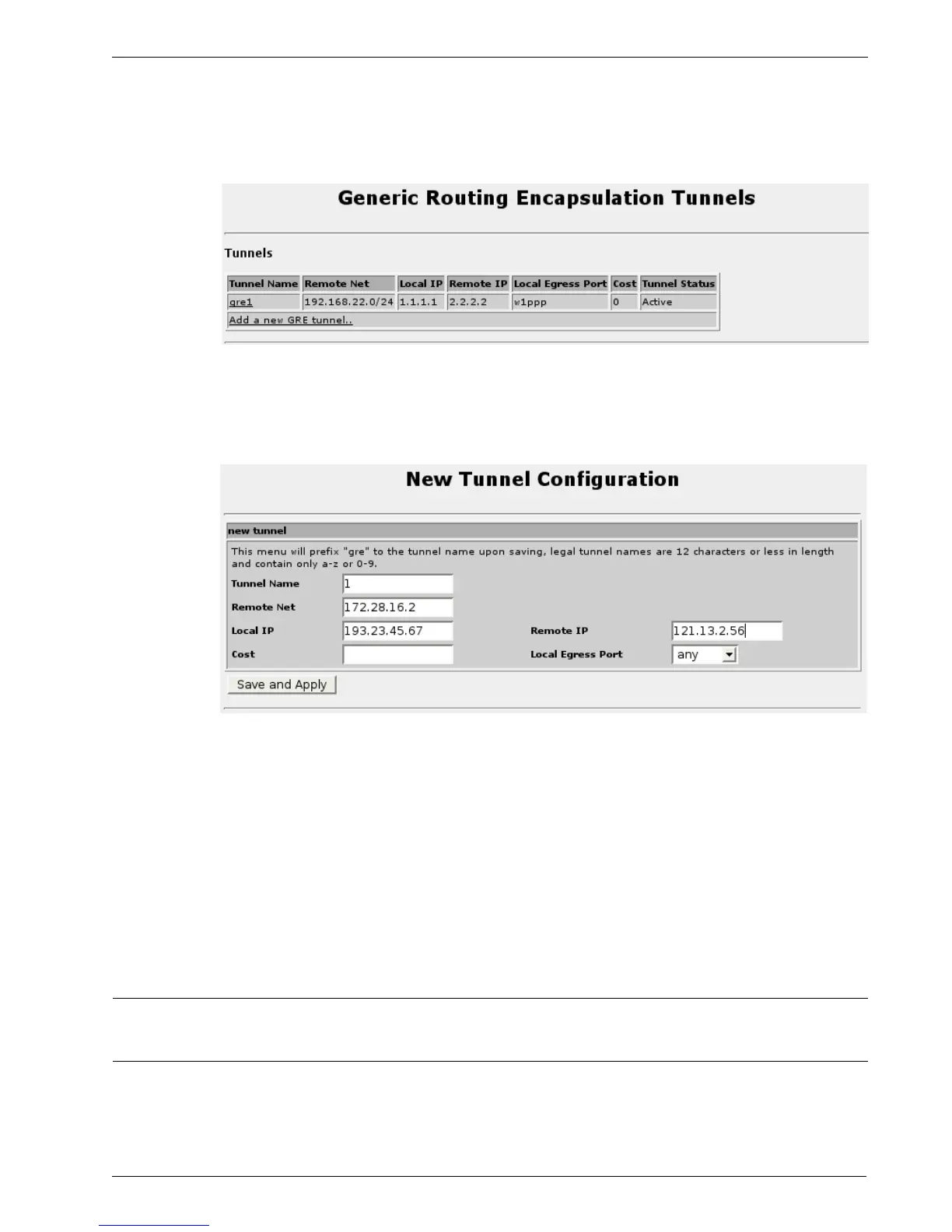

Figure 164: GRE Main Menu
This menu displays configured GRE tunnels. The tunnel status will be “active” if the
tunnel was successfully created.
GRE Configuration Menu
Figure 165: GRE Tunnel Configuration Menu
This menu allows you to add or edit a tunnel.
The Tunnel Name field will be presented if the tunnel is being created. The tunnel
name is purely for informational purposes. A network routing device with this name
will be created. In order that the name not collide with those used by other interfaces,
it will be prefixed with “gre”.
The Remote Net field configures the target network whose traffic is forward through
the tunnel. It may be a individual IP address or subnetted IP address such as
192.168.0.0/24. The Remote Net must not used by another tunnel.
The Local IP field configures the IP address of the local end of the tunnel.
The Remote IP field configures the IP address of the local remote of the tunnel.
Note: Each tunnel must have a unique combination of local and remote addresses, or
it will not be activated.
The Cost field configures the routing cost associated with networking routing that
directs traffic through the tunnel. The cost will default to zero if left unset.
190 RuggedCom
