DH4 Installation Guide

p. 12

DH4 Operation

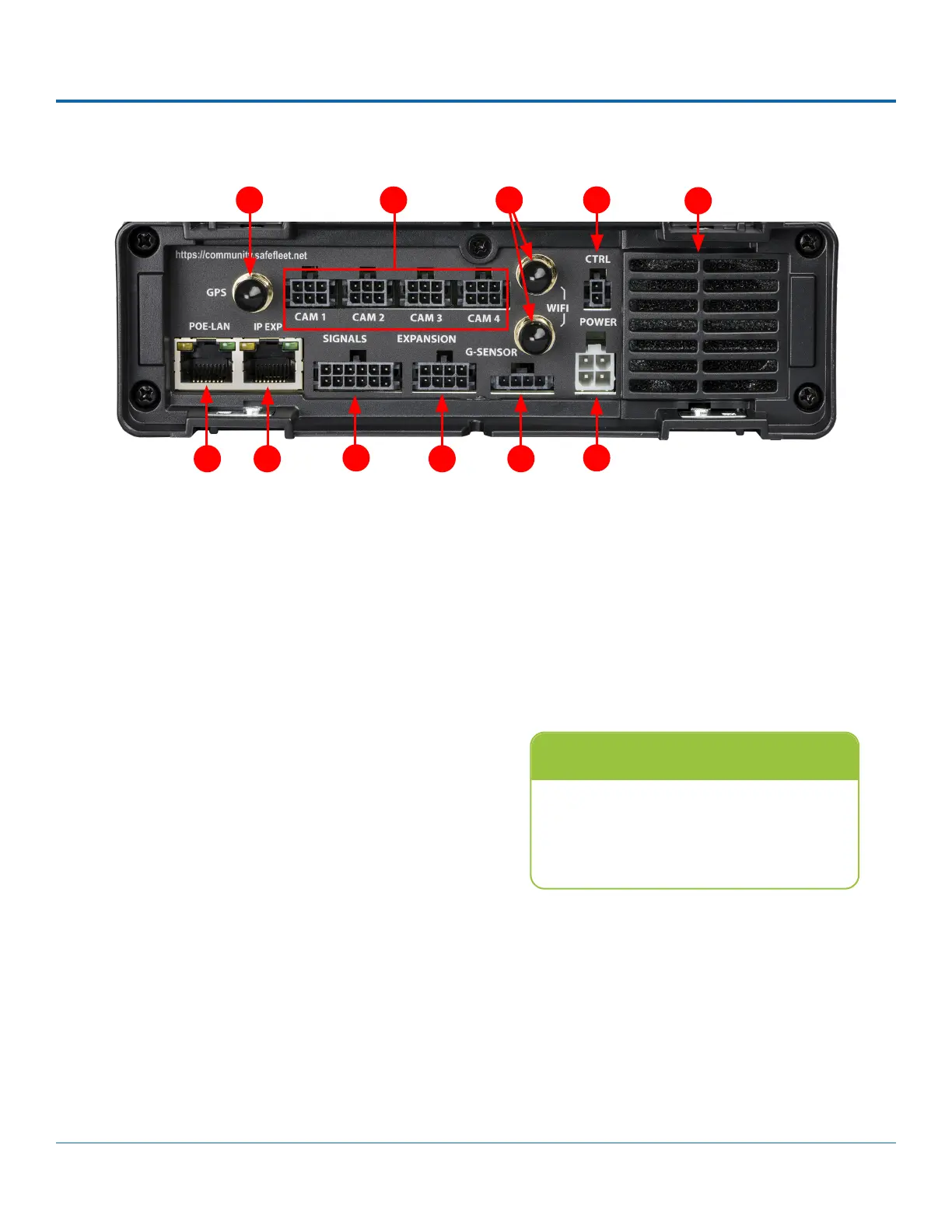

DVR Back Panel Features

1. GPS - SMA input connector for GPS antenna

2. CAM 1 to CAM 4 - input connectors (6-pin) for four

cameras

3. WIFI - SMA connectors for WIFI antenna

4. CTRL - control connector for Safe Fleet equipment

5. 

6. POWER - input for power harness

7. G-SENSOR - input for optional G-force sensor unit

8. EXPANSION - connector for communicating with

other devices

9. SIGNALS - connector for signal harness, with an

optional adapter for the RGY button

10. IP EXP - RJ-45 Ethernet LAN connector for a laptop or

other accessories

11. POE-LAN - dedicated Ethernet port for connectivity

with Smart-Reach Lite wireless bridge and other

equipment

 POE-LAN Port is 12-volt

In addition to the data transmitted, the POE

(Power Over Ethernet)-LAN port supplies

12 volts to power accessories such as the

Smart-Reach Lite wireless bridge.

1011
