DH4 Installation Guide
p. 5

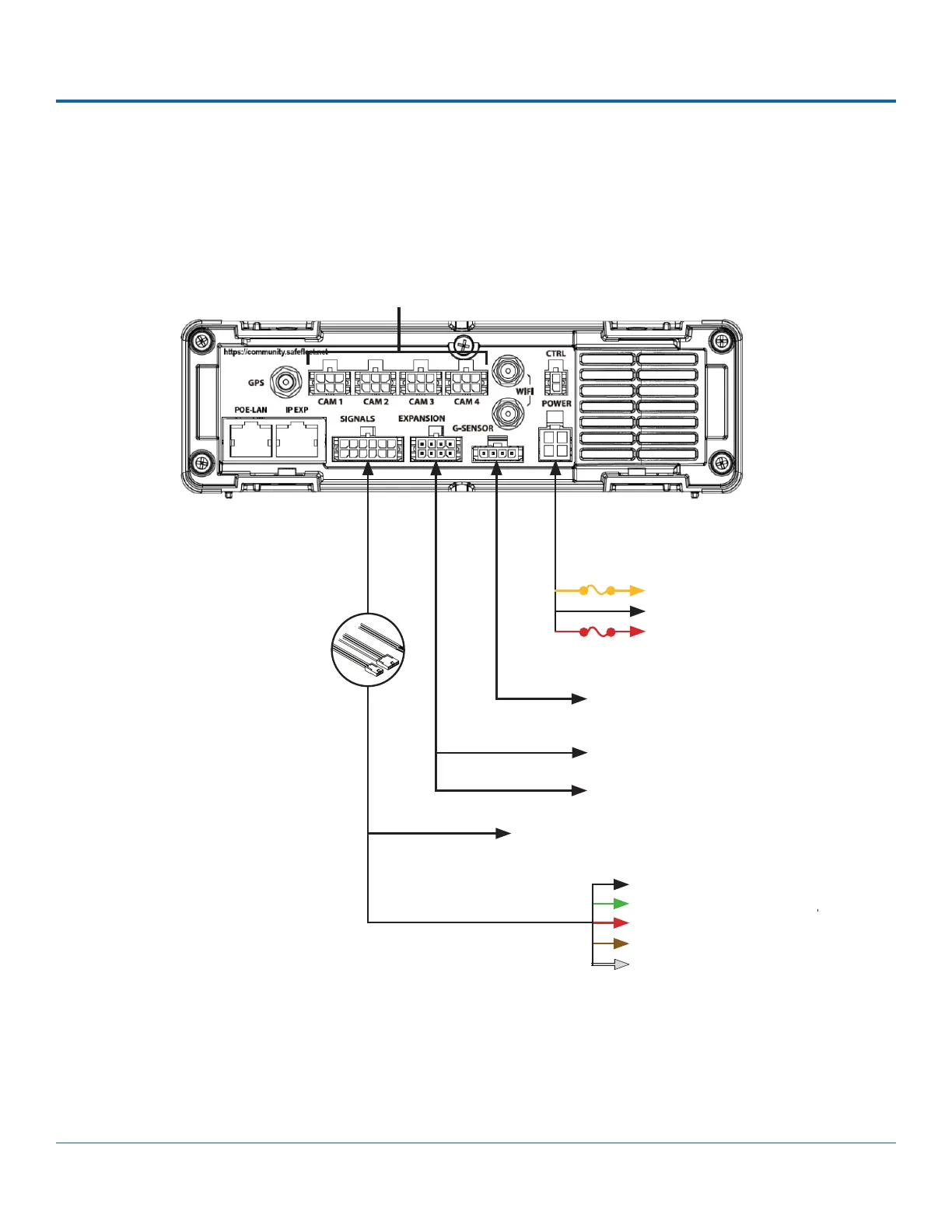

System Diagram
System Diagram
Power harness/fuse pkg.:
PH2X2MFJR
Harness WT2 supports
RGY button and extn.
harness pkg. HEDM20
20 ft./6.1m
power harness: 060-1104
20 ft./6.1m RGY extn.
harness: 060-1197
(optional): 065-1010
20 ft./6.1m
3 wires
1A
10A
POWER
Black - Battery Negative
Yellow - Vehicle Ign +12V
Red - Vehicle +12V
4 Standard Resolution and/or
High Denition Cameras
Adapter
Harness*
3
5 wires
RGY BUTTON
1x5 Microt
SIGNALS
Black - Left Turn
Green - Stop
Red - Brake Signal
Brown - Warning
White - Right Turn
G-SENSOR
(optional): 
Rear Vision System (Optional)
Reserved
2x3 Microt
1x4 Microt
Typical System Setup
