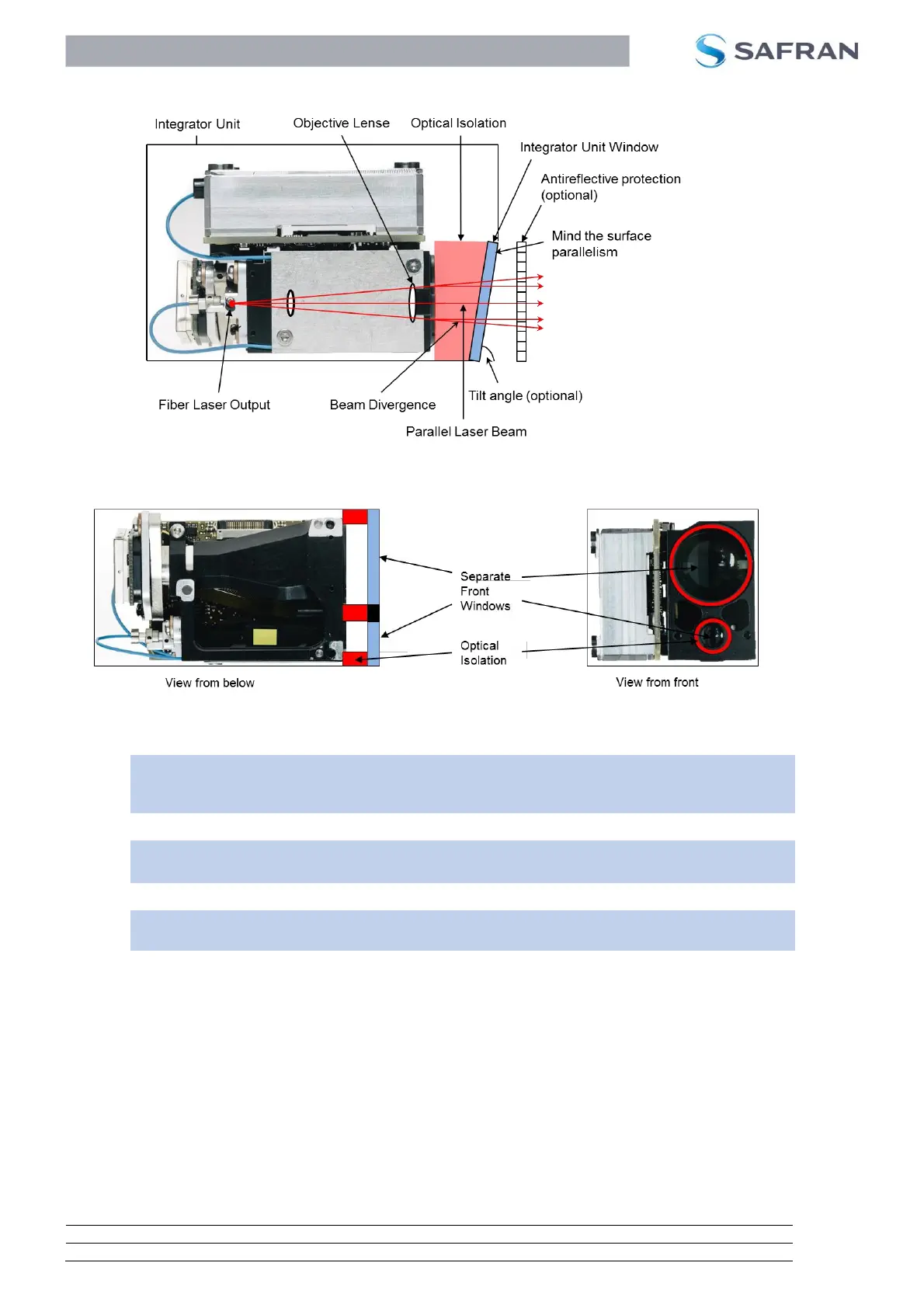

Figure 17: Tilted window (view from side)
Figure 18: Optical isolation of transmitter and receiver
NOTICE
It is strongly recommend to use a tilt angle of 5° - 10° on the front window respect to the LRF.
Doing so, prevents sunlight reflections from the front window to be seen by others.
NOTICE
The tilt angle influences LRF range performance, being 0° angle the optimal value.
NOTICE
If the LRF is equipped with a pointer, the tilt angle shall be used to avoid ghost images.
