LRF 6019 Integrator Manual
914928_TML_LRF6019_en_Version C
Confidential & Proprietary Safran Vectronix AG – All rights reserved
5 Hardware interface
5.1 System connector
Power supply and communication between the LRF module and the host system is performed via the
system connector. The system connector is of the following type:
Samtec LSHM connector series are not gender specific so one can mate the same type of connectors.
Depending on the mating combination, the pin mapping varies. Details on the system connector and its
counterpart can be found in chapter 9.1 System connector reference design.

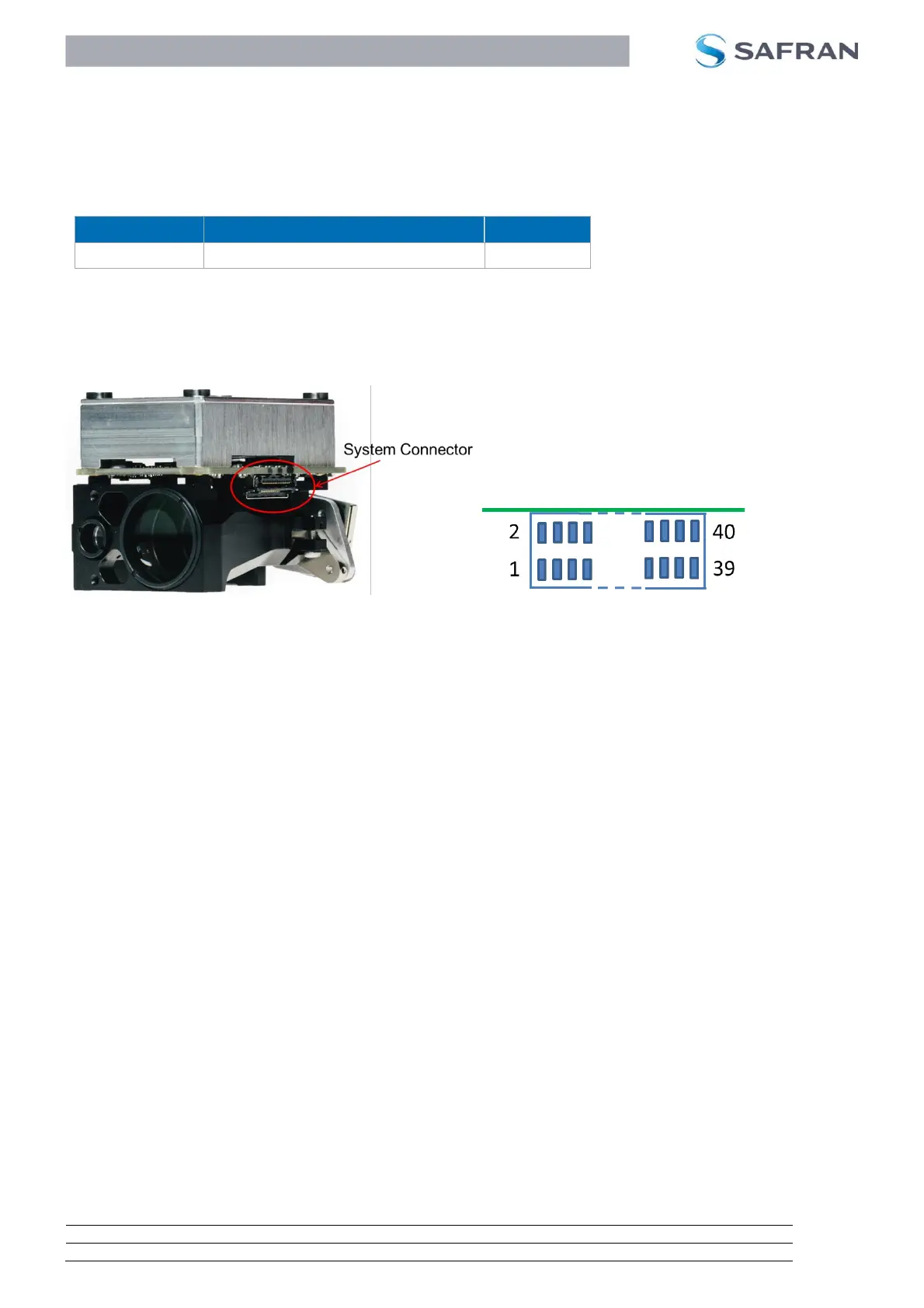

Figure 21: Position of Samtec System connector Figure 22: Location of Pin # 1, 2, 39, 40
