6.6.8 Get timestamp >LM,It*<CS><CR>
This command retrieves the current internal clock counter timestamp
Get timestamp command and response
Command
Inputs
Description
>LM,It*<CS><CR>
>LM,It*82<0D>
Get the current timestamp.
Example.
Response
Outputs
Description
>LM,It,ts*<CS><CR>
>LM,It,t743721867*FF<0D>
Response of LRF containing the current time stamp value.
Example.
Parameters
8
th
to 17
th
char
Description
ts
t743721867
Timestamp of 743721867 microseconds.
Table 21: Get timestamp command
Figure 30 plots the communication channels between a host and the module. The full length of the
command is 14 milliseconds. The offset at which the time is taken from the internal counter is marked in
green on the image, which is 1.0 ± 0.7 milliseconds after the transmission of the Acknowledge character

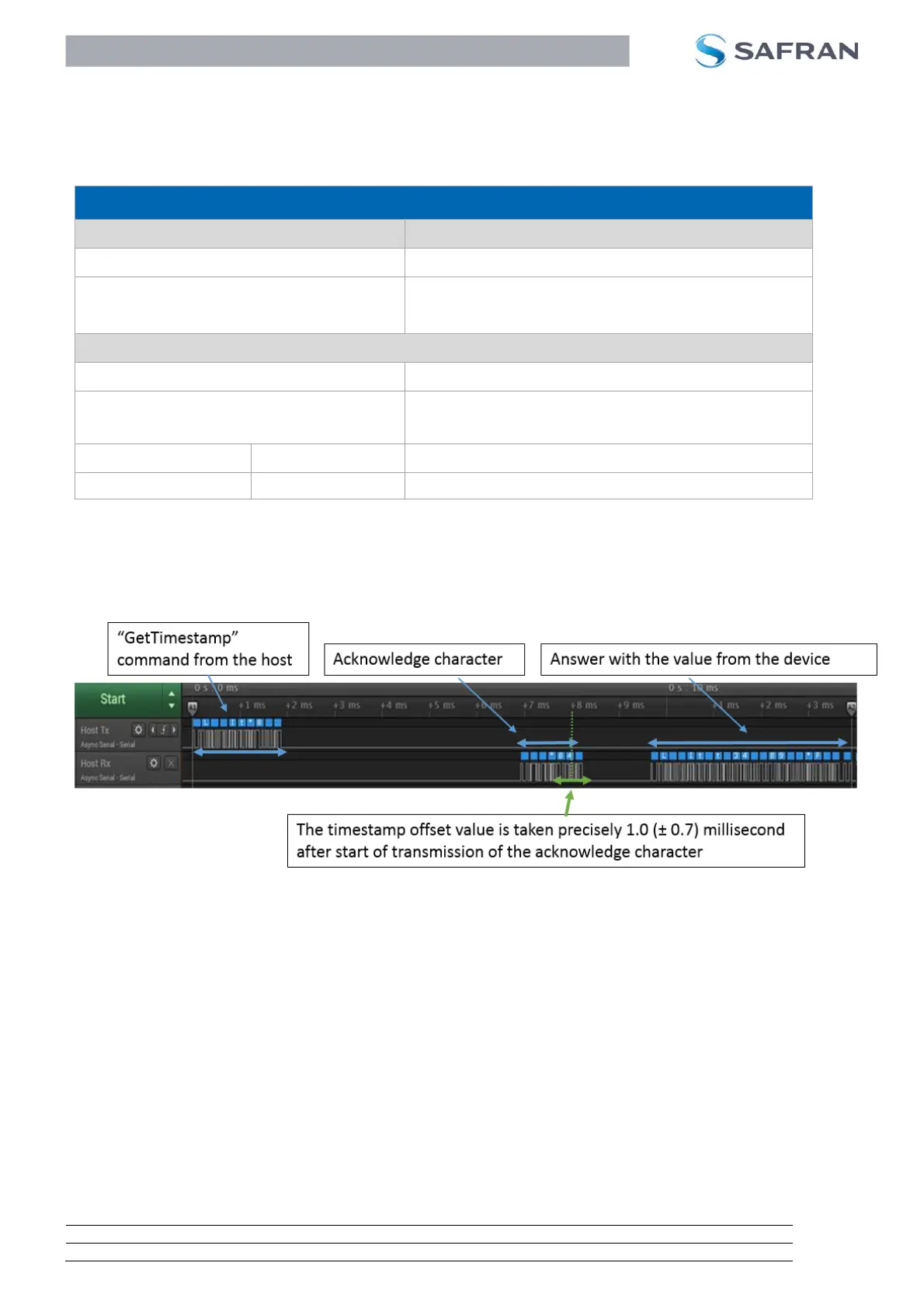

Figure 30: Offset of get timestamp command
Example of a get timestamp command transaction:
Host  LRF Module
Command frame: >LM,It*82<0D>
LRF Module  Host
Acknowledge frame: >AC*84<0D>
Response frames: >LM,It,t743721867*FF<0D>
Prompt: <
