Safran LRF 6019 - LRF Module Components; Main Parts of the LRF Module

LRF 6019 Integrator Manual
914928_TML_LRF6019_en_Version C
Public: 04.2019
Confidential & Proprietary  Safran Vectronix AG – All rights reserved
Page: 10/70
1.1 Main parts of the LRF Module
 A receiver, containing electronics and a receiver diode.
 A transmitter, containing a single stage fiber laser and an optional 830 nm pointer.
 A mainboard which manages all electronic elements and calculates the results.
 Stable aluminium bench including optics.

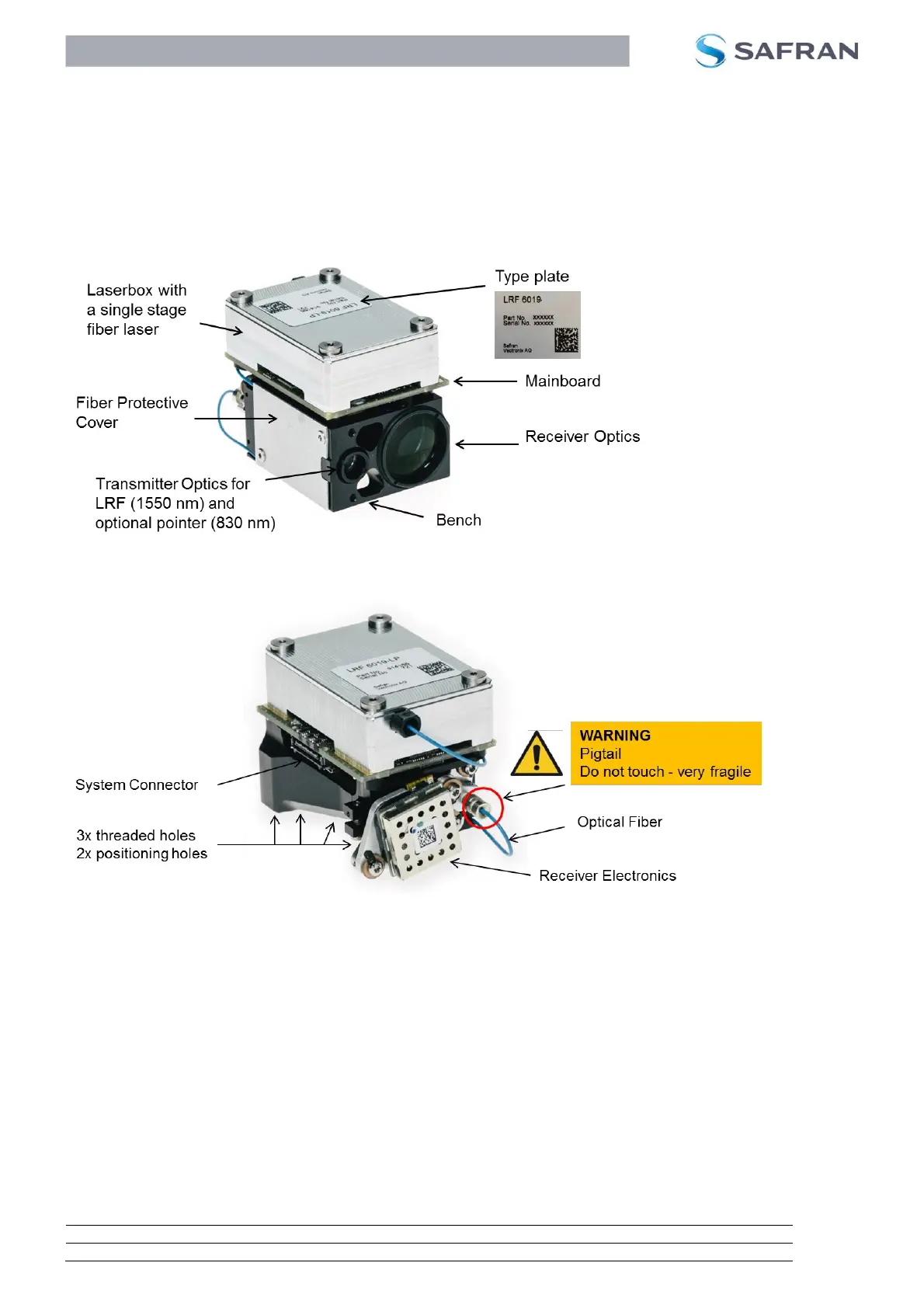

Figure 1: LRF 6019 main parts (front view)
Figure 2: LRF 6019 main parts (rear view)
