5.3 ESD protection
NOTICE
CAUTION: ESD (Electro-Static Discharge) sensitive device. Permanent damage may occur on
unconnected devices subject to high energy electrostatic fields. Unused devices must be stored
in conductive foam or shunts. Personnel should be properly grounded prior to handling this
device. The protective foam should be discharged to the destination socket before devices are
removed.
Parameter
Typical
Note
All Lines
+2kV
+1kV
Human body model (HBM)
Charged-device model (CDM)
5.4 Operating conditions
Parameter
Min
Typical
Max
Unit
Operating Voltage PWR_IN
3.3
5.0
15
V
Operating Voltage 5V_HI_PWR
4.75
5.0
5.25
V
Operating Voltage PWR_SAFE
3
5.0
5.25
V
Typical values are recommended for operation.
There are two options to supply the module. Only one input shall be used:
 PWR_IN
 5V_HI_PWR

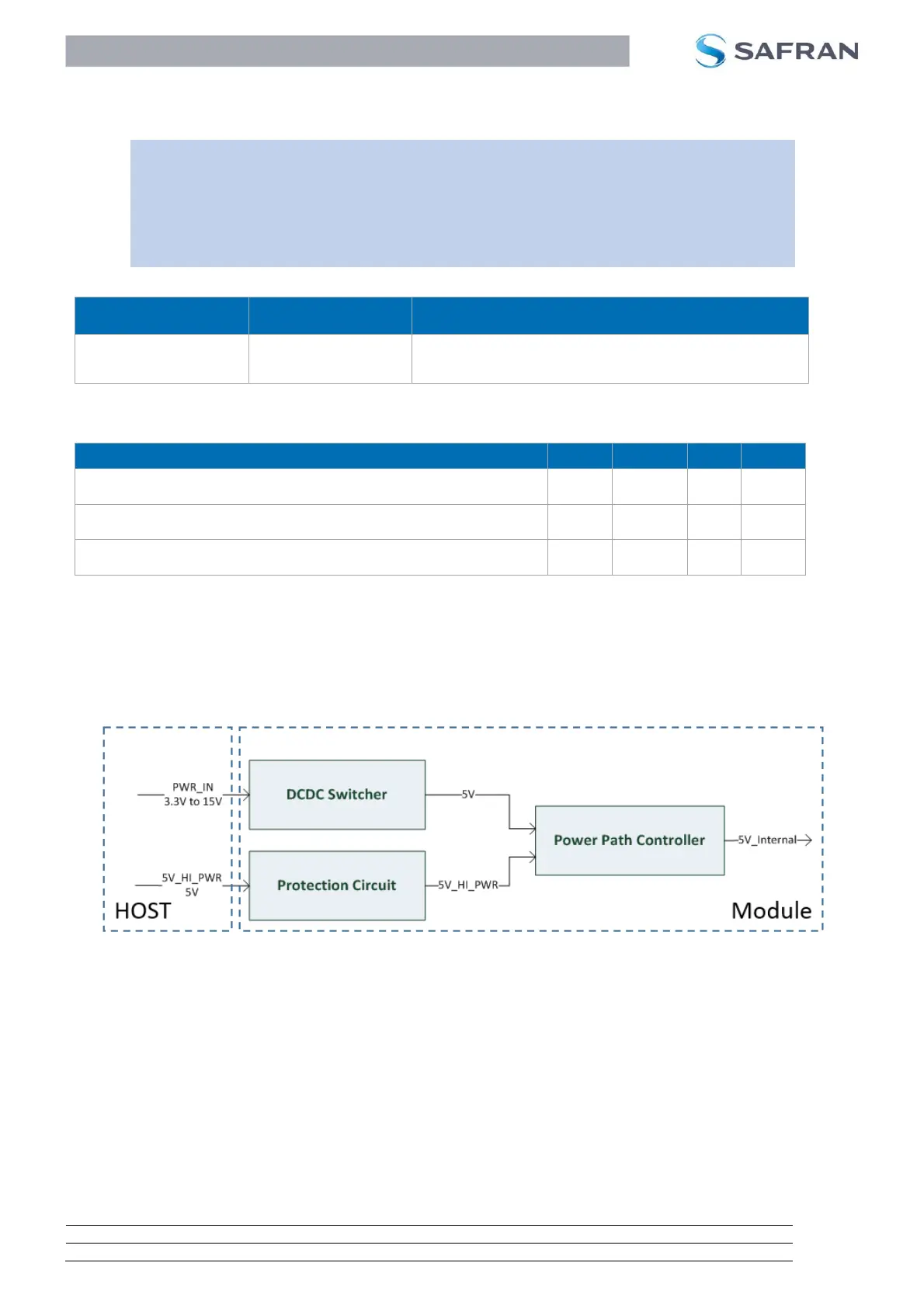

Figure 23: Possible supply connections
