17. APPLICATION SCHEMES
17.1. Solar Application scheme A
Loading of DHW reservoir from collector.

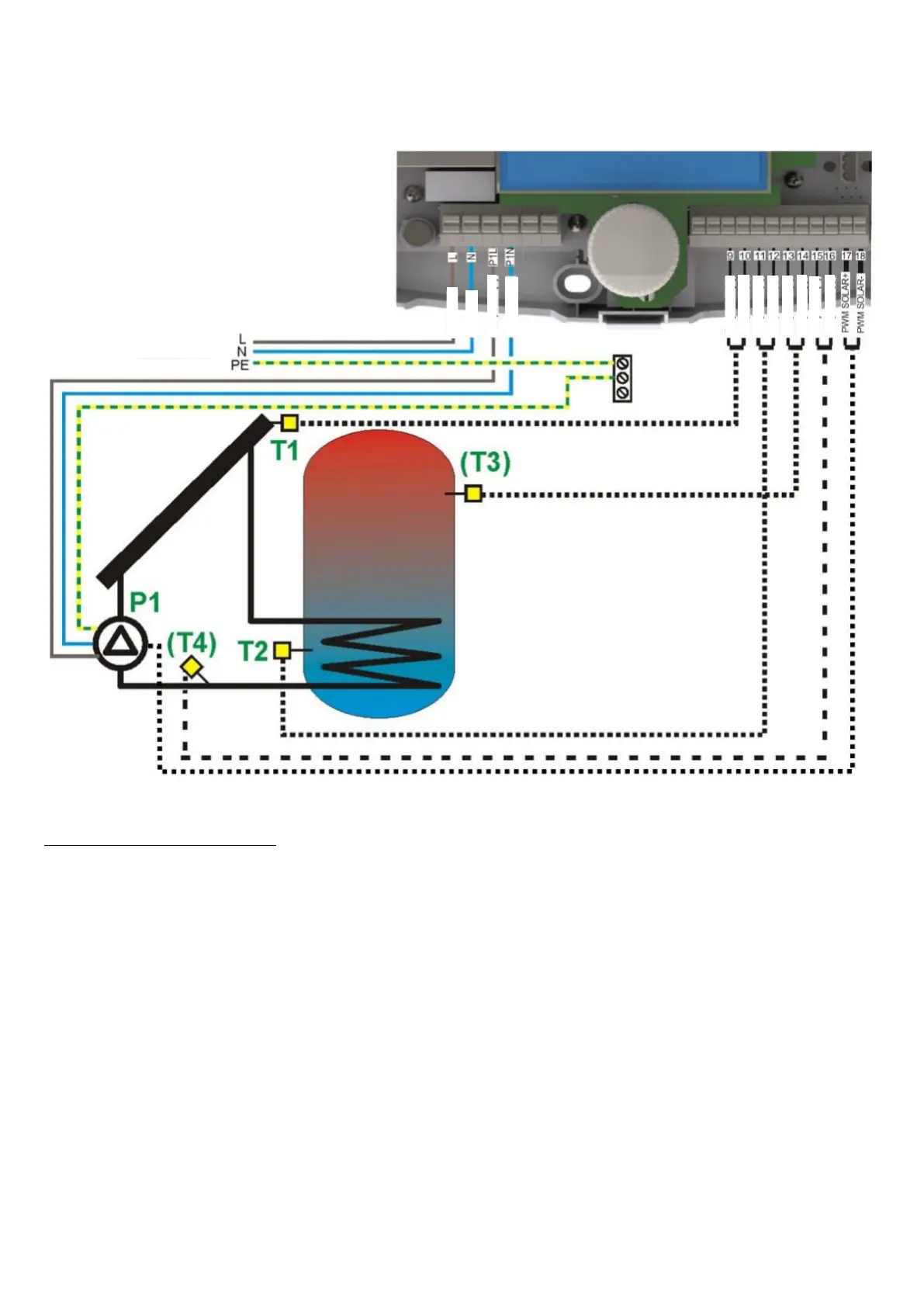

Fig. 17.1 Application scheme A
Installation recommendations
1. For the controller to count heat output, install additional CT6 sensor on the outlet of lower pipe coil
from DHW reservoir and connect to T4 input. The sensor must be installed possibly near the
connector pipe.
2. T3 sensor shows temperature in upper part of the reservoir, its connection is not required.
Mains 230~
Supply L
Supply N
Pump P1 [L]
Pump P1 [N]
Sensor T1 [+]
Sensor T1 [-]
Sensor T2 [+]
Sensor T2 [-]
Sensor T3 [+]
Sensor T3 [-]
Sensor T4 [+]
Sensor T4 [-]
