17.13. Solar application scheme M
Loading of the DHW container with low-temperature function assisting to loading of the CH installation
and controlling from CT7 room temperature sensor.

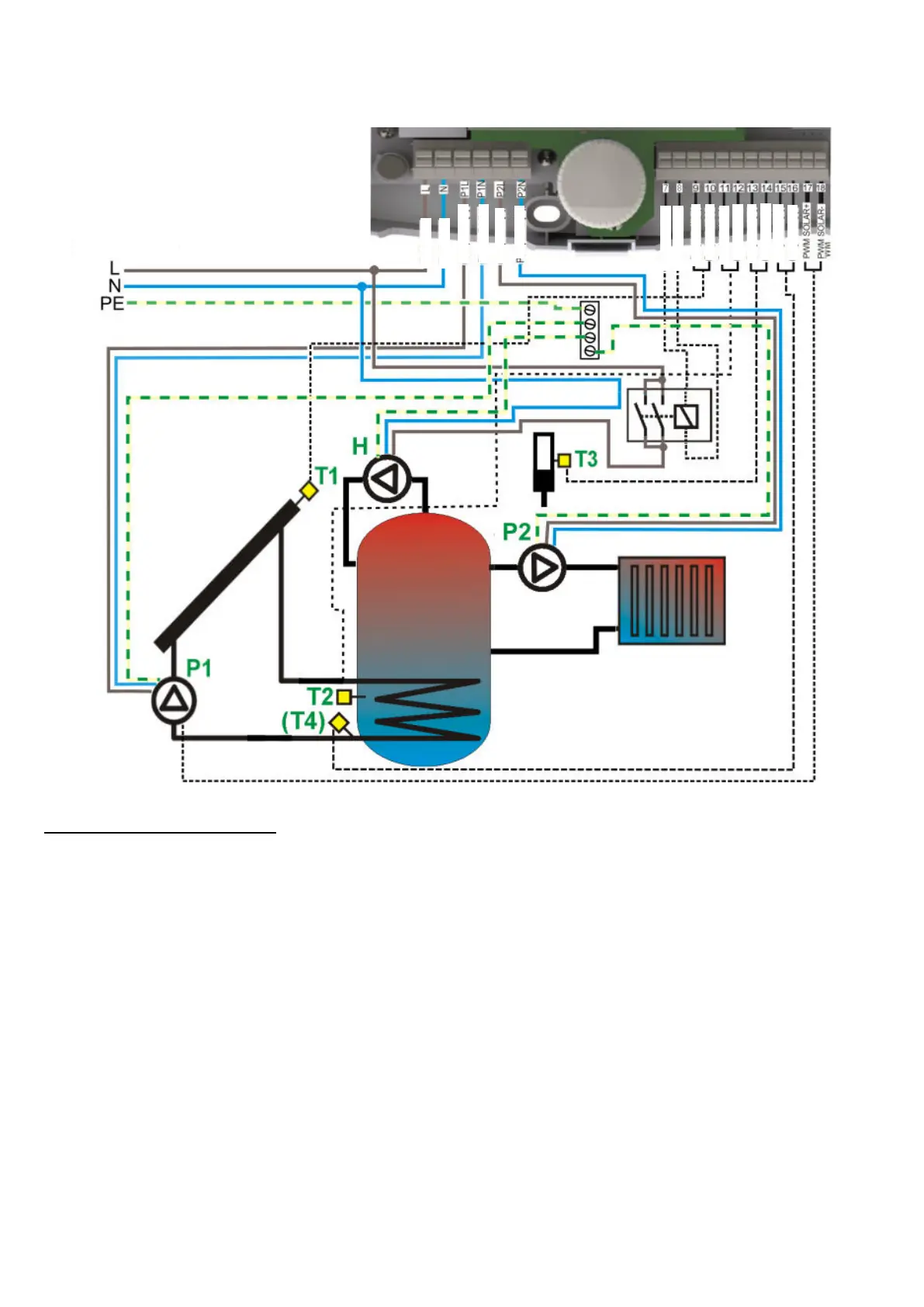

Fig. 17.13 Application scheme M
Installation recommendations
1. For the controller to count heat output, install additional CT6 sensor on the outlet of lower pipe coil
from DHW container and connect to T4 input. The sensor must be installed possibly near the
connector pipe.
2. Connect the circulation pump to the H output via the relay. It is necessary to use a relay type
6VDC RM85-2021-35-1006.
3. Use only CT7 type room temperature sensor connected to T3 input. Properly mount the sensor in
room where is installed the CH system.
Supply L
Pump P1 [L]
Pump P1 [N]
Pump P2 [L]
Pump P2 [N]
Output H [+]
Output H [-]
Sensor T1 [-]
Sensor T1 [+]
Sensor T2 [+]
Sensor T2 [-]
Sensor T3 [+]
Sensor T3 [-]
Sensor T4 [+]
Sensor T4 [-]
Supply N
Mains 230V~
