17.5. Solar Application scheme E
Loading of two DHW reservoirs (A and B) with loading priority for reservoir A.

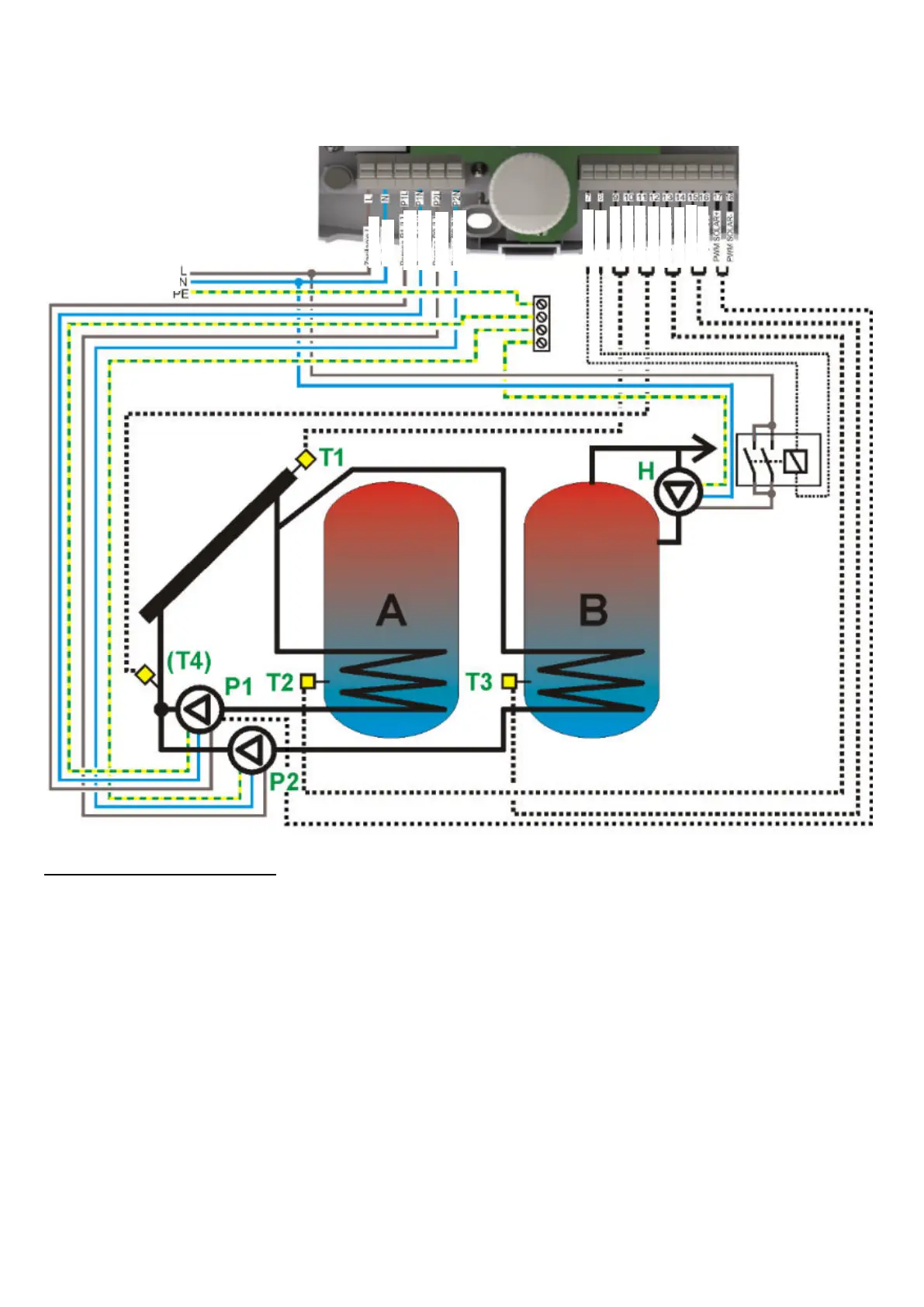

Fig. 17.5 Application scheme E
Installation recommendations
1. For the controller to count heat output, it is required to install additional CT6 sensor outside
circuits of pumps P1 and P2 and connect it to T4 input. The sensor should be installed possibly
close to the P1 and P2 pump outlet.
2. Connect the circulation pump to the H output via the relay. It is necessary to use a relay type
6VDC RM85-2021-35-1006.
3. In the diagram the circulation pump is located on B tank, but its operation is not related with the
algorithm and it may be installed on A tank as well.
4. With respect to night cooling mode used for the container A and circulation activation for better
discharge of the container, it is recommended that circulation circuit is installed in the container A.
