17.7. Solar Application scheme G
Loading of DHW reservoir with solar collector and boiler.

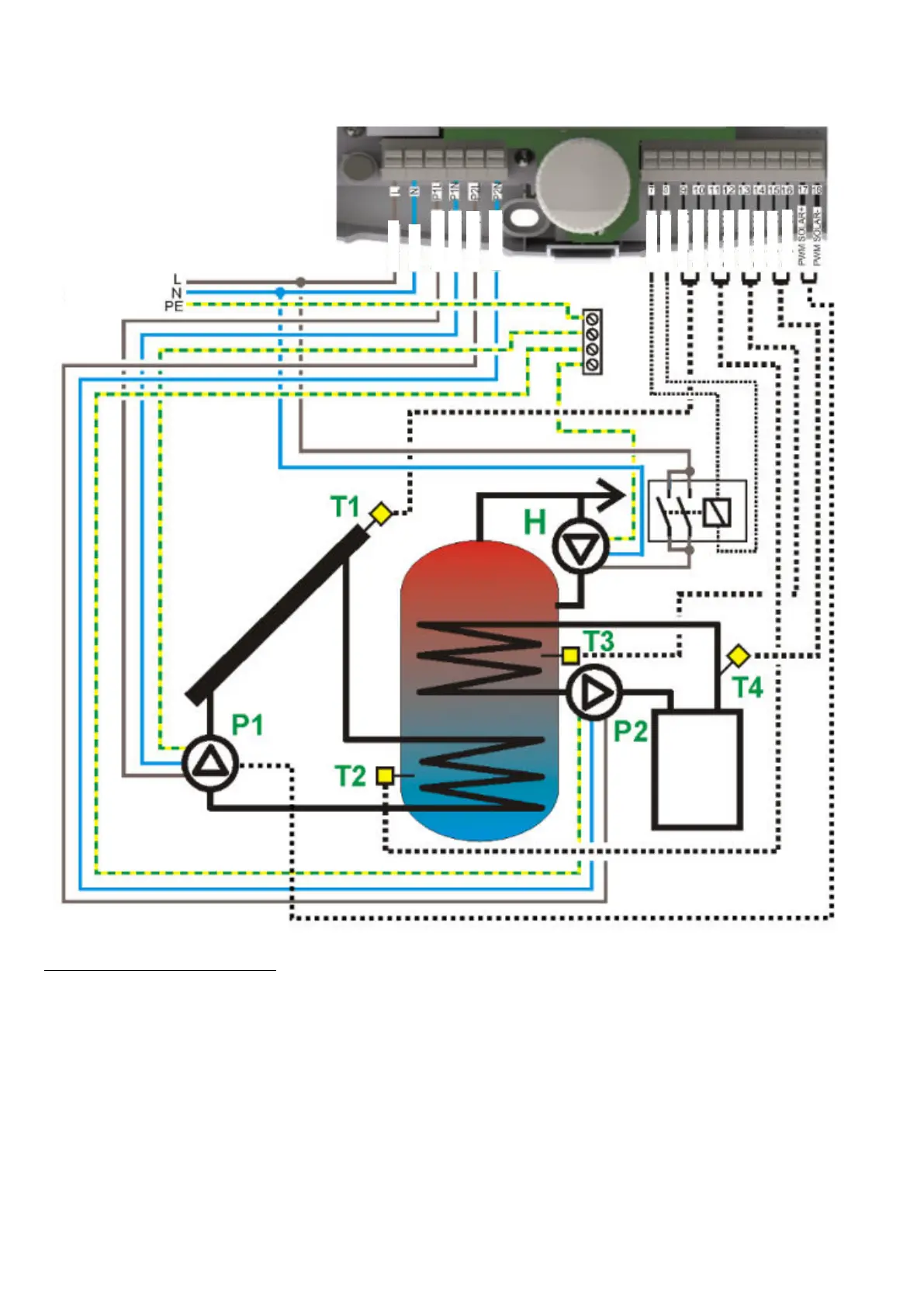

Fig. 17.7 Application scheme G
Installation recommendations
1. Connect the circulation pump to the H output via the relay. It is necessary to use a relay type
6VDC RM85-2021-35-1006.
Sensor T3 [+]
Sensor T3 [-]
Output H [+]
Output H [-]
Mains 230~
Supply L
Supply N
Pump P1 [N]
Pump P1 [L]
Pump P2 [L]
Pump P2 [N]
Sensor T1 [+]
Sensor T1 [-]
Sensor T2 [+]
Sensor T2 [-]
Sensor T4 [+]
Sensor T4 [-]
