17.10. Solar Application scheme J
Collector operation with additional back-up source.

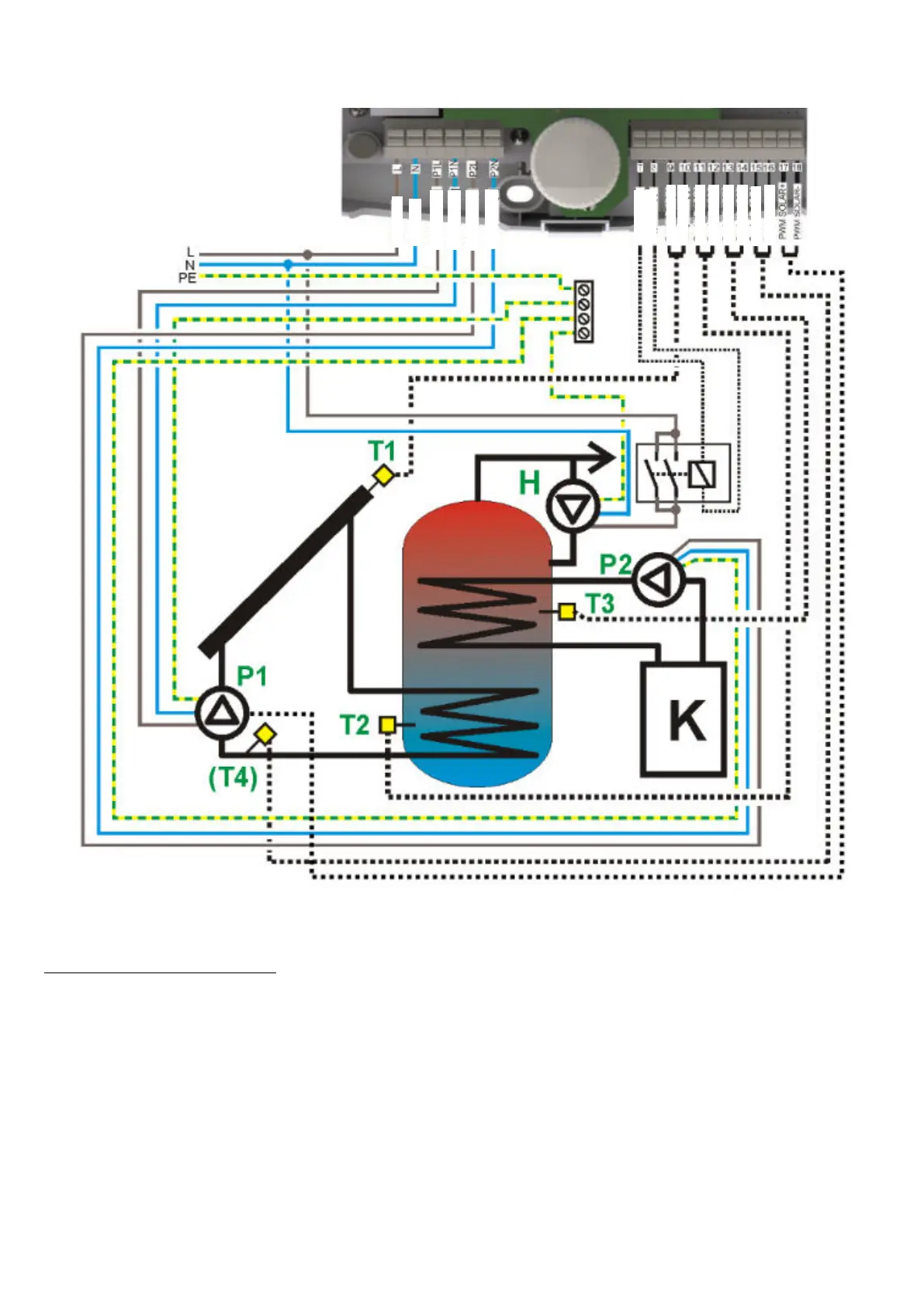

Fig. 17.10 Application scheme J
Installation recommendations
1. For the controller to count heat output, it is required to install additional CT6 sensor directly on the
return from the DHW container lower pipe coil and connect it to T4 measurement input.
2. Connect the circulation pump to the H output via the relay. It is necessary to use a relay type
6VDC RM85-2021-35-1006.
Sensor T3 [+]
Sensor T3 [-]
Output H [+]
Output H [-]
Mains 230~
Supply L
Supply N
Pump P1 [N]
Pump P1 [L]
Pump P2 [L]
Pump P2 [N]
Sensor T1 [+]
Sensor T1 [-]
Sensor T2 [+]
Sensor T2 [-]
Sensor T4 [+]
Sensor T4 [-]
