Samwon Tech TEMP880S User Manual

SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 13 / 101

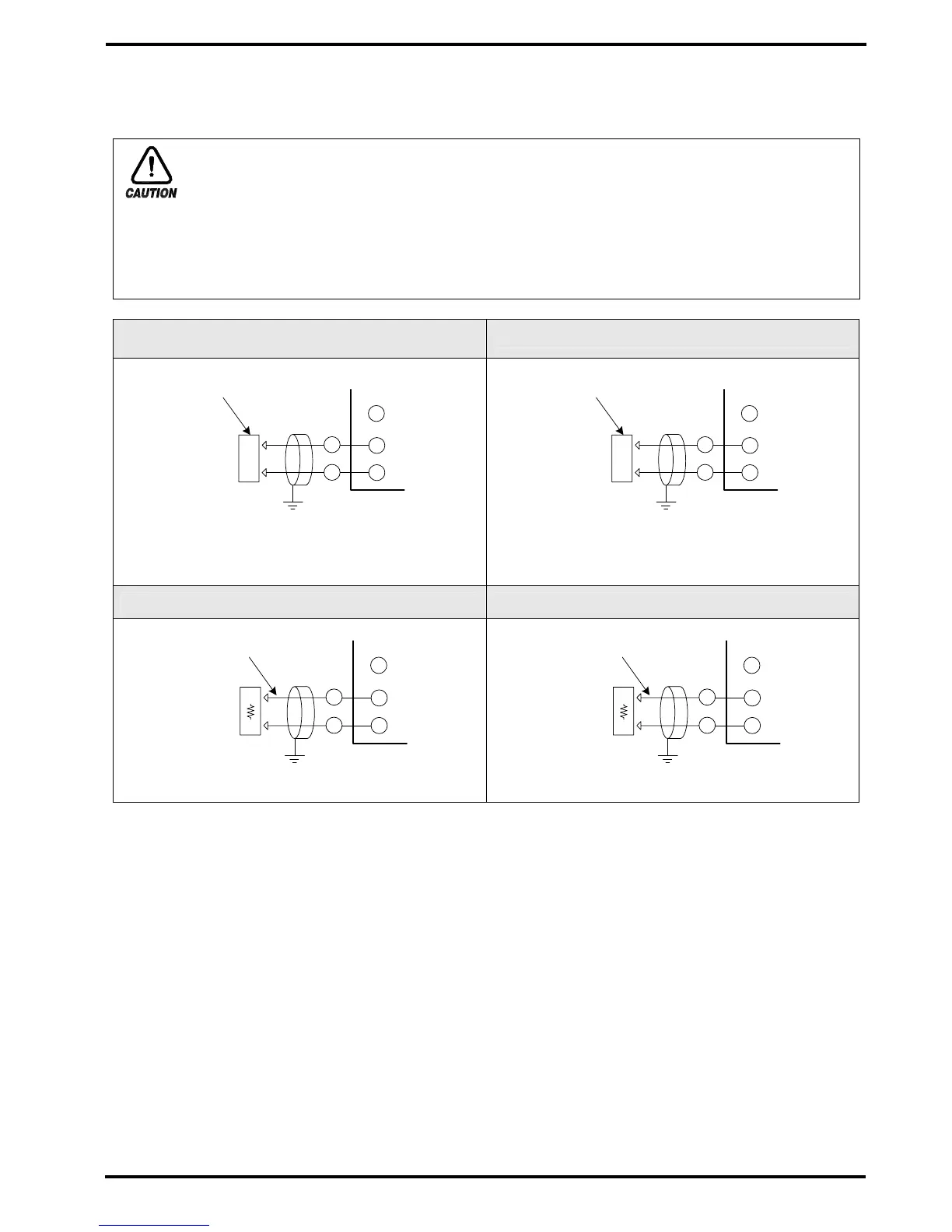

1.4.2.6 Control Output (Voltage pulse Output, Electric Present Output) and Wiring Transmission Output
▶ Turn off TEMP880S mainframe power and external power supply when wiring the control
output (SSR, SCR) and transmission output due to danger of electric shocks.
▶ Be careful with output polarity. Incorrect connection causes damage to the mainframe.
▶ Use output wire that has shield attached. Shield should be done as 1point ground
▶connection.
Temperature(heating) Control Output Wire
(SSR/4~20mA)
Cooling Control Output Wire (SSR/4~20mA)
SSR : 12VDC min, 600Ω min
SCR : 4~20mADC min, 600Ω max
SSR : 12VDC min, 600Ω min
SCR : 4~20mADC min, 600Ω max
Transmission Output 1 Wire (4~20mA) Transmission Output 2 Wire (4~20mA)
Caution
CONTROL
VALVE
I/O1 BOARD
SHIELD
Class 3 Ground
ACTUATOR
AOUT1+
AOUT1-
+
-
CONTROL
VALVE
I/O1 BOARD
SHIELD
Class 3 Ground
ACTUATOR
AOUT2+
AOUT2-
+
-
RECEIVER
(RECORDER)
4~20 mADC
600Ω max
I/O1 BOARD
SHIELD
Class 3 Ground
RET1+
RET1-
+
-
RECEIVER
(RECORDER)
4~20 mADC
600Ω max
I/O1 BOARD
SHIELD
Class 3 Ground
RET2+
RET2-
+
-
