SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 30 / 101

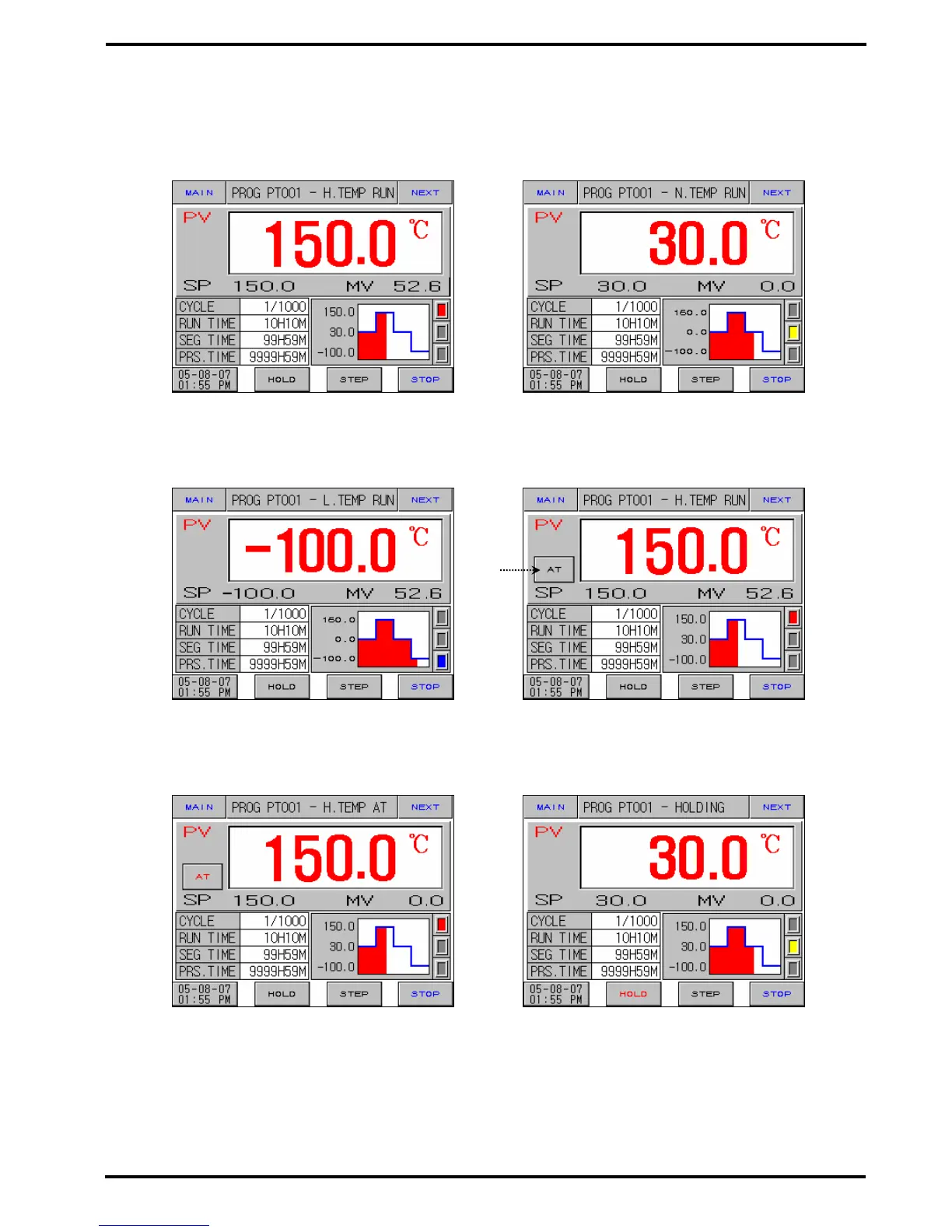

2.6.3 PROGRAM OPERATION SCREEN
Diagram 2-12. Program Operation–1screen Diagram 2-13. Program Operation–1screen
(High temperature room operation) (Normal temperature room operation)
Diagram 2-14. Program Operation-1screen Diagram 2-15. Program Operation-1screen
(Low temperature room operation) (Turning key display)
Diagram 2-16. Program Operation-1screen Diagram 2-17. Program Operation-1screen
(when turning high temperature room) (when holding)
○
1
To Next Page
