Samwon Tech TEMP880S User Manual

SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 29 / 101
○
15
Low
Temperature
Part LAMP
Displays operate state of low
temperature part.

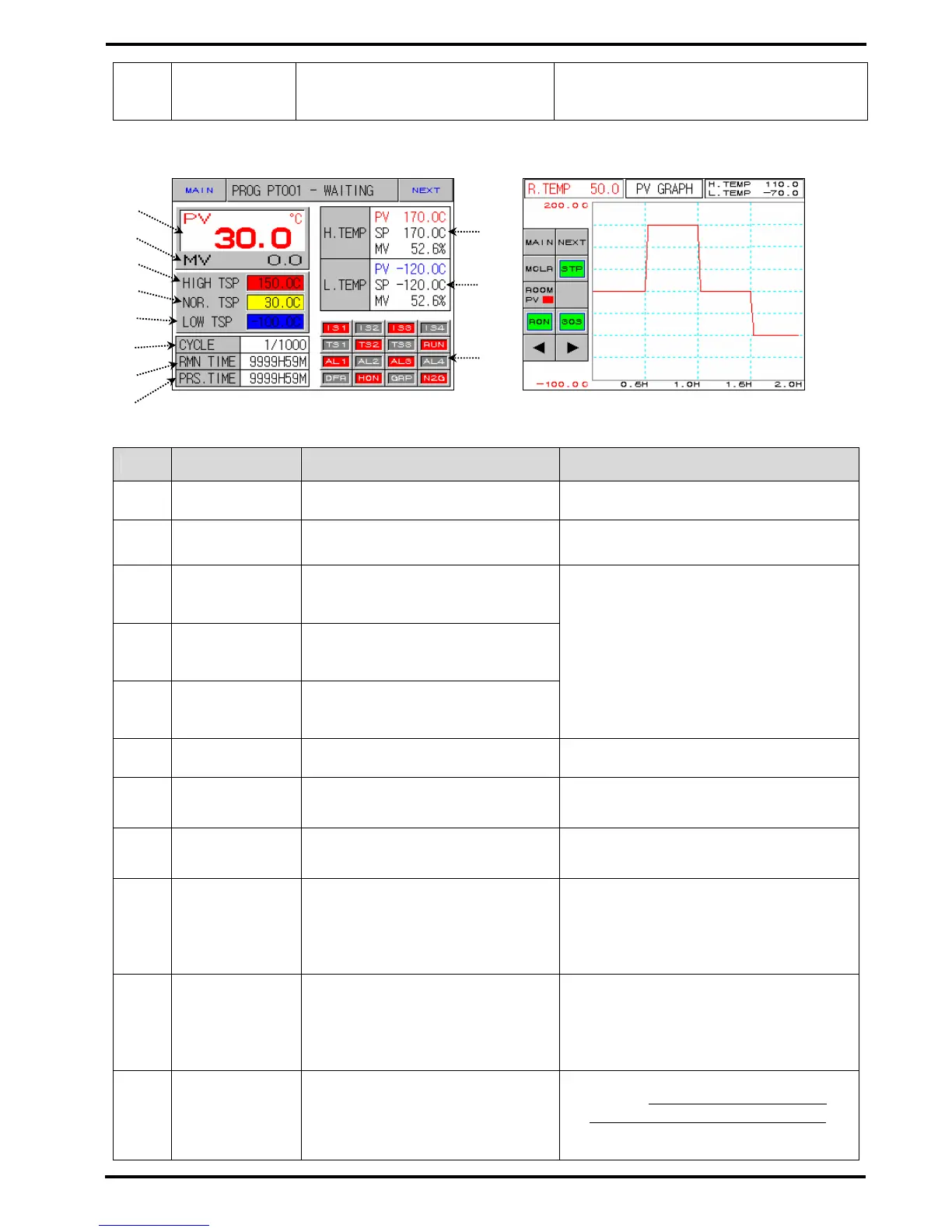

Diagram 2-10. Program Preperation – 2screen Diagram 2-11. Program Preparation – 3screen
No. Instruction Contents Additional Explanation
○
1
Laboratory PV
Displays pesent temperature of
laboratory.
○
2
Laboratory MV
Displays present control output
value of laboratory.
▶ P.OUT output occurs when it is not
under control.
○
3
High
Temperature
Room TSP
Displays high temperature room
TSP value.
○
4
Normal
Temperature
Room TSP
Displays normal temperature room
TSP value.
○
5
Low
Temperature
Room TSP
Displays low temperature room
TSP value.
▶ Turn on a lamp in zone concerned
▶ when preheating and precooling, and
▶ turn off a lamp in zone completed of
▶ preheating and precooling.
○
6
Cycle
Displays the number of repetition
of pattern concerned.
○
7
Remaining Time
Displays remaining time of the
total operation time.
○
8
Operation Time
Displays the entire process time
operated up to the present.
○
9
High
Temperature
Room
PV, SP, MV
Displays PV(temperature measure
value), SP(preheating setting
temperature), MV(control output
value) of the present high
temperature room.
○
10
Low
Temperature
Room
PV, SP, MV
Displays PV(temperature measure
value), SP(precooling setting
temperature), MV(control output
value) of the present high
temperature room.
○
11
Condition
Signlay Lamp
ON : Showing red light
OFF: Showing dark grey light
▶ Refer to 2.12.8 INITIAL SIGN AND
▶ CONDITION SIGH LAMP SETTING
☞ Able to display total 16 lamps.
○
9
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
10
○
11
○
1
