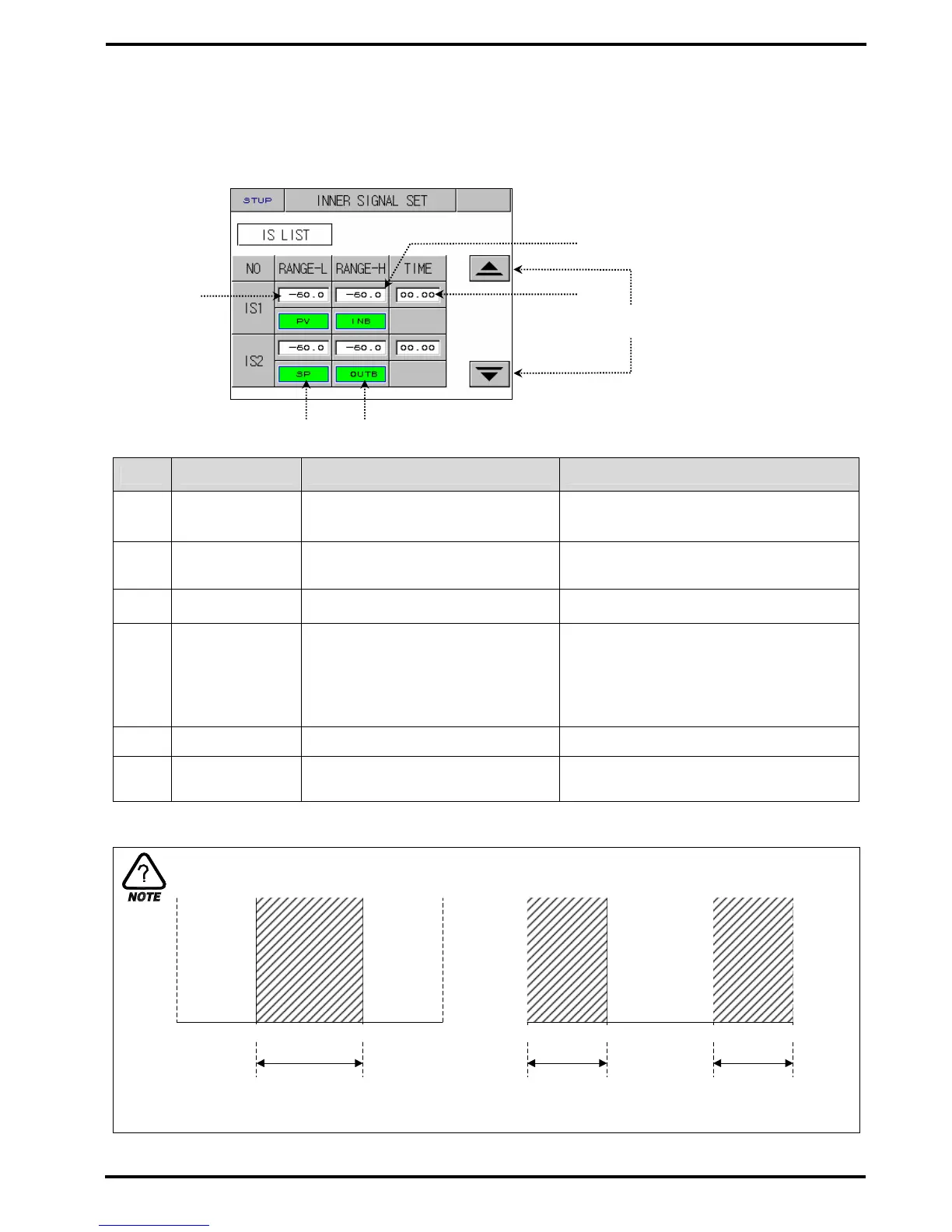

2.12.3 INNNER SIGNAL SETTING SCREEN
▶ Can set eight inner signals.
Diagram 2-51. Inner Signal Setting Screen
No. Instruction Contents Additional Explanation
○
1
RANGE LOW
Sets minimum value of Inner
Signal.
○
2
RANGE HIGH
Sets maximum value of Inner
Signal.
○
3
DELAY TIME Sets delay time of Inner Signal.
○
4
TYPE BUTTON Selects Inner Signal kind to use..
▶ SP : Present Setting Point
▶ PV : Present pointing value
☞ It has hysteresis of EUS 0.5%
☞ (impossible to change) when selected
☞ to PV.
○
5
BAND BUTTON Selects direction of Inner Signal.
○
6
Screen Move
Button
Sets eight inner signals using UP,
DOWN button.
▶ Switches screen to two Inner Signal
▶ units.
○
3
○
2
○
1
○
5
○
4
Operating Direction of Inner Signal
RL(℃,%) RNG.LOW RNG.HIGH RH((℃,%)
RL(℃,%) RNG.LOW RNG.HIGH RH((℃,%)
IS O
p
eratin
g
[ BAND = INB ]
[ BAND = OUTB ]
IS O
p
eratin
g
IS O
p
eratin
g
○
6
