2.7 MOTION SETTING SCREEN
▶ This is a screen for additional function and defrost setting of general devices.

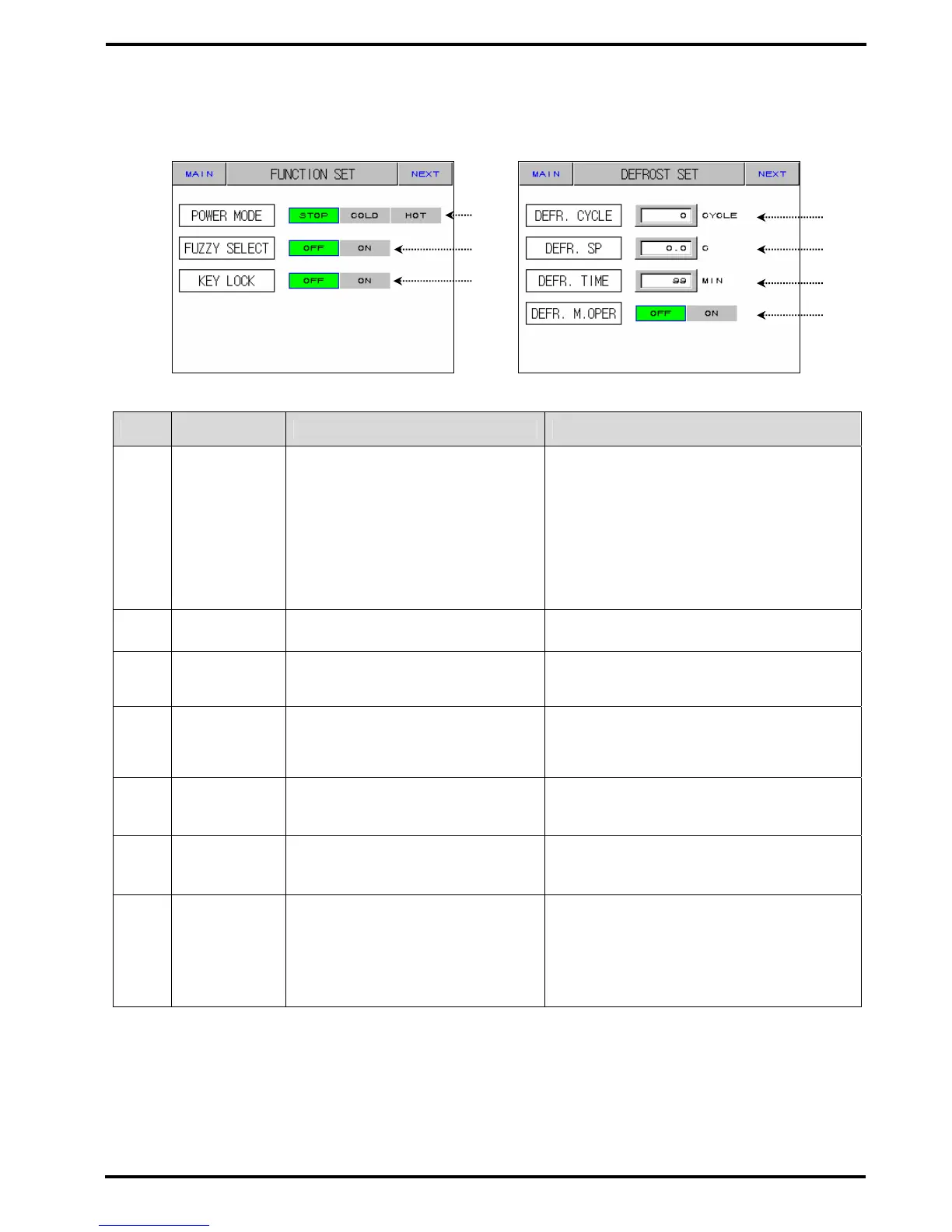

Diagram 2-23. Function Setting Screen Diagram 2-24. Defrost Setting Screen
No. Instruction Contents Additional Explanation
○
1
Outage Mode
Selects operation mode for
recovering from outage.
▶ Recognizes outage, which lasts
▶ longer than three seconds.
▶ If recovers from outage within
▶ three seconds, automatically
▶ restored as HOT state.
▶ STOP : Stop operation.
▶ COLD : Operate from WAIT.
▶ HOT : Operate from the position of
▶ SEG that was operating shortly
▶ before outage after WAIT
○
2
Fuzzy Setting
Settles control during the
occurrence of disturbance
○
3
Locking
Setting
Setting/cancel key lock.
☞ Possible only to shift screen and
☞ execute key input lockup cancellation
○
4
Defrost Cycle
It fixes motion cycle of defrost
control.
▶ 0 ~ 9999
○
5
Defrost
Temperature
Input defrost temperature set value
of low temperature room under
defrost control.
▶ -10.0 ~ 100.0℃
○
6
Defrost Time Fix time starting defrost control. ▶ 1 ~ 99 MIN
○
7
Manual
Defrost
Switch
It is used when defrost control is
manually done.
▶ Can be used only during operation stop.
▶ Control low temperature room during
▶ defrost time with defrost SP.
▶ RELAY is on during defrost operation.
○
3
○
1
○
2
○
6
○
4
○
5
○
7
To Next Page
