2.10.3 Pattern Name Set
2.10.3.1 Pattern Name Set Method
▶ Setting method to enter pattern name, “TEST 8593W, in Pattern 3.

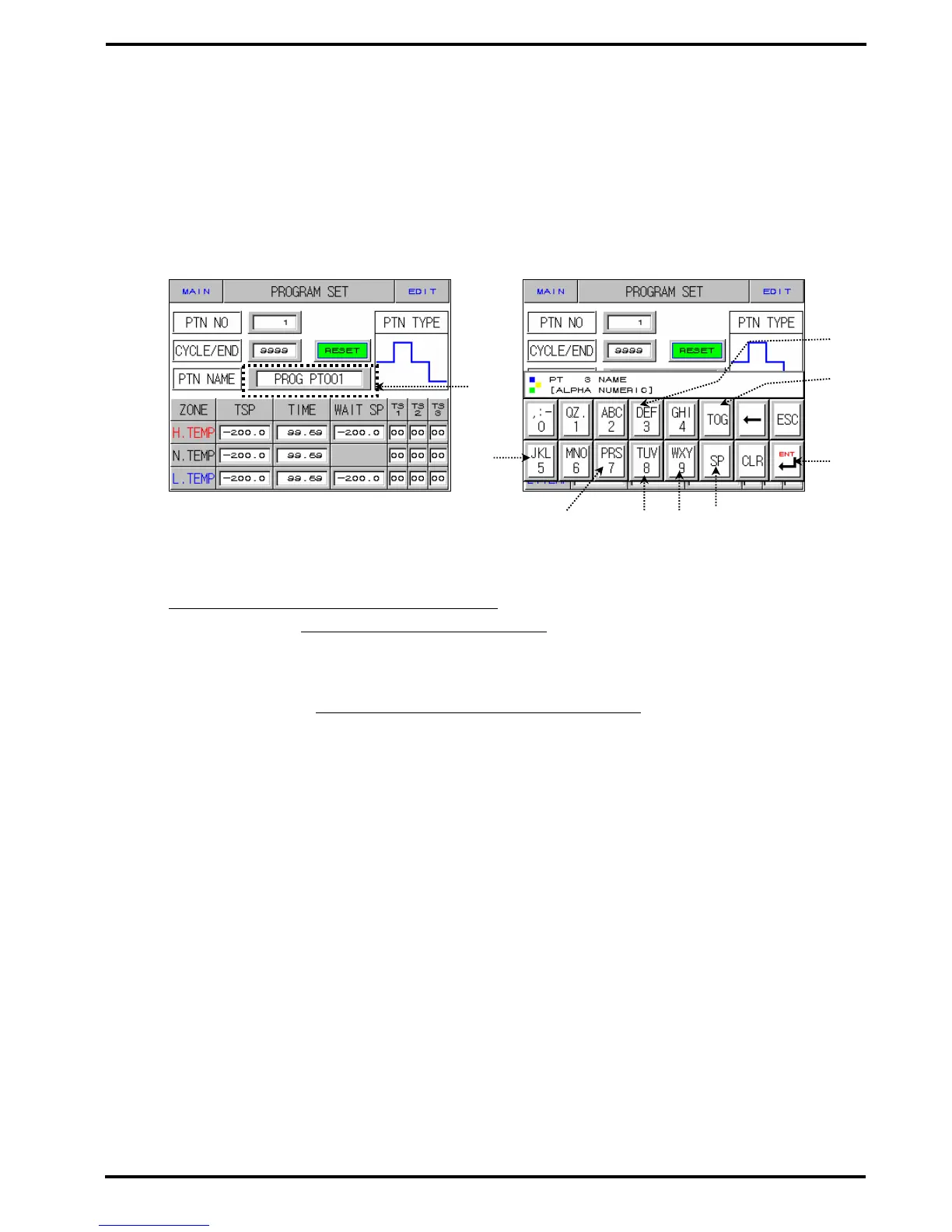

Diagram 2-41. Before Setting Test Name Diagram 2-42. Pattern Name Setting Input Key
3) Diagram2-42. Pattern Name Setting Input Key
is displayed if you press anywhere of
○
1 on the
previous screen of Diagram2-41. Pattern Name Setting
will be displayed.
4) Setting the name of pattern which is wanted by pressing Button in order as
○
2→
○
8→
○
3→
○
5→
○
3
→
○
3→
○
2→
○
6→
○
2→
○
3→
○
3→
○
3→
○
9→
○
3→
○
3→
○
3→
○
7→
○
3→
○
3→
○
3→
○
8→
○
3→
○
3→
○
3→
○
7→
○
4 of the Diagram 2-42. Pattern Name Setting Input Key.
○
