Samwon Tech TEMP880S User Manual

SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 43 / 101

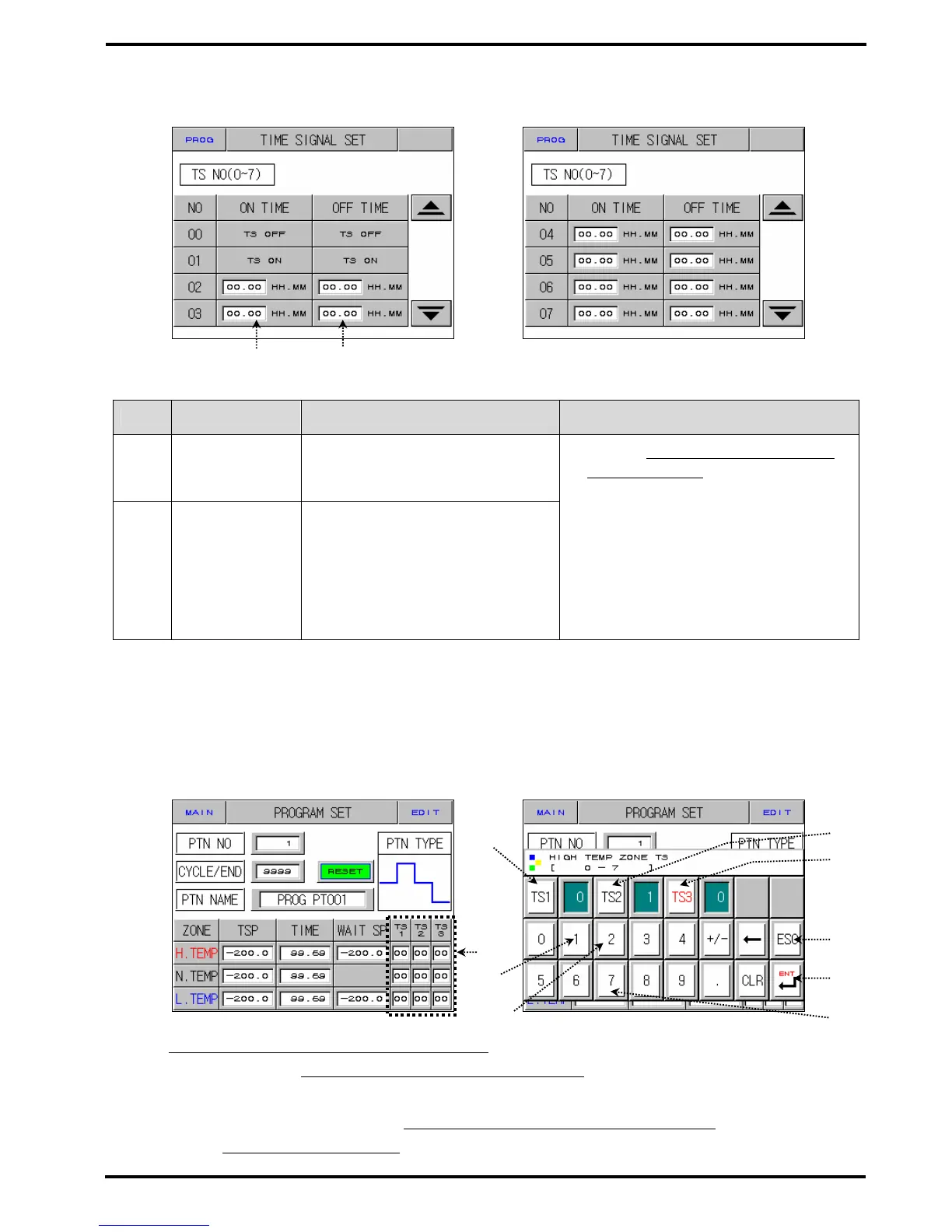

2.10.2 Time Signal Setting Screen
Diagram 2-37. Time Signal Setting – 1screen Diagram 2-38. Time Signal Setting – 2screen
No. Instruction Contents Additional Explanation
○
1
ON Time
Sets standby time from segment
start point to the point of
occurrence of time signal output.
○
2
OFF Time
Sets output stop time of time
signal after time signal appears
according to ON time.
▶ Refer to Diagram2-40. Time Signal
▶ Setting Input Key
▶ Setting NO: 00 → No Time Signal
▶ Setting NO: 01
→ Always output at set segment
▶ Setting NO: 02 ~ 07
▶ → Stops output as much of on time at
▶ set segment, and off time after output
▶ occurs
2.10.2.1 How to Set Time Signal
▶ Time Signal 2 of Segment “01” is to set TYPE “1”, Time Signal 3 is toset TYPE “2”,
▶ and Time Signal 4 is to set TYPE “7”.
Diagram 2-39. Befor Setting Time Signal Diagram 2-40. Time Signal Setting Input Key
1) Diagram2-40. Time Signal Setting Input Key
is displayed if you press anywhere of
○
1 on the
previous screen of Diagram2-39. Before Setting Time Signal
will be displayed.
2) Setting the name of pattern which is wanted by pressing Button in order as
○
2→
○
3→
○
4→
○
7→
○
5
→
○
4→
○
8→
○
6→
○
4→
○
9 of the Diagram 2-40. Time Signal Setting Input Key.
☞ Refer to 2.10.2 Time Signal Setting
for input time signal type.
○
1
○
2
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
