Samwon Tech TEMP880S User Manual

SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 28 / 101
2.6.2 PROGRAM PREPARATION SCREEN

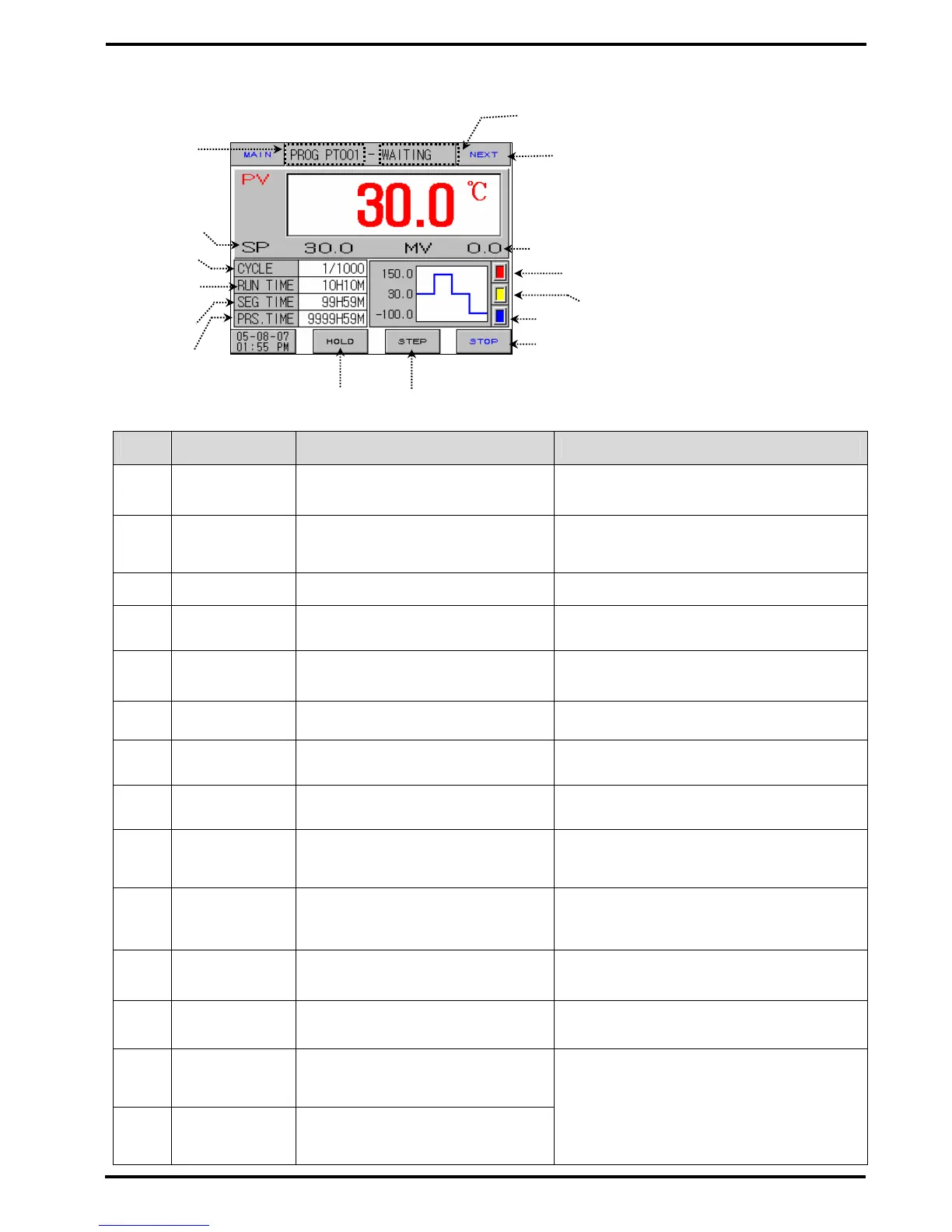

Diagram 2-9. Program Preparation – 1screen
No. Instruction Contents Additional Explanation
○
1
Program Name
Displays program name which is
set up.
○
2
State
Information
Display
Displays present state information.
○
3
Next Button Shifts to diagram 2-10.
○
4
Laboratory SP
Displays present SET POINT of
laboratory.
○
5
Laboratory MV
Displays present control output
value of laboratory.
▶ P.OUT output occurs when it is not
▶ under control.
○
6
Cycle
Displays the number of repetition
of pattern concerned.
○
7
SEG Operation
Displays operation time of zone
concerned.
○
8
SEC Time
Displays time set up of zone
concerned.
○
9
Operation Time
Displays the whole operation time
up to the present.
▶ Whole operation time > Start
▶ accumulation again from 0000H00M
▶ when 9999H59M.
○
10
Hold Button
Hold on to the set point of the
present temperature or hold it off.
○
11
Step Button
End the present segment and
shifts to the next segment.
▶ Starts operation ignoring WAIT when it
▶ is “STEP” under WAIT.
○
12
End Button
Displays a confirming box to to
end the program operation.
○
13
High
Temperature
Part LAMP
Displays operation state of high
temperature part.
○
14
Normal
Temperature
Part LAMP
Displays operation state of normal
temperature part.
▶ Lamp in zone concerned blinks when in
▶ preheating and precooling, and zone
▶ completed of preheating and
▶ precooling stops blinking and maintain
▶ lamp “off”.
○
7
○
12
○
10
○
11
○
2
○
8
○
15
○
6
○
1
○
3
○
5
○
9
○
13
○
14
○
4
