Samwon Tech TEMP880S User Manual

SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 53 / 101
2.12.2 CONTROL OUTPUT AND TRANSMISSION SETTING SCREEN
2.12.2.1 CONTROL OUTPUT SETTING

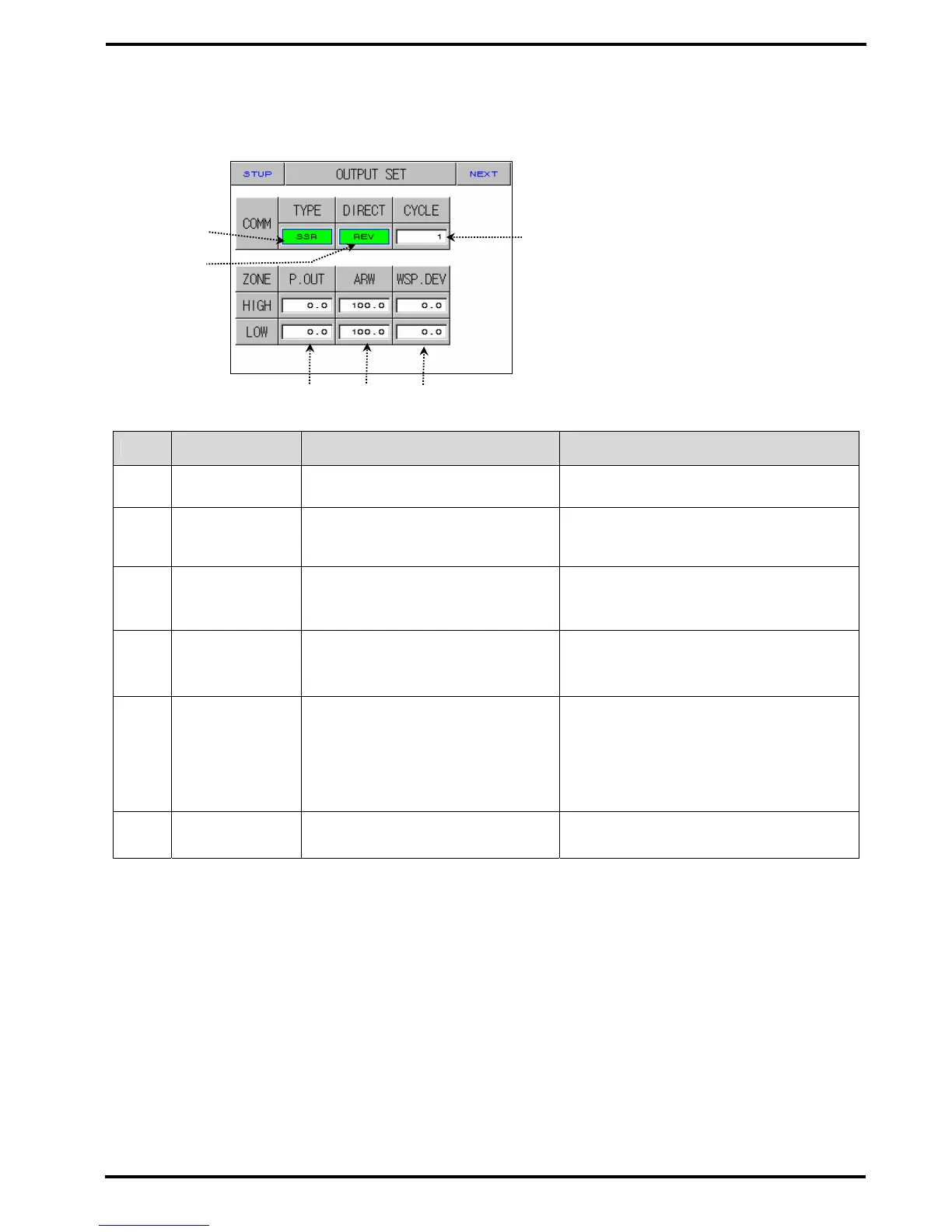

Diagram 2-49. Control Output Set
No. Instruction Contents Additional Explanation
○
1
OUTPUT TYPE Sets a kind of control output.
○
2
DIRECTION
Sets right and reverse motion of
PID control.
○
3
CYCLE
Sets output cycle when Control
Output is “ SSR (Solid State
Relay) ”
▶ Controls senstively if output cycle is
▶ short.
○
4
PRESET OUT
Cuts PID output from STOP,
S.OPN, ERROR occurring and
displays PRESET OUT
○
5
ANTI RESET
WIND-UP
When control output exceeds
setting point, it prevents WIND-UP
by stopping reset wind-up
operation, and sets point of
resuming PID operation as
deviation range.
○
6
WAIT SP
DEVIATION
Sets deviation value for WAIT SP.
○
1
○
2
○
3
○
4
○
5
○
6
