1st Edition of TEMP880S IM : Sep. 21. 2005 Page 54 / 101
ON OFF
10 sec
3 sec
7 sec
ON
OFF
10 sec
5 sec
5 sec
ON OFF
10 sec
7 sec
3 sec
▶ Applies only when a kind of control output is “SSR(Solid State Relay)”
▶ Indicates on/off time of one cycle.
▶ where output cycle is 10 sec.

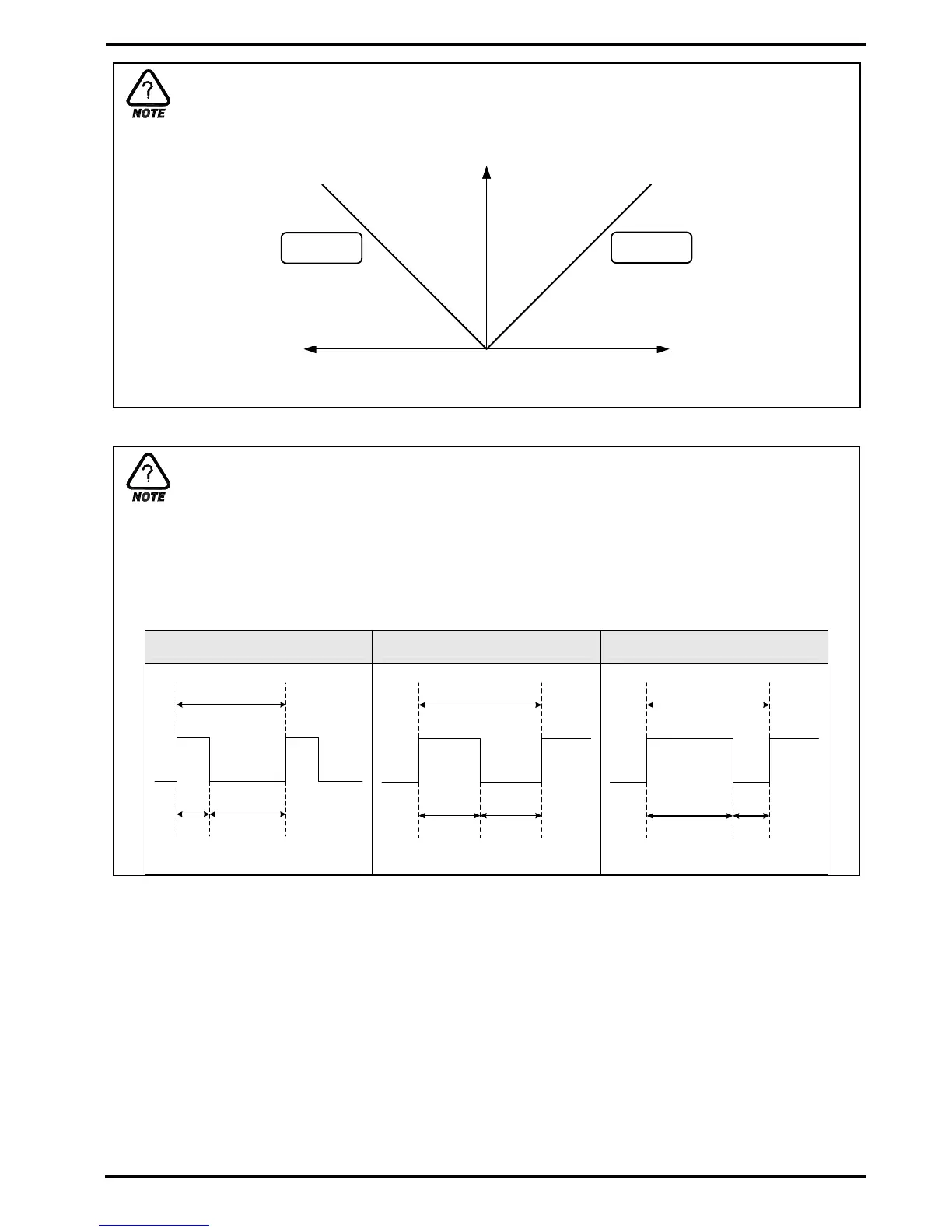

Control Output: 30% Control Output: 50% Control Output: 70%
Right and Reverse Motion
Control output(MV)
Deviation(PV
-SP)
+ -
0 %
100 %
Right
Reverse
Control output increase when
PV> SP.
Control output increase when
PV< SP
CYCLE TIME
