2.12.6 ALARM AND DI ERROR NAME SETTING SCREEN
2.12.6.1 ALARM SETTING

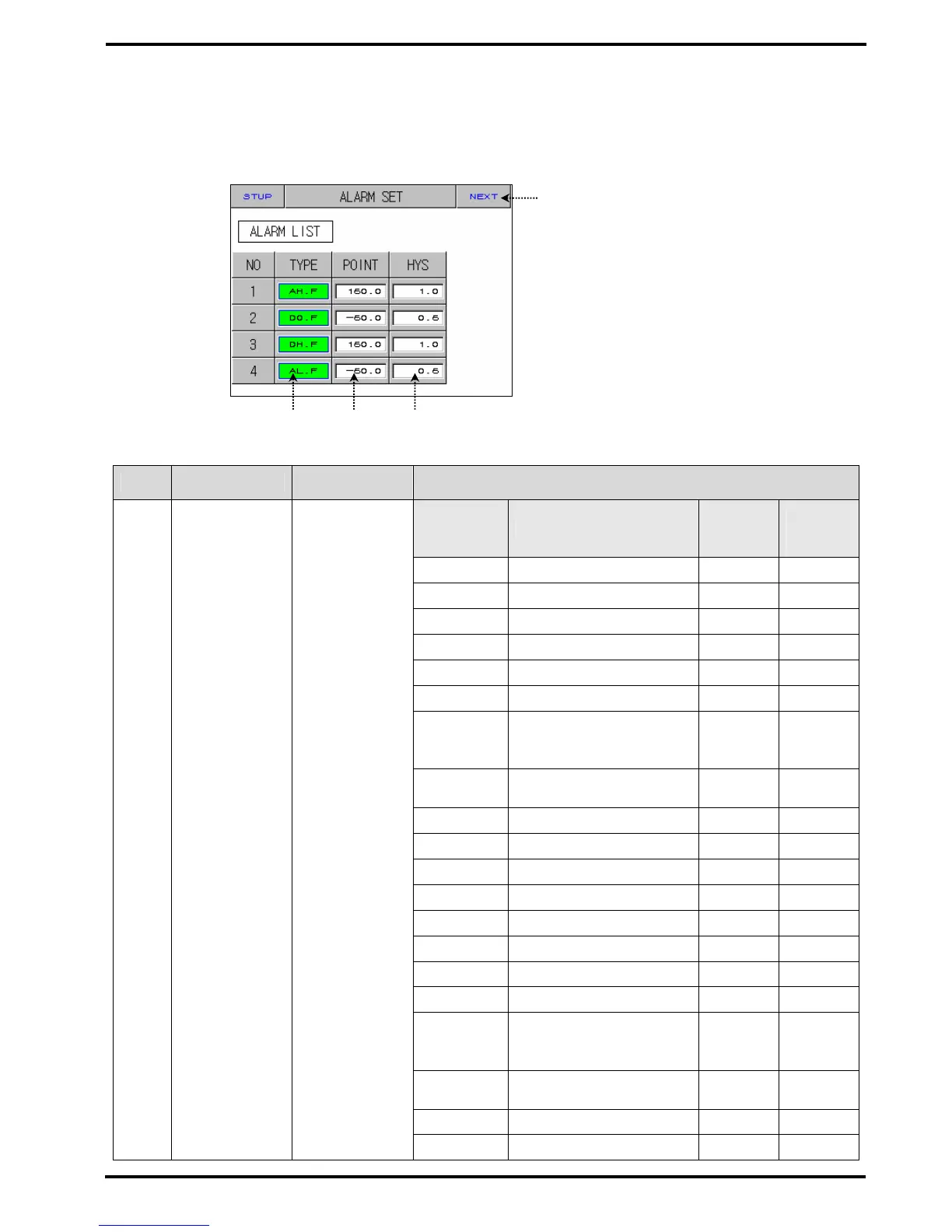

Diagram 2-61. Alarm Setting Screen
No. Instruction Contents Additional Explanation
Display Alarm Types Direction
Wait
Operatio
n
AH.F Upper limit of PV Right Nothing
AL.F Lower limit of PV Right Nothing
DH.F Upper limit of deviation Right Nothing
DL.F Lower limit of deviation Right Nothing
DH.R Upper limit of deviation Reverse Nothing
DL.R Lower limit of deviation Reverse Nothing
DO.F
Out of the range of
upper and lower limit of
deviation
Reverse Nothing
DI.F
Within the range of upper
and lower limit deviation
Reverse Nothing
AH.R Upper limit of PV Reverse Nothing
AL.R Lower limit of PV Reverse Nothing
AH.FS Upper limit of PV Right Existent
AL.FS Lower limit of PV Right Existent
DH.FS Upper limit of deviation Right Existent
DL.FS Lower limit of deviation Right Existent
DH.FS Upper limit of deviation Reverse Existent
DL.RS Lower limit of deviation Reverse Existent
DO.FS
Out of the range of
upper and lower limit of
deviation
Right Existent
DI.FS
Within the range of upper
and lower limit deviation
Right Existent
AH.RS High Limit Pointing Value Reverse Existent
○
1
ALARM TYPE
SELECT
Selects alarm
type.
AL.RS Low Limit Pointing Value Reverse Existent
○
3
○
2
○
4
○
1
