2.6 Operation Screen
▶ Displays condition for actual product operation and information.
2.6.1 PROGRAM STOP SCREEN

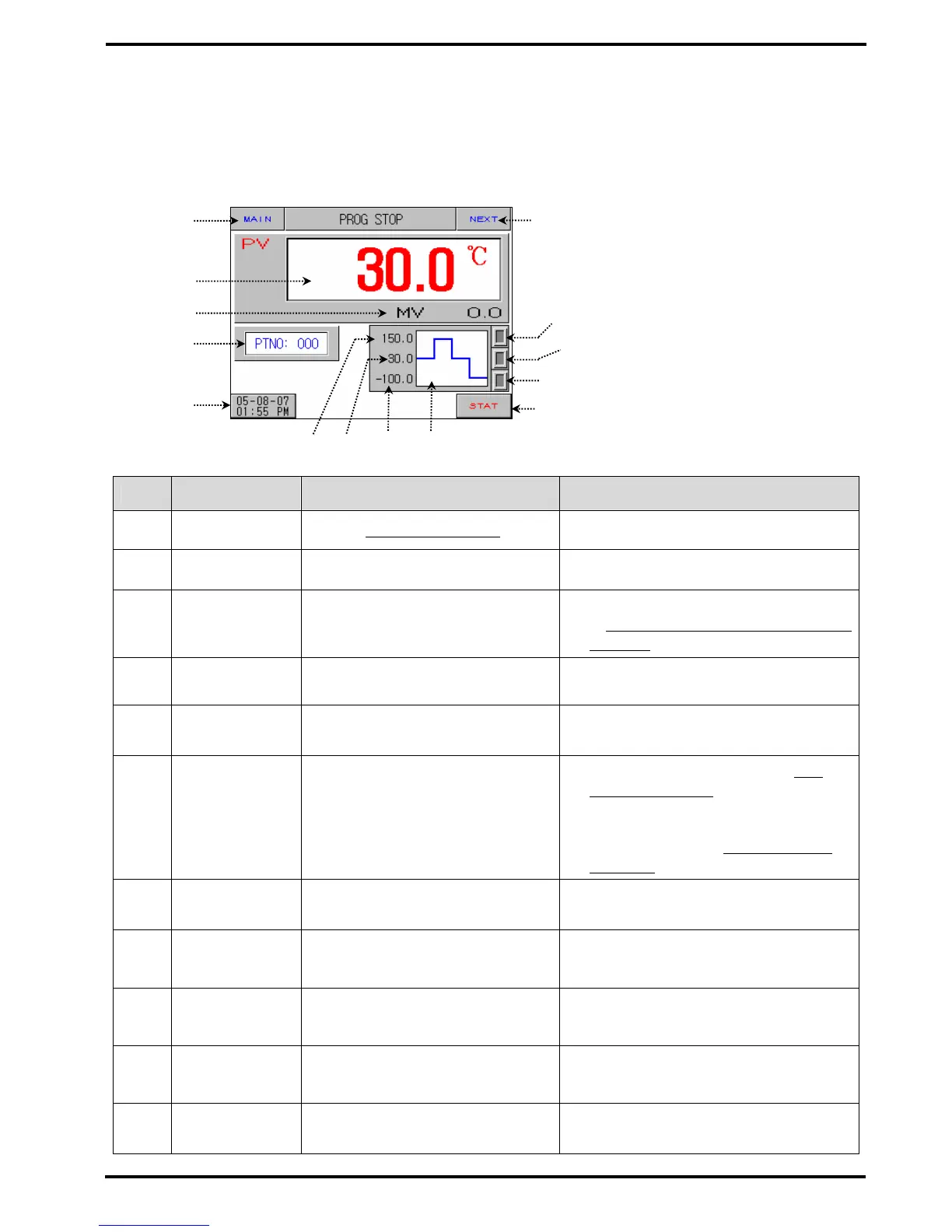

Diagram 2-3. Program Stop -1screen
No. Instruction Contents Additional Explanation
○
1
Main Button Shifts to 2.5 MAIN SCREEN.
○
2
Next Button Shifts to (Diagram 2-4).
○
3
Laboratory PV
Displays present temperature of a
laboratory.
▶ Proper sensor type should be set up
▶ in 2.12.1 INPUT AND INPUT REVISION
▶ SETTING.
○
4
Laboratory MV
Displays present control output
value of a laboratory.
▶ P.OUT output occurs when it is not
▶ under control.
○
5
Pattern No.
Displays pattern number to start
program operation.
▶ Press button to set operation pattern
▶ number.
○
6
Time Button
Displays present time and if you
press button, LCD screen turns
off. If you wish to turn on when
nothing is displayed but operated
normal, press anywhere on screen.
▶ Set automatic turn off time in 2.7
▶ MOTON SETTING.
☞ For long durability of the back light,
☞ ten munutes are initially set up.
▶ Set present time in 2.8 RESERVED
▶ SETTING.
○
7
Operation
Button
Displays a confirm box to start
program operation.
▶ Refer to (Diagram 2-5).
○
8
High
Temperature
TSP
Displays high temperature
TSP(Target Set Point) of program
which is set up.
○
9
Normal
Temperature
TSP
Displays normal temperature
TSP(Target Set Point) of program
pattern which is set up.
○
10
Low
Temperature
TSP
Displays low temperature
TSP(Target Set Point) of program
pattern which is set up.
○
11
Pattern Type
Displays program pattern type
which is set up.
▶ Four types
○
11
○
10
○
8
○
1
○
5
○
12
○
6
○
7
○
4
○
1
○
2
○
13
○
14
○
9
