Samwon Tech TEMP880S User Manual

SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 20 / 101
2.2 HOW TO ENTER SETTING VALUE
▶ All input data for the product is set by input key such as setting value input key, test name input
▶ key, and time signal input key.
▶ Setting value input key(Table 1-1) appears when you press input button, and you can enter
▶ input value.
▶ Refer to 2.10.2 TIME SIGNAL SETTING
for time signal input key.
▶ Refer to 2.10.3 TEST NAME SETTING
for test name setting input key.

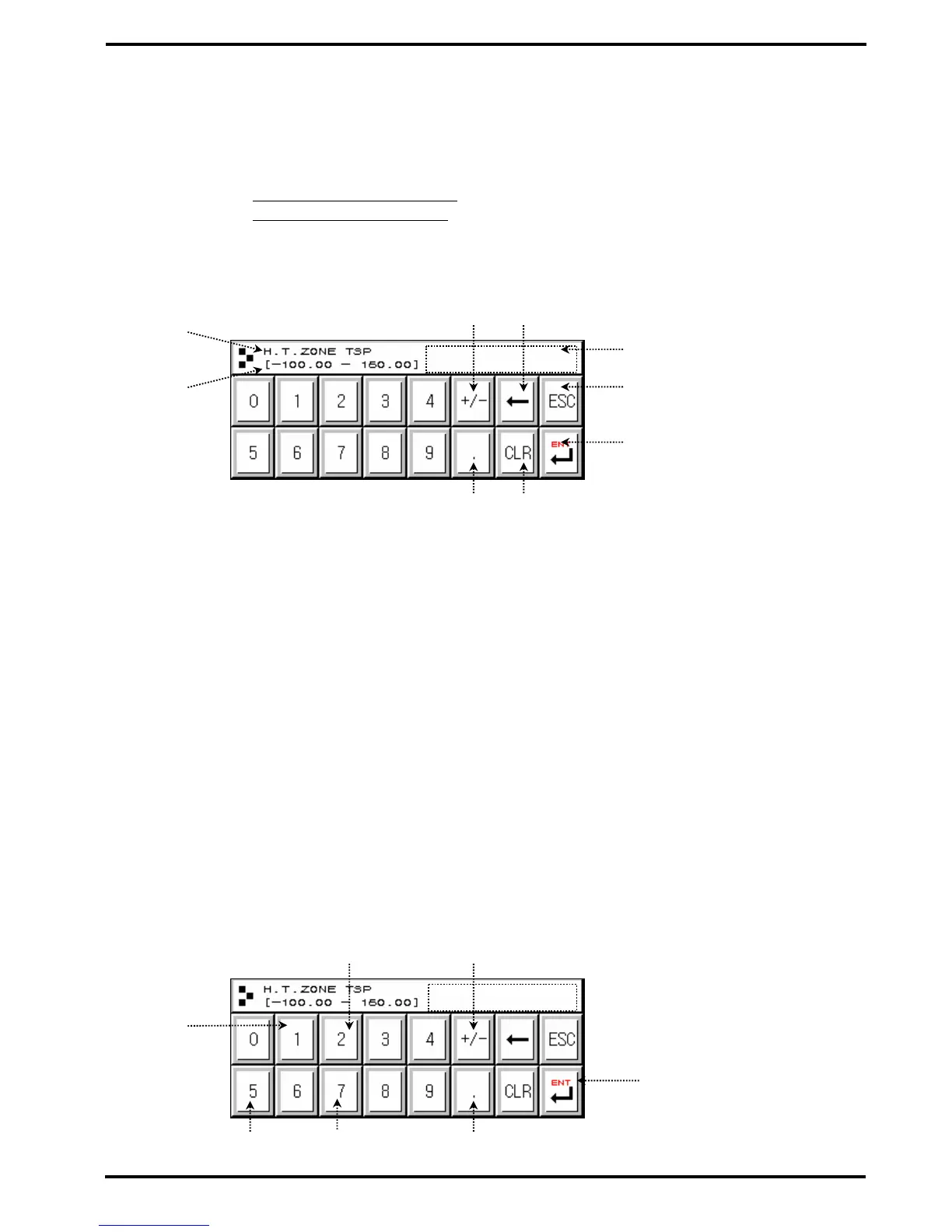

2.2.1 FUNCTION OF SETTING VALUE INPUT KEY
○
1 Shows parameter
○
2 Shows setting range
○
3 When exceeds setting range, error message (“-LIMIT ERR”) appears.
○
4 Use this button to stop entering data and return to the original screen
○
5 When erase all input data.
○
6 When enter decimal points..
○
7 When save entered data and restore the original screen.
○
8 When edit entered data, erase data one by one.
○
9 When enter signs(+/-).
2.2.2 HOW TO SET PARAMETER
▶ If you wish to setting value from-50.00 to -12.57, take the following steps.
→ Press setting value input button.
→ Press following numbers with such order (
○
1→
○
2 →
○
3→
○
4→
○
5→
○
6 ), and finally "ENT" key(
○
7)
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
2
○
5
○
4
○
7
○
3
○
1
○
6
