1st Edition of TEMP880S IM : Sep. 21. 2005 Page 39 / 101
2.10 PATTERN SET SCREEN
▶ This is a center of the screen which sets parameter related to program operation.

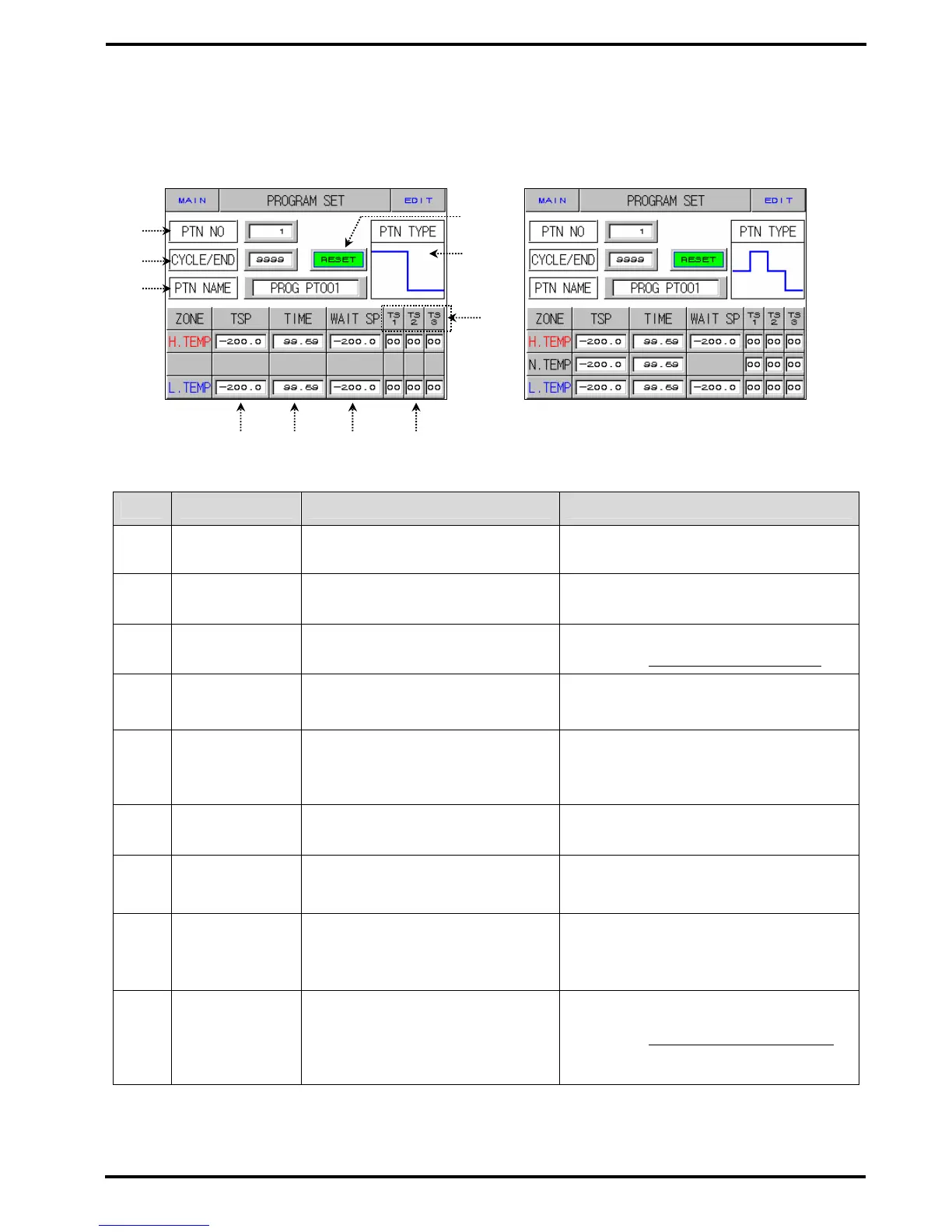

Diagram 2-30. Pattern Set Screen(Elevator Type) Diagram 2-31. Pattern Set Screen(Damper Type)
No. Instruction Contents Additional Explanation
○
1
Pattern Number Sets pattern number to program. ▶ 120 pattern
○
2
Cycle
Displays the number of repetition
of pattern concerned.
▶ 1 ~ 9999
○
3
Test Name This button sets up test name.
▶ Can input up to 10 letters.
▶ Refer to 2.10.3 Pattern Name Set.
○
4
Pattern End
Decide operation mode when
pattern ends.
▶ RESET : PT ENDs.
▶ HOLD : Hold at the last SEG.
○
5
Pattern Type
Indication
Indicates program pattern type.
The pattern type is displayed in
order when
○
5 is touched.
▶ As for ELEVATOR TYPE, indicated as
▶ two types, as for DAMPER TYPE,
▶ indicated as four types.
○
6
TSP Set
Sets program pattern target set
point(TSP).
▶ TSP : RL~RH
○
7
TIME Set
Sets program pattern operation
time.
○
8
Preheating/Prec
ooling Set
Sets set point(SP) for preheating
and precooling high, low, and
normal temperature rooms(as for
damper type).
▶ RL~RH
○
9
Time Signal Set
Sets time signal of segment to
operate.
Moves to time signal set screen
when
○
10 is touched.
▶ Refer to 2.10.2 Time Signal Setting.
○
4
○
1
○
5
○
2
○
3
○
6
○
7
○
8
○
9
○
10
