▶ There are four program pattern types in TEMP880S.
▶ As for Elevator Type, there are two types(Type-1,2), and as for Damper Type, there are
▶ four types(Type-1,2,3,4).
▶ You can set program pattern type by using ‘Pattern Set Screen((Diagram 2-29)-
○
5)’
▶ when setting program pattern.
Type-1 Type-2 Type-3 Type-4
○
1 As for program pattern type-1, it operates from ‘high temperature room → low
▶ temperature room’, and operates as much as the number of inputted repetition
▶ set(Cycle).(Refer to Diagram 2-32)

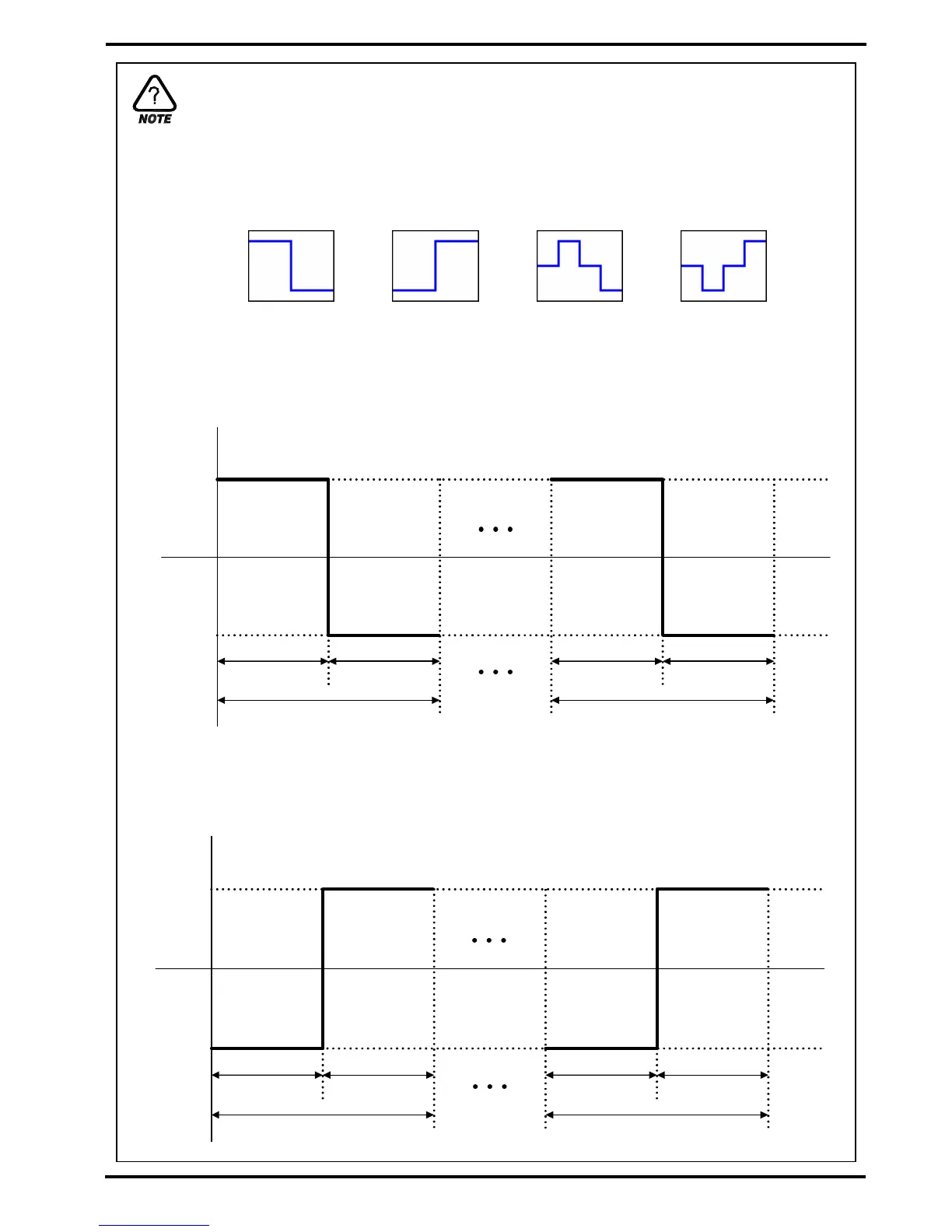

Diagram 2-32. Operation of Program Pattern Type-1
○
2 As for program pattern type-1, it operates from ‘low temperature room → high
temperature room’, and operates as much as the number of inputted repetition
set(Cycle).(Refer to Diagram 2-33)
Diagram 2-33. Operation of Program Pattern Type-2
Program Pattern Type
High Temp.
Room TSP
Temperature
(℃)
Low Temp.
Room TSP
CYCLE - 1
Time
High Temp.
Room TIME
Low Temp.
Room TIME
CYCLE - n
High Temp.
Room TSP
Tempera
Low Temp.
Room TSP
CYCLE - 1
Time
CYCLE - n
High Temp.
Room TIME
Low Temp.
Room TIME
High Temp.
Room TIME
Low Temp.
Room TIME
High Temp.
Room TIME
Low Temp.
Room TIME
