SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 9 / 101
1.4 Wiring
▶ Using a tester, make sure all power sources are turned off and wiring cable is not active.
▶ Do not touch the terminal when the wire is active due to potential electric shocks.
▶ Wire after the main power source is turned off.
1.4.1 HOW TO WIRE
1.4.1.1 Recommended Power Cable Feature
▶ Vinyl Insulated Wire KSC 3304 0.9~2.0 ㎟
1.4.1.2 Recommended Terminal Feature

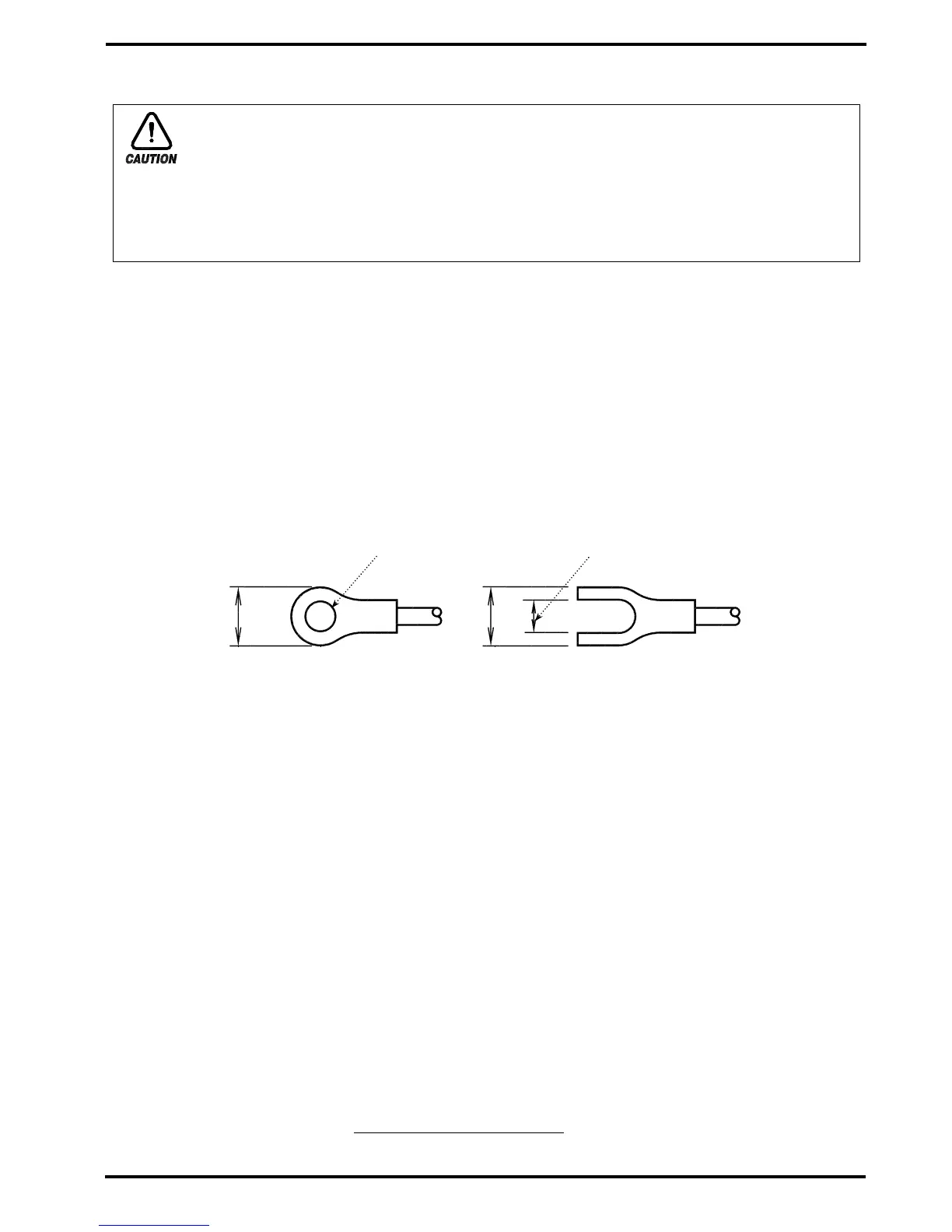

▶ Use compression terminal, which is suitable for M3.5 SCREW and adhered to insulated sleeve as the
▶ figure below.
1.4.1.3 Solution for Noise
■ Cause of noise
(A) Relay and contact
(B) Solenoid Coil, Solenoid Valve
(C) Power source line
(D) Induced load
(E) Inverter
(F) Commutator of motor
(G) Phase angle control SCR
(H) Wireless communicator
(I) Welding machine
(J) High voltage lighter
■ Solution for noise
■ Pay attention to the following matters to avoid the source of noise when you wire.
(A) Wire input circuit with space from the power and ground connection circuit.
(B) Use shield wire for noise from power cut induction.
(B) Please connect shield wire to a grounding connection terminal according to needs while
(B) avoiding 2 type grounding.
(C) Please lay wires after twisting the input wire with a narrow interval according to electronic
(C) inducement.
(D) Refer to the use of 1.4.2.9 supplementary RELAY
as you need.
Caution
Less than Φ5.8mm
Less than 5.8mm
Above 3.0mm Above Φ3.0mm
To Next Page
