SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 8 / 101

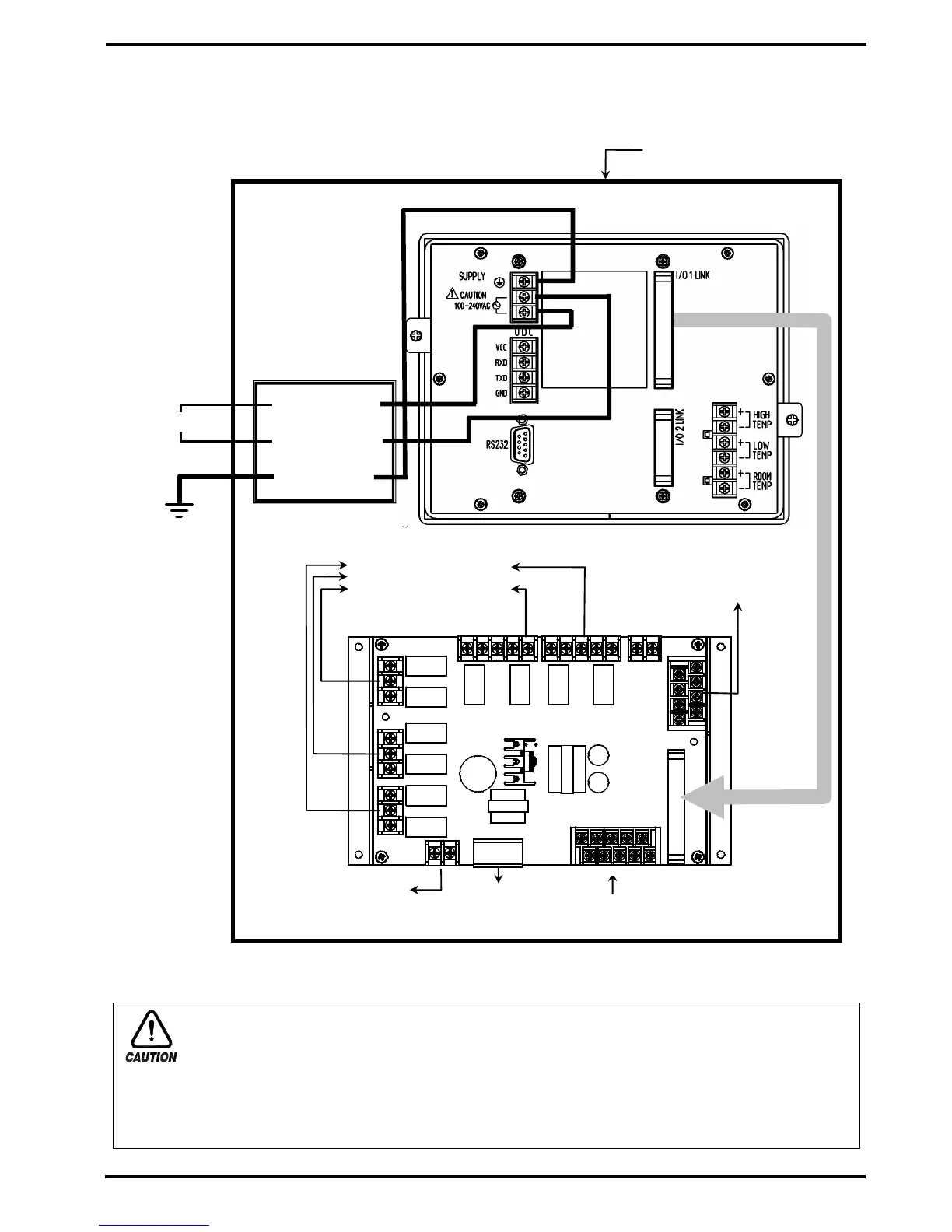

1.3.6 CUTOFF CIRCUIT INSTALLATION
▶ You must earth on the electric wiring of the power source part.
▶ Power source should be supplied to the inner part of TEMP 880S through the power cutoff.
▶ Use the power cutoff after it is earthed evenly.
Ground Connection
N2 ●
L2 ●
G2 ●
● N1
● L1
● G1
Contact Input
(접점입력:DI)
SSR/SCR, Recorder
(Control, Transmission Output)
Relay Contact Output
(Relay Contact Output)
Chamber Case
Circuit Breaker
(Circuit Breaker)
○
~
24V
(Use for IO2 option)
Power
To Next Page
