Samwon Tech TEMP880S User Manual

SAMWONTECH
1st Edition of TEMP880S IM : Sep. 21. 2005 Page 52 / 101
RH
RL
▶ Indicates section input revision at the temperature
▶ S.PV = Actual SensorTemperature, B.PV = Temperature after the revision, RL = Below
▶ input, RH = Above input
▶ Pn(P) = Standard Temperature, Pn(D) = Revision Temperature
(POINT n.DPV= Pn(P), POINT n.DDV= Pn(D))
(n = 1, 2, 3, 4, 5, 6, 7, 8 )
▶ B.PV at RL ~ POINT1
= S.PV + P1(D)
▶ B.PV at POINT1 ~ POINT2
= S.PV + ( S.PV – P1(P) ) X + P1(D)
▪
▪
▪
▪
▶ B.PV at POINT7 ~ POINT8
= S.PV + ( S.PV – P7(P) ) X + P7(D)
▶ B.PV at POINT8 ~ RH
= S.PV + P8(D)
P8
(
D
)
P2
(
D
)

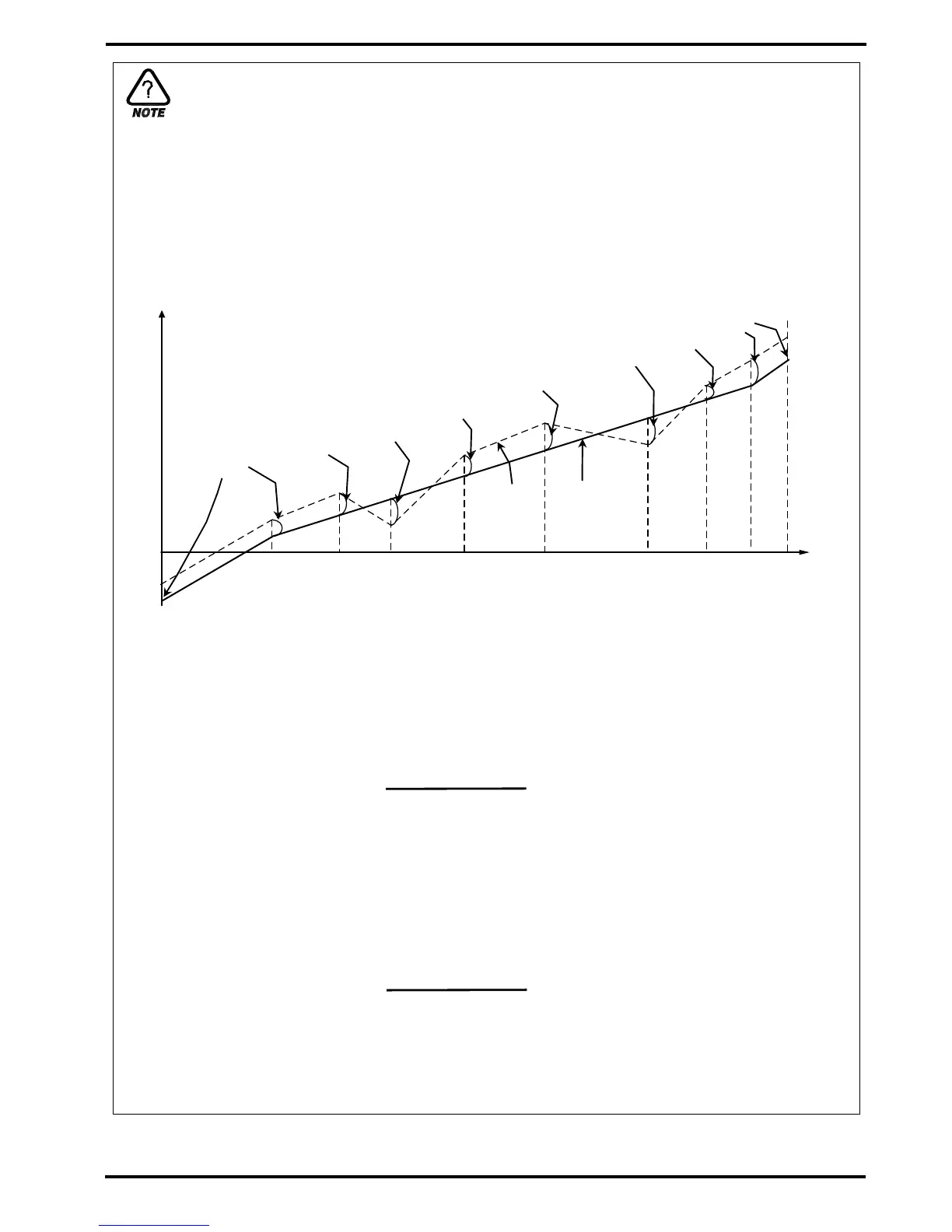

Sensor Input Revision Setting
P1(P)
P1
(
D
)
S.PV
B.PV
( P2(D) – P1(D) )
( P2(P) – P1(P) )
( P8(P) – P7(P) )
( P8(D) – P7(D) )
P2(P)
P3(P)
P4(P)
P5(P)
P8(P)
P7(P)
P6(P)
P3
(
D
)
P4
(
D
)
P5
(
D
)
P6
(
D
)
P7
(
D
)
