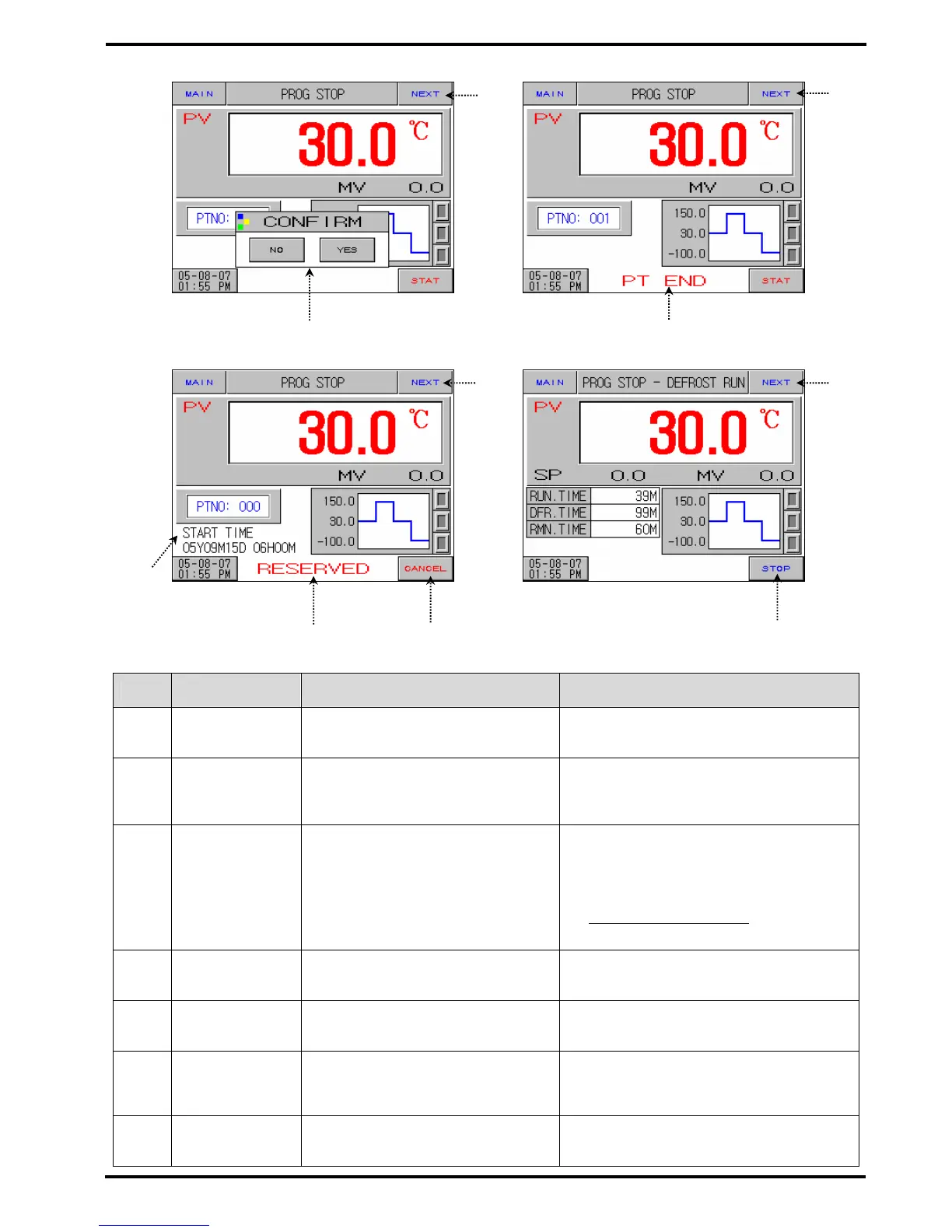

Diagram 2-5. Program Stop – Operation performing confirm Diagram 2-6. Program Stop – Pattern end
Diagram 2-7. Program Stop – Reserved operation Diagram 2-8. Program Stop – Defrost Operation
No. Instruction Contents Additional Explanation
○
1
Next Button Shifts to (Diagram2-4). ▶ Used only forTEMP880
○
2
Action Confirm
Window
Asks if you wish to perform
program operation.
▶ Operation starts if you press “YES”.
▶ If you press “NO”, it restores as
▶ diagram 2-3.
○
3
Pattern End Blinks when set program ends.
▶ Disappears if you press anywhere on
▶ the screen.
☞ Even though relay and time, which
☞ are “PTEND” parameter are set in
☞ 2.12.5 DO CONFIG SET
, relay is
☞ turned off when message disappears.
○
4
Start Time
Displays start time for reserved
operation.
○
5
Reservation Blinks if reserved operation is set.
▶ Set operation pattern numbers by
▶ pressing the button.
○
6
Cancel Button Cancels reserved operation state.
▶ If you press the button reserved
▶ operation is canceled and return as
▶ diagram 2-3.
○
7
Close Button Closes the defrost condition
○
2
○
3
○
1
○
5
○
6
○
4
○
1
○
1
○
1
○
7
