1st Edition of TEMP880S IM : Sep. 21. 2005 Page 56 / 101
2.12.2.2 TRANSMISSION OUPUT SET

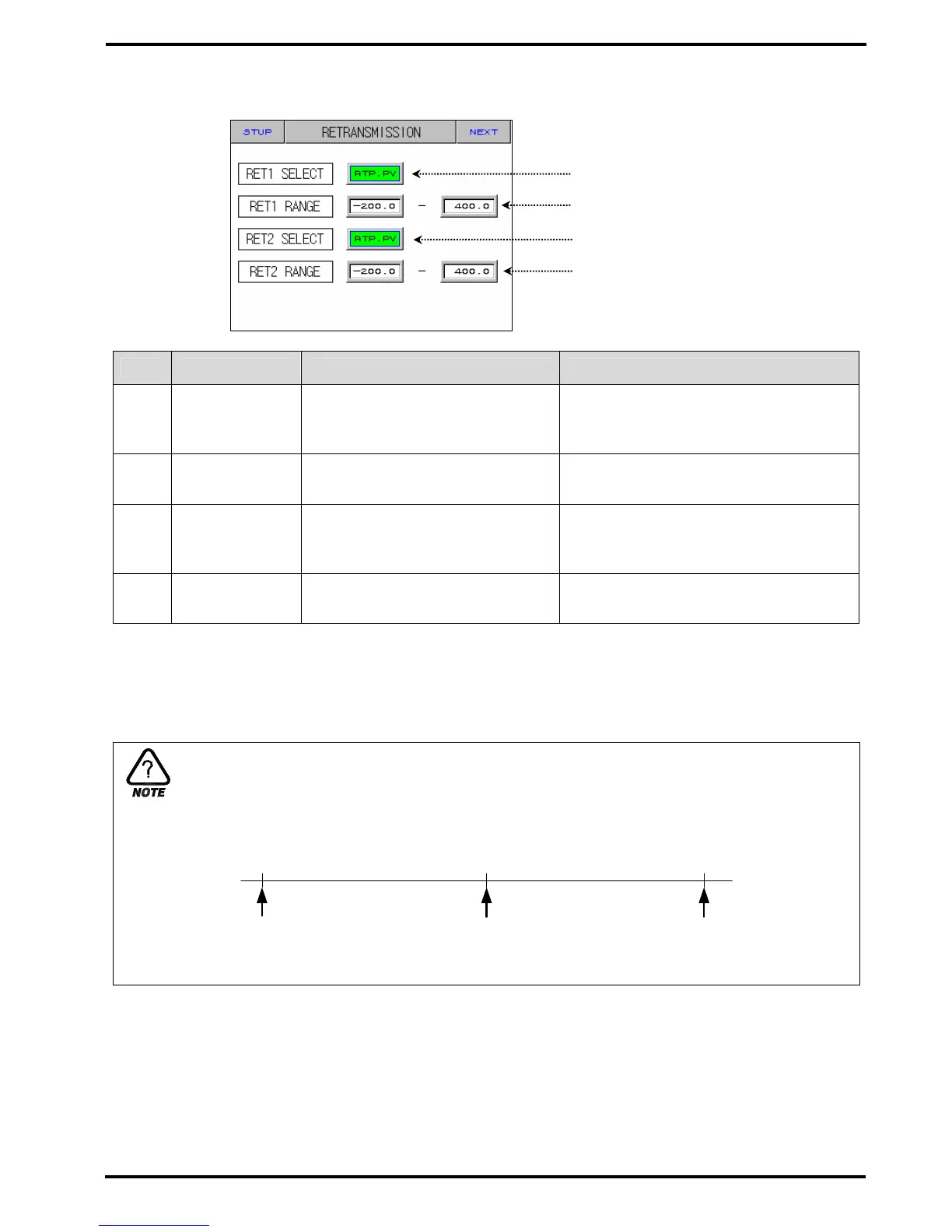

Diagram 2-50. Transmission Output Setting
No. Instruction Contents Additional Explanation
○
1
RET1. SLELCT Chooses transmission 1 kind.
▶ RTP.PV(laboratory PV)
▶ HTP.PV(high temperature room PV)
▶ LTP.PV(low temperature room PV)
○
2
RET1. RANGE
Sets the upper and lower limit of
output of transmission 1.
○
3
RET2. SLELCT Chooses transmission 1 kind.
▶ RTP.PV(laboratory PV)
▶ HTP.PV(high temperature room PV)
▶ LTP.PV(low temperature room PV)
○
4
RET2. RANGE
Sets the upper and lower limit of
output of transmission 1.
☞ Transmission output is displayed as 4~20mA. If you want to use transmission output as 1~5V,
☞ Please use it after attaching 250Ω RN-TYPE resistance (precision resistance) at the Transmission
☞ output terminal.
○
1
○
2
Output Based on Transmission Output Kind
4.0mA 12.0mA 20.0mA
RET RANGE LOW (RL + RH) / 2 RET RANGE HIGH
○
1
○
2
