-19-
Optical Parts Disassembly
LCD Panel/ Prism Ass’y

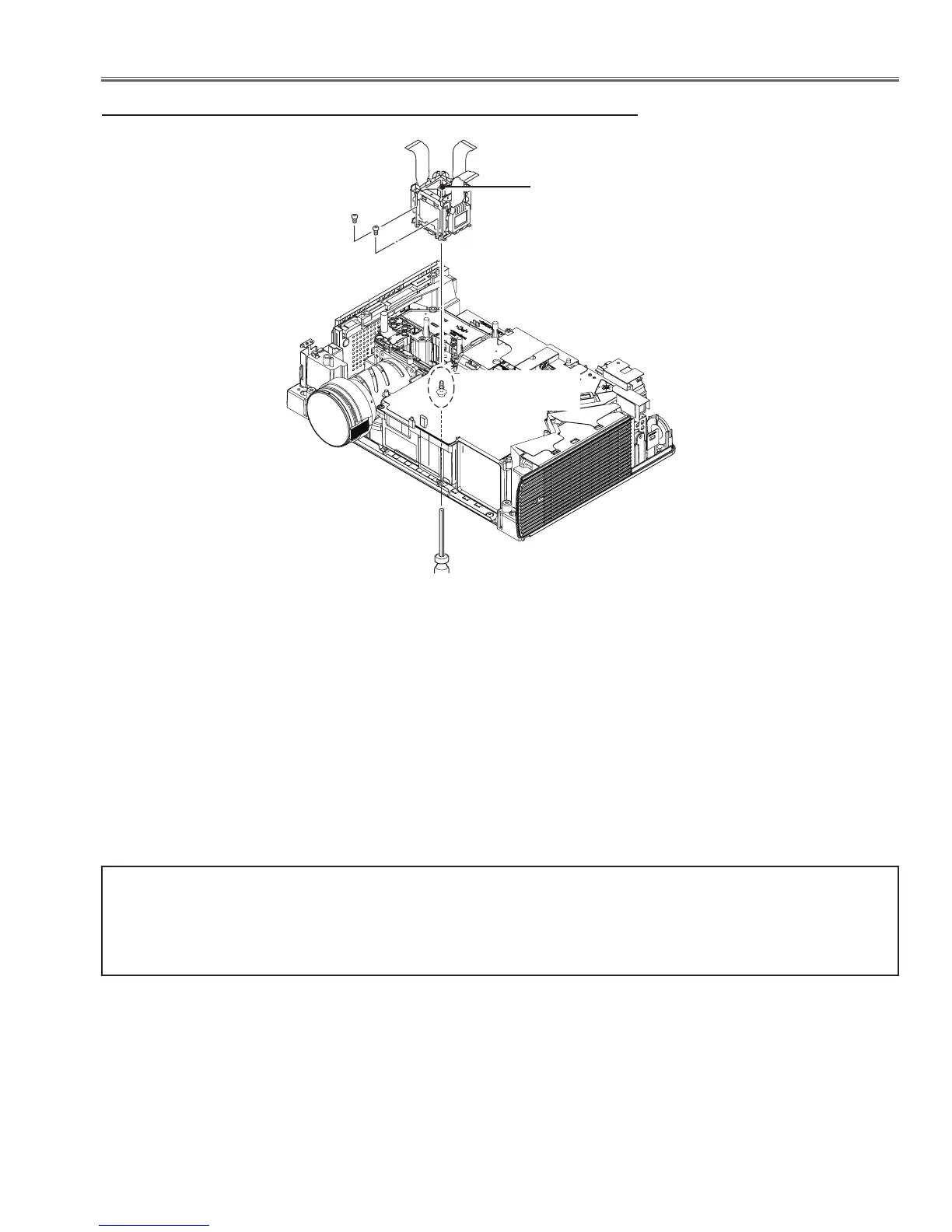

Fig.4-1
v LCD Panel/Prism Ass’y removal
(M2.5x4)x2
(M3x10)
(Bottom side)
Note on handling the LCD panel/prism assy
LCD panels, polarized glasses are very sensitive parts.
Never touch or wipe the surface. When removing the dust on the surface, use a commercial (inert gas) air spray
to remove them.
To Next Page
