Operators Handbook DCU3 – System
3., Function Selection and Inputs
BAEDCU3 - Rev. 4.6 - 0504 3 - 1
3 FUNCTION SELECTION AND INPUTS
3.1 Operating Terminal

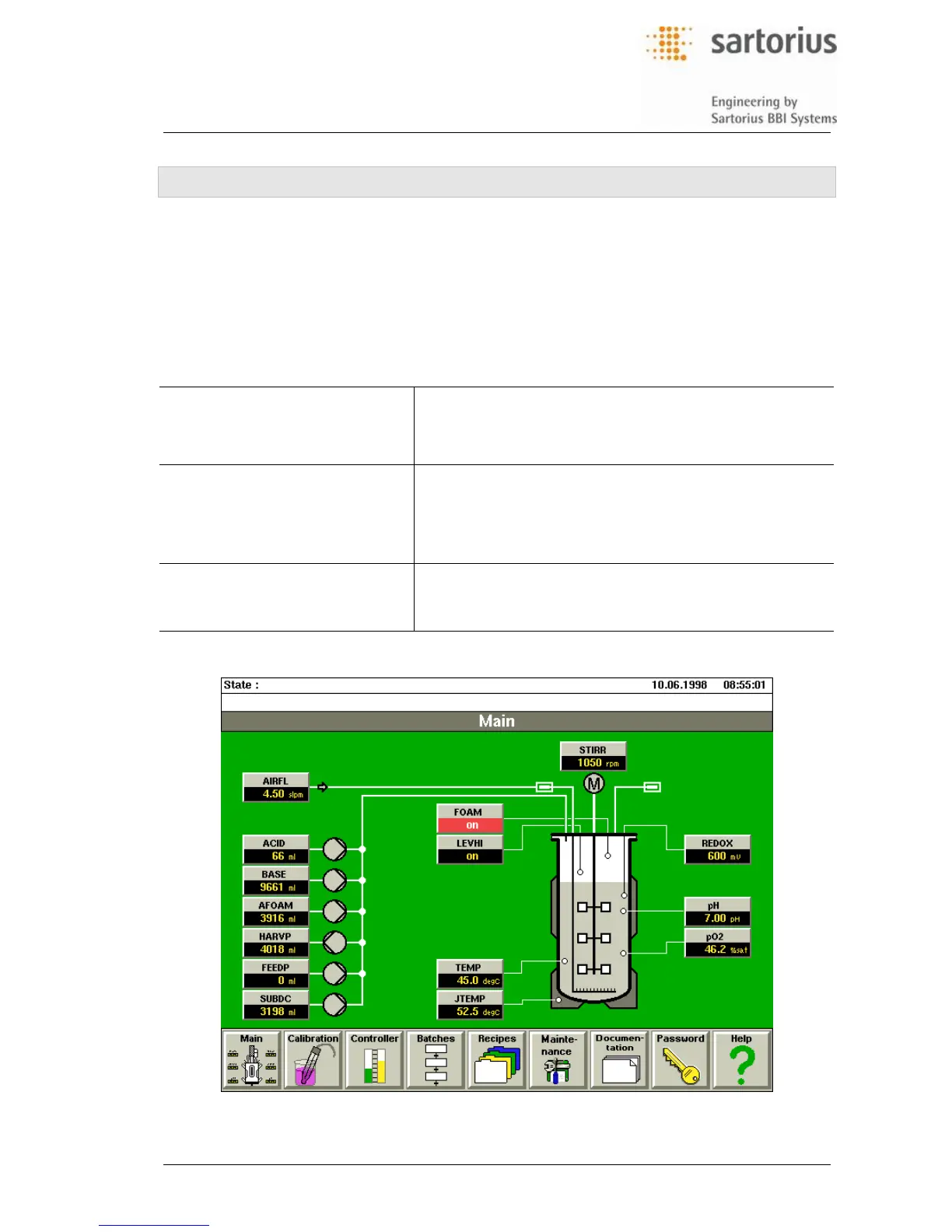

The DCU3 - system has an especially developed touch screen terminal for display of all process pa-
rameters and for operation of the entire unit. This „touch terminal“ has integrated „touch keys“ where
the operator can select the menus and the related subfunctions, enter data and select and switch-over
the modes for fermentor operation. In general the terminal is operated simply by pressing the screen
at the position of the displayed keys.
The touch terminal is adjustable to provide an optimum angle of vision:
DCU-Tower :
BIOSTAT
®
B-DCU
1. Unscrew the locating screw of the support at the rear of the
terminal a little.
2. Push the terminal backward at its upper edge or pull until
the display can be read best. Tighten the screw again.
DCU3-System in table top housing:
BIOSTAT
®
MD-DCU3, Q-DCU-
3, C/CT-DCU3
1. Push the locking device on right hand of the terminal (see
push button 4 in fig. 1-1)
2. Pull the terminal at its lower edge or push backward, until
you achieve an angle where the display can be read best.
3. Release the locking device to fix the arrangement.
Rack version of DCU3 systems :
BIOSTAT
®
D-DCU3, customized
pilot- and production fermentors
The possible way of setting the angle depends on the
mounting of the terminal in the rack.
3.1.1 Structure of the Touch Screen Display
