Satec System 295 User Manual

14
Installation
2.3 Input/Output Terminals
Connections to the PM295 are made via terminals located on the back of the
instrument as shown in Figure 2-3 and detailed in Figure 2-4.

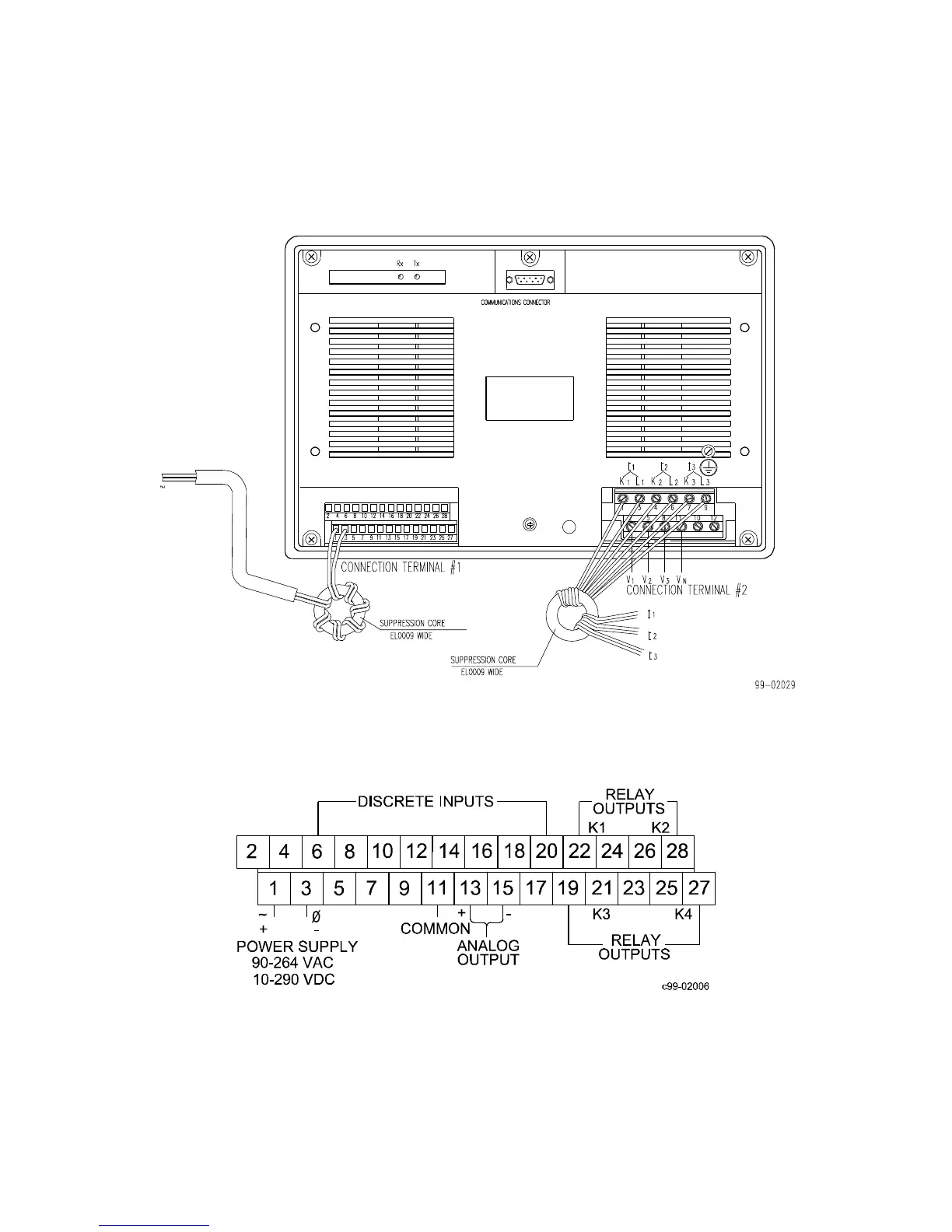

Figure 2-3 Location of Terminal Strips and Communications Connector
Figure 2-4 Connection Terminal #1
