SATEL Installation and Programming Manual 31
LED number
1 2 3 4
Output type
disabled
alarm I
alarm II
alarm I or II
no transmission confirmation
general fault
zone fault
other fault
general disablement
zone disablement
other disablement
reset

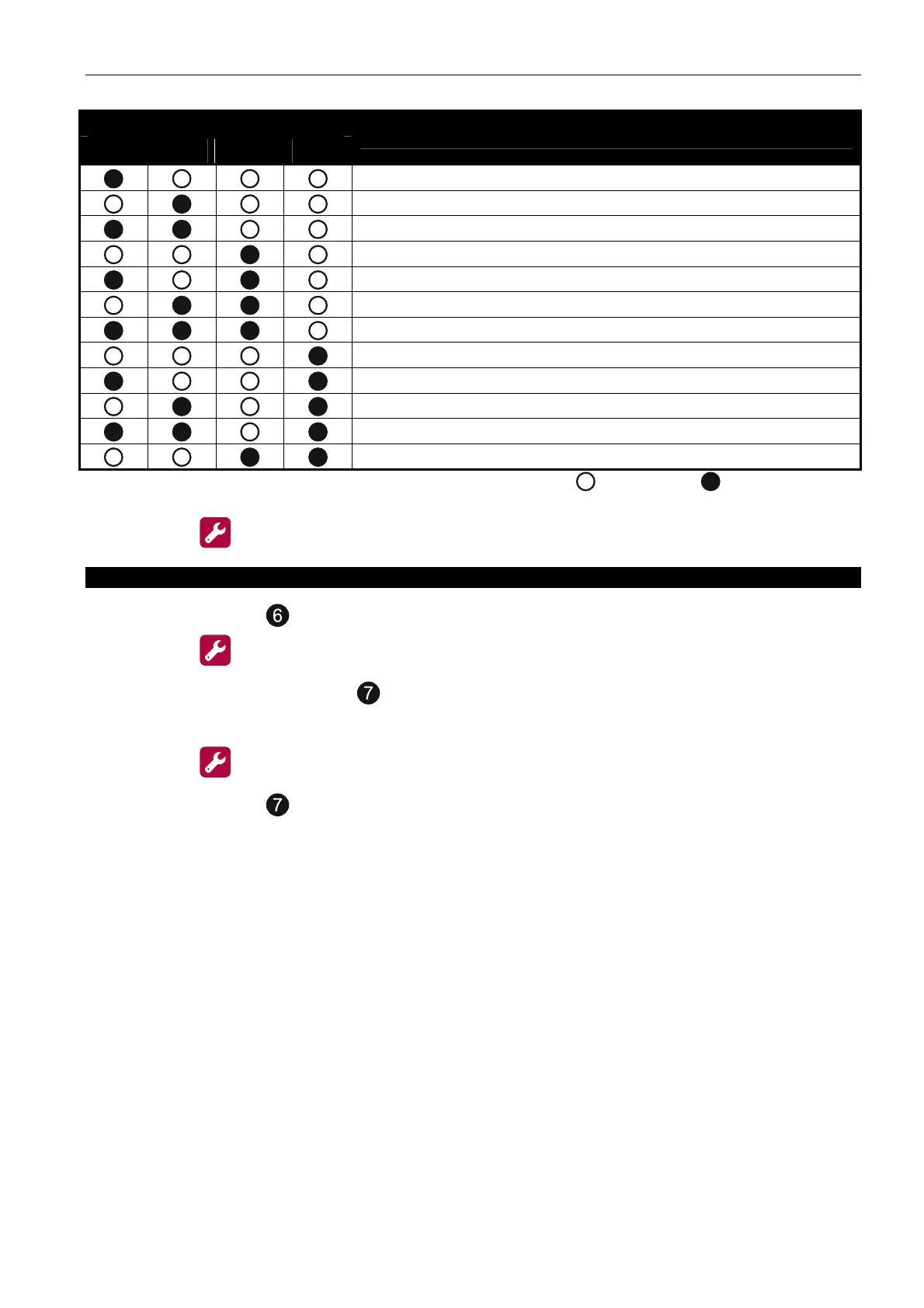

Table 3. Presentation of output types using the LEDs ( - LED OFF; - LED ON).
6. Press the button to save the changes made.
5. Programming the options for relay outputs
1. Using the buttons , select the function 5 (see: Table 1, p. 29).
2. Press the button.
3. Press one of the buttons to select the relay output for which options will be
programmed.
4. Press the button.
5. Using the buttons
, specify the suitable options:
 for the outputs of A LARM I, A LARM II, A LARM I OR II, Z ONE FAULT and Z ONE DISABLEMENT
type – the ON LEDs indicate which zones are selected;
 for the outputs of O
THER FAULT type – the ON LEDs indicate that the following options
are selected:
1 – power supply fault;
2 – sounder fault;
3 – routing output fault;
4 – other faults;
 for the outputs of O THER DISABLEMENT type – the ON LEDs indicate that the following
options have been selected:
1 – sounder disablement;
