SATO CL4NX Plus Driver Manual

79

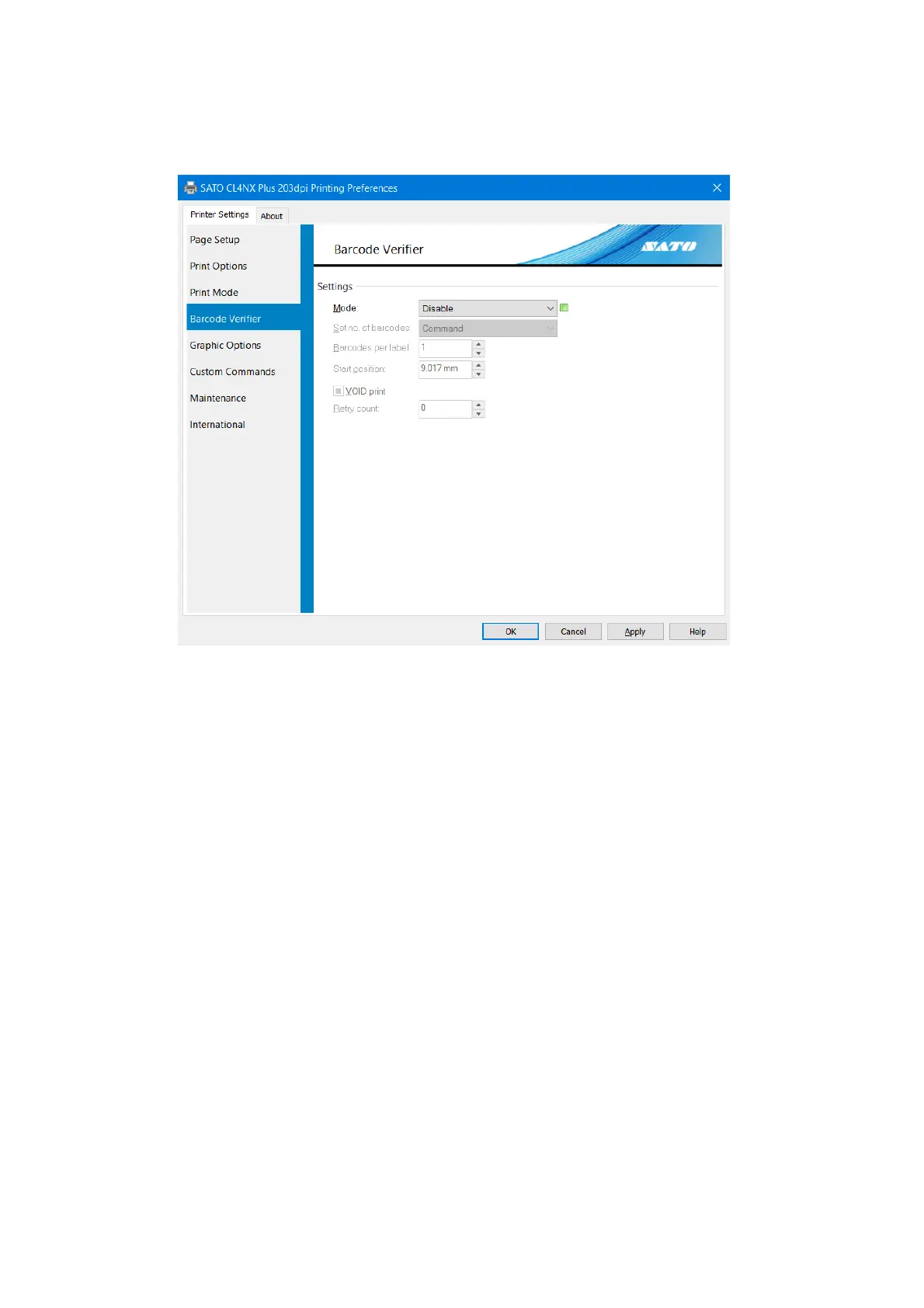

Barcode Verifier 4.4
When the optional barcode checker is installed to the product, the barcode checker scans the
barcodes immediately after printing and checks the accuracy of printed 1D barcode and 2D code.
Settings
[Mode]
Set the Barcode Verifier mode of operation.
Select [Disable] to disable the Barcode Verifier. Select [Readable] to check for readability of
barcodes. And select [Comparison] to check if the scanned results of the printed barcodes
match the barcode print data.
[Set no. of barcodes]
Specify how to set the maximum number of verified barcodes.
Select [Command] to set the maximum number using direct command to the barcode
checker. Select [Setting] to set the maximum number using printer driver interface.
[Barcodes per label]
Set the maximum number of verified barcodes per single printed label. The number is
limited to 10.
[Start position]
Adjust the position at which the barcode checker starts to scan. It starts reading each media
after the specified length passes from the printing start position. This setting can be used to
exclude first barcode(s) from the check target when multiple barcodes are printed on each
media.
[VOID print]
This check box enables printing of error marks on the media if a barcode reading error or
barcode comparison error occurs.
[Retry count]
Set how many times the product will try to print and check the same barcode after VOID
printing if a barcode reading error or barcode comparison error occurs.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
