SATO CL4NX Plus Driver Manual

80

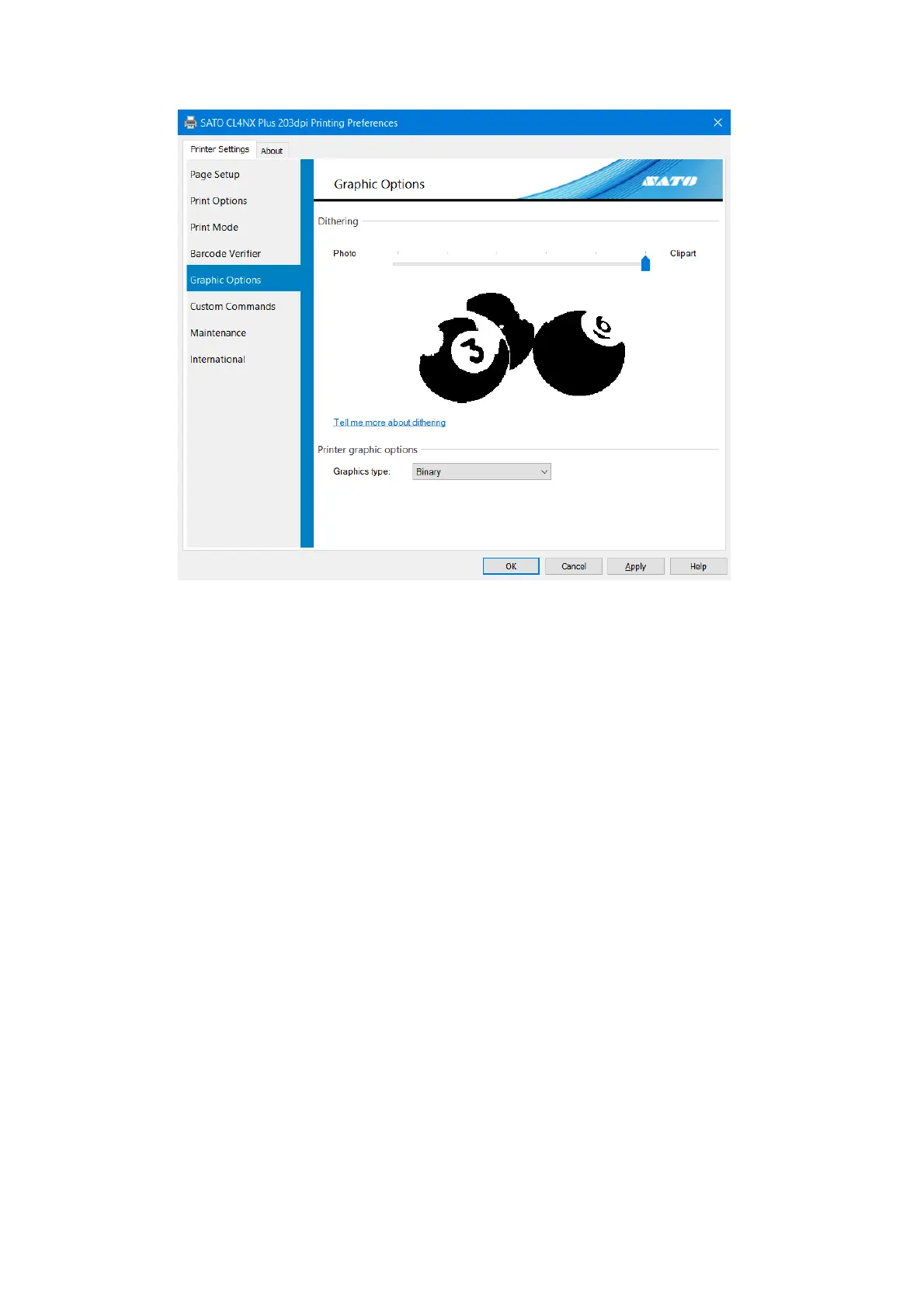

Graphic Options 4.5
Dithering
Dithering is the process of expressing image gradation (for color or grayscale images) in the
current image for thermal printers that can only express two colors, black and white, by
juxtaposing pixels with a certain algorithm to create the illusion of half-tone. Select the dithering
algorithm with this setting. You can view the result of applying the algorithm on the preview
image. The size of the sent data will also change according to the setting. When considering the
operational throughput, check the data size for each setting as well.
Printer graphic options
Specify the data format to send the graphics data to the product. Normally, specify [Binary].

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
