SATO CL4NX Plus Driver Manual

78

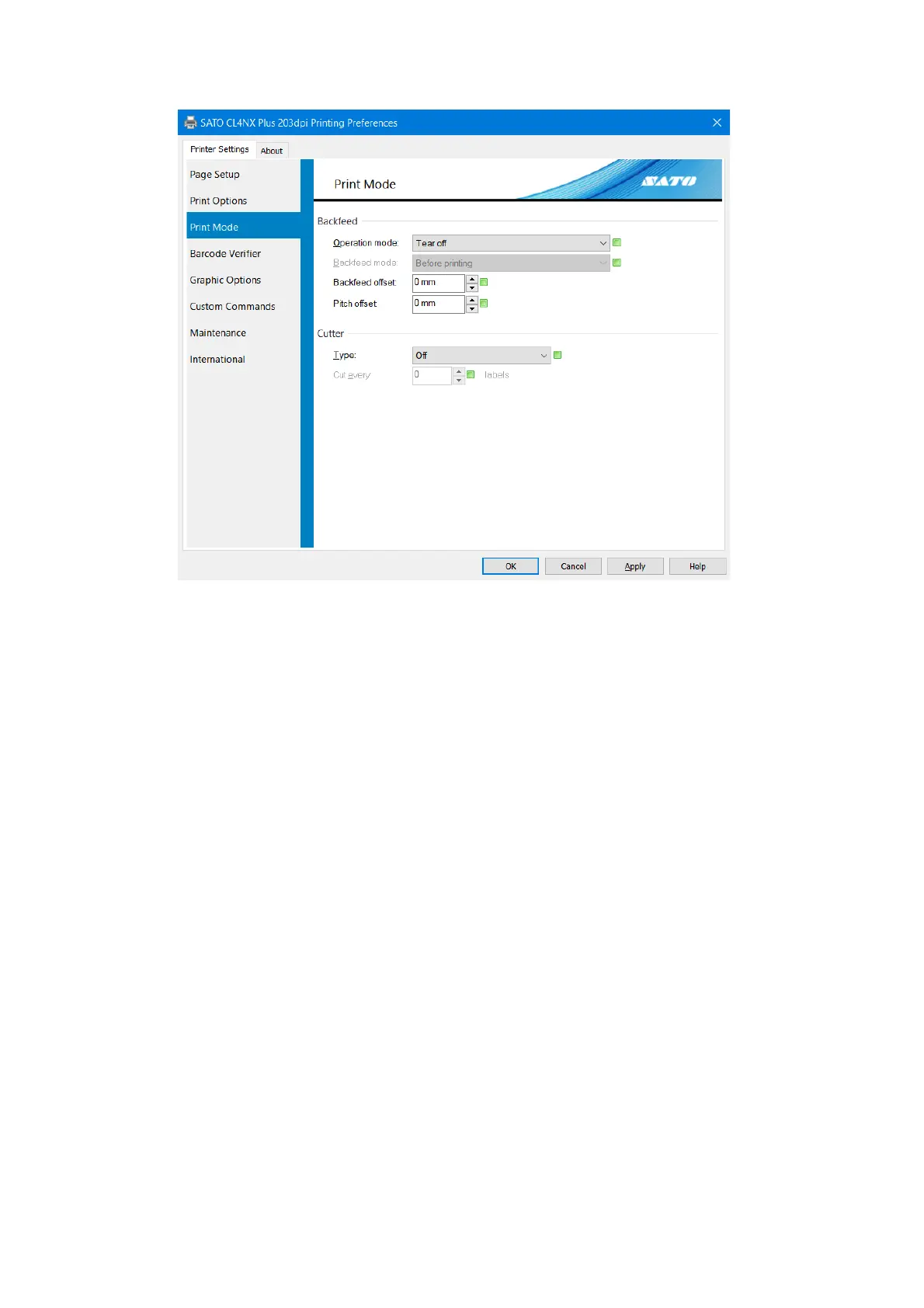

Print Mode 4.3
Backfeed
[Operation mode]
Set the print mode. The available settings vary depending on the product model and
installed options.
[Backfeed mode]
Specify the backfeed operation for the [Operation mode] setting. You can configure this
setting when [Operation mode] is set to [Cutter] or [Dispenser]. Select [No backfeed],
[Before printing] or [After printing].
[Backfeed offset]
You can finely adjust the media stop position during backfeed operation.
[Pitch offset]
You can finely adjust the media stop position during forward feed operation.
Cutter
[Type]
Specify how the cutter operates when [Operation mode] is set to [Cutter]. Select [Off],
[Batch], or [Every label]. If you select [Batch], the page is cut at the end of the print job.
[Cut every]
Specify the number of pages to cut at when [Type] is set to [Every label].

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
